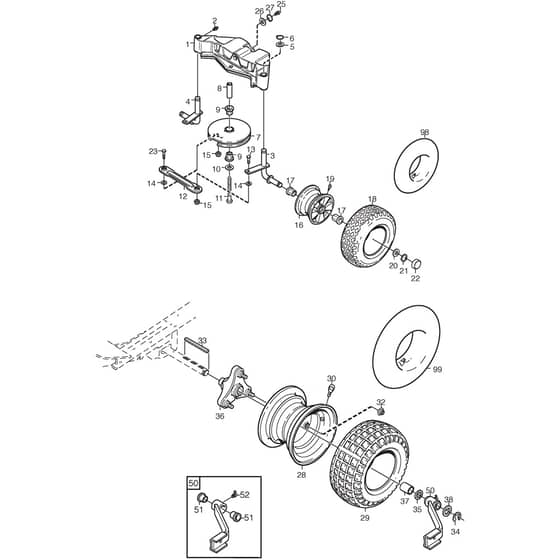

VILLA 12 - 2016-2020 - 2F2700141/S16 - Stiga Front Mower Wheel Diagram

Name: VILLA 12 - 2016-2020 - 2F2700141/S16 - Stiga Front Mower Wheel Diagram
SKU: villa_12_2f2700141_s16_wheel-group
Price: 1.29 GBP
Availability: InStock

Part No. villa_12_2f2700141_s16_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

VILLA 12 - 2016-2020 - 2F2700141/S16 - Stiga Front Mower Wheel Diagram

Description

Stiga VILLA 12 Parts Diagram

Product Name - VILLA 12

Model Year - 2016-2020

Model Type - V 301

Art.N - 2F2700141/S16

Engine Model - STIGA WM, 7250 Series

	Part No.	Details
1	MO1134-6703-01 Available to backorder	Rear Axle	£429.34 £357.78
2	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
3	MO1134-5009-02 Available to backorder	Stub Axle	£61.94 £51.62
4	MO1134-5009-01 Available to backorder	Right Stub Axle	£61.94 £51.62
5	MO9699-0088-02 Available to backorder	Washer	£2.22 £1.85
6	MO112609260/0 In stock	Seeger	£1.84 £1.53
7	MO387605001/0 Available to backorder	Steering Pulley	£77.44 £64.53
8	MO1134-5575-01 Available to backorder	Spacer	£7.62 £6.35
9	MO1134-9024-01 Available to backorder	Bearing Sats 4 st.kit of 4	£19.86 £16.55
10	MO112521390/0 Available to backorder	Washer	£1.84 £1.53
11	MO112694100/0 Available to backorder	Screw	£4.08 £3.40
12	MO1134-3247-05 Available to backorder	Tie Rod	£29.57 £24.64
13	MO112793301/0 Available to backorder	Screw L . 25 mm	£1.55 £1.29
99	MO9545-0203-00 Available to backorder	Inner Tube 16 X 6.50	£30.98 £25.82
