VILLA 12 - 2016-2020 - 2F2700141/S16 - Stiga Front Mower Electric System Diagram

Name: VILLA 12 - 2016-2020 - 2F2700141/S16 - Stiga Front Mower Electric System Diagram
SKU: villa_12_2f2700141_s16_electric_system-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

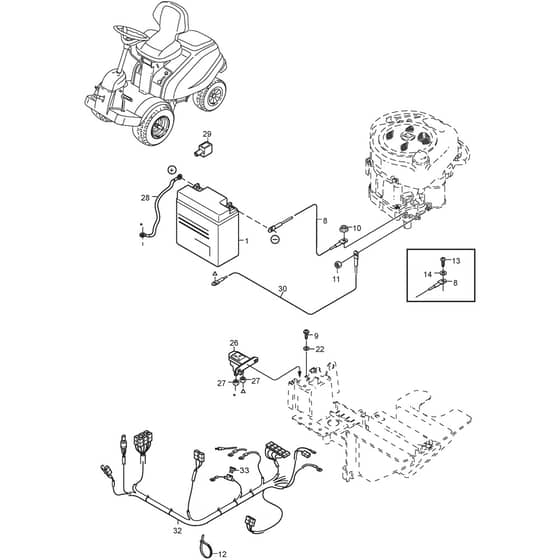

VILLA 12 - 2016-2020 - 2F2700141/S16 - Stiga Front Mower Electric System Diagram

Description

Stiga VILLA 12 Parts Diagram

Product Name - VILLA 12

Model Year - 2016-2020

Model Type - V 301

Art.N - 2F2700141/S16

Engine Model - STIGA WM, 7250 Series

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118120068/0 In stock	Battery	£113.48 £94.57
8	MO1134-2042-02 Available to backorder	Battery Cable L . 350 mm	£25.84 £21.53
9	MO112728697/0 In stock	Screw	£1.55 £1.29
10	MO112155000/0 In stock	Nut	£1.55 £1.29
11	MO112361005/0 Available to backorder	Nut 1.4 UNC	£4.22 £3.52
12	MO133320027/0 Available to backorder	Cable	£1.55 £1.29
22	MO112523040/0 In stock	Washer	£1.49 £1.24
26	MO118736112/0 In stock	Solenoid incl. 27	£38.00 £31.67
27	MO9743-5121-32 Available to backorder	Nut	£1.40 £1.17
28	MO1134-0234-02 Available to backorder	Battery Cable (+) L . 395 mm	£24.42 £20.35
29	MO1134-2310-01 Available to backorder	Guard Cap (+)	£8.87 £7.39
30	MO1134-4702-02 Available to backorder	Cable L . 480 mm	£22.69 £18.91
32	MO1134-3496-06 Available to backorder	Fuse (20A) Yellow 20A	£1.40 £1.17
