VILLA 12 - 2014-2015 - 13-2725-35 - Stiga Front Mower Hand Controls Diagram

Name: VILLA 12 - 2014-2015 - 13-2725-35 - Stiga Front Mower Hand Controls Diagram
SKU: villa_12_13_2725_35_hand_controls-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

VILLA 12 - 2014-2015 - 13-2725-35 - Stiga Front Mower Hand Controls Diagram

Description

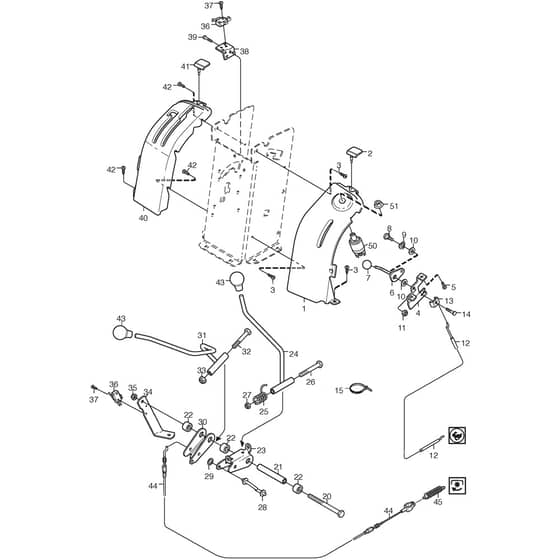

Stiga VILLA 12 Parts Diagram

Product Name - VILLA 12

Model Year - 2014-2015

Model Type - V 301

Art.N - 13-2725-35

Engine Model - STIGA WM, 7250 Series

Be the first to review this product

0 product questions

	Part No.	Details
4	MO1134-5357-01 Available to backorder	Bracket	£27.31 £22.76
5	MO9838-9516-12 Available to backorder	Screw	£2.12 £1.77
6	MO1134-5465-02 Available to backorder	Throttle Cable	£17.17 £14.31
7	MO1134-4078-01 Available to backorder	Knob	£5.48 £4.57
8	MO1134-0240-00 In stock	Screw	£8.80 £7.33
9	MO9694-0001-00 Available to backorder	Washer	£1.55 £1.29
10	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
12	MO1134-1597-13 Available to backorder	Throttle Cable	£17.95 £14.96
13	MO9500-9991-00 Available to backorder	Wire Clamp	£7.03 £5.86
15	MO9579-0003-00 Available to backorder	Cable Holder	£2.12 £1.77
20	MO9997-0812-02 Available to backorder	Screw	£1.69 £1.41
21	MO1134-5274-02 Available to backorder	Spacer	£9.37 £7.81
22	MO1134-3047-01 Available to backorder	Spacer	£7.74 £6.45
24	MO1134-5275-01 Available to backorder	Gearshift Lever	£32.38 £26.98
25	MO1134-5535-01 Available to backorder	Spring	£10.14 £8.45
28	MO1134-5268-01 Available to backorder	Shifter Rod	£22.10 £18.42
29	MO112604896/0 Available to backorder	Starlock	£1.55 £1.29
30	MO1134-5271-01 Available to backorder	Control Bracket	£35.18 £29.32
31	MO1134-5276-01 Available to backorder	Control Lever	£42.23 £35.19
32	MO112692080/0 Available to backorder	Screw	£1.55 £1.29
34	MO1134-5356-01 Available to backorder	Strut	£19.99 £16.66
35	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
36	MO9400-0360-01 Available to backorder	Microswitch	£8.17 £6.81
37	MO9840-7716-16 Available to backorder	Screw	£1.97 £1.64
38	MO1134-5358-01 Available to backorder	Switch Bracket	£29.56 £24.63
39	MO9943-0516-16 In stock	Screw	£1.22 £1.02
41	MO125260000/0 Available to backorder	Absorber	£2.95 £2.46
42	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
43	MO1134-2551-01 Available to backorder	Knob	£11.18 £9.32
44	MO1134-3573-06 Available to backorder	Pto Cable	£32.38 £26.98
45	MO1134-1242-02 Available to backorder	Spring	£10.20 £8.50
50	MO1134-4093-01 Available to backorder	Ignition Switch	£64.75 £53.96
51	MO1134-4749-01 Available to backorder	Nut	£5.42 £4.52
