VILLA 12 - 2014-2015 - 13-2725-35 - Stiga Front Mower Frame Diagram

Name: VILLA 12 - 2014-2015 - 13-2725-35 - Stiga Front Mower Frame Diagram
SKU: villa_12_13_2725_35_frame-group
Price: 1.05 GBP
Availability: InStock

Part No. villa_12_13_2725_35_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

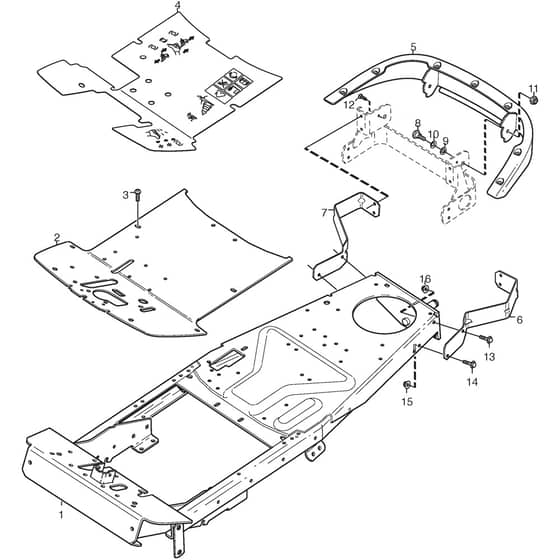

VILLA 12 - 2014-2015 - 13-2725-35 - Stiga Front Mower Frame Diagram

Description

Stiga VILLA 12 Parts Diagram

Product Name - VILLA 12

Model Year - 2014-2015

Model Type - V 301

Art.N - 13-2725-35

Engine Model - STIGA WM, 7250 Series

	Part No.	Details
1	MO387800059/0 Available to backorder	Frame	£773.57 £644.64
2	MO1134-5293-02 Available to backorder	Floor Plate Black line	£154.86 £129.05
3	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
5	MO1134-5453-03 Available to backorder	Rear Bumper (Grey) Grey	£197.09 £164.24
6	MO1134-6630-01 Available to backorder	Attachment-Lh	£40.75 £33.96
8	MO1134-0240-00 In stock	Screw	£8.80 £7.33
9	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
10	MO9694-0001-00 Available to backorder	Washer	£1.63 £1.36
11	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
12	MO9943-0516-16 In stock	Screw	£1.26 £1.05
13	MO9959-0820-16 Available to backorder	Screw L . 20 mm	£1.55 £1.29
14	MO9959-0825-16 Available to backorder	Screw L . 25 mm	£1.55 £1.29
16	MO112293201/0 In stock	Use 112293201.0	£1.70 £1.42
