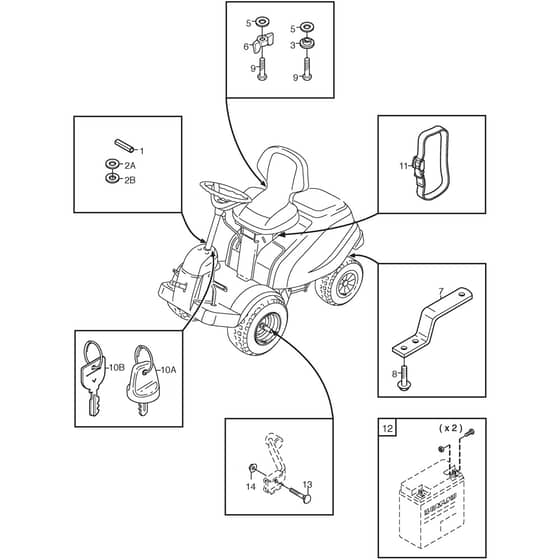

VILLA 12 - 2014-2015 - 13-2725-35 - Stiga Front Mower Assembly Parts Diagram

Description

Stiga VILLA 12 Parts Diagram

Product Name - VILLA 12

Model Year - 2014-2015

Model Type - V 301

Art.N - 13-2725-35

Engine Model - STIGA WM, 7250 Series

Be the first to review this product

0 product questions

	Part No.	Details
1	MO9595-0262-00 Available to backorder	Locating Pin	£1.69 £1.41
2	MO9699-0114-02 Available to backorder	Washer (2B) 1.0 mm	£1.97 £1.64
2	MO9699-0103-02 Available to backorder	Washer (2A) 0.5 mm	£2.12 £1.77
3	MO1134-4185-01 Available to backorder	Flange Washer	£6.47 £5.39
5	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
6	MO1134-4481-01 Available to backorder	Wing Nut	£1.55 £1.29
7	MO1134-4627-01 Available to backorder	Tow Bar	£17.10 £14.25
8	MO9959-0820-16 In stock	Screw	£1.55 £1.29
9	MO112793102/0 In stock	Screw	£1.55 £1.29
10	MO1134-4734-01 In stock	Ignition Key (10B)	£16.67 £13.89
11	MO1134-5245-01 Available to backorder	Battery Strap	£22.45 £18.71
12	MO1134-6113-01 Available to backorder	Screw	£12.82 £10.68
13	MO9898-1035-16 Available to backorder	Screw	£2.81 £2.34
14	MO9739-1031-22 In stock	Nut	£1.97 £1.64
