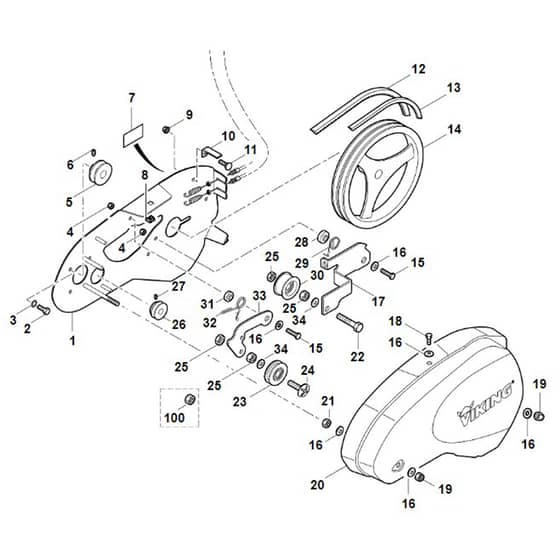

Viking VH500 - Drive - Parts Diagram

Part No. vh500_drive-group
Viking VH500 - Drive - Parts Diagram
Viking VH500 - Drive - Parts Diagram

Description

Viking VH500 - Drive - Parts Diagram

Ref. Img. Part No. Details
  2 Hexagon head screw 5/16
Hexagon head screw 5/16
ST9008 319 9035
Available to backorder
Hexagon head screw 5/16"x5/8"
£1.06 £0.88

  3 Shakeproof washer 8.4
Shakeproof washer 8.4
ST9330 630 0180
Available to backorder
Shakeproof washer 8.4
£0.35 £0.29

  4 Lock nut M8
Lock nut M8
ST9214 320 1105
In stock
Lock nut M8
£0.68 £0.57

  9 Hexagon nut M6
Hexagon nut M6
ST9220 260 8490
Available to backorder
Hexagon nut M6
£0.46 £0.38

  11 Flat head screw M6x16
Flat head screw M6x16
ST9027 068 1280
Available to backorder
Flat head screw M6x16
£0.91 £0.76

  12 V-belt
V-belt
ST6227 711 5001
Available to backorder
V-belt
£31.18 £25.98

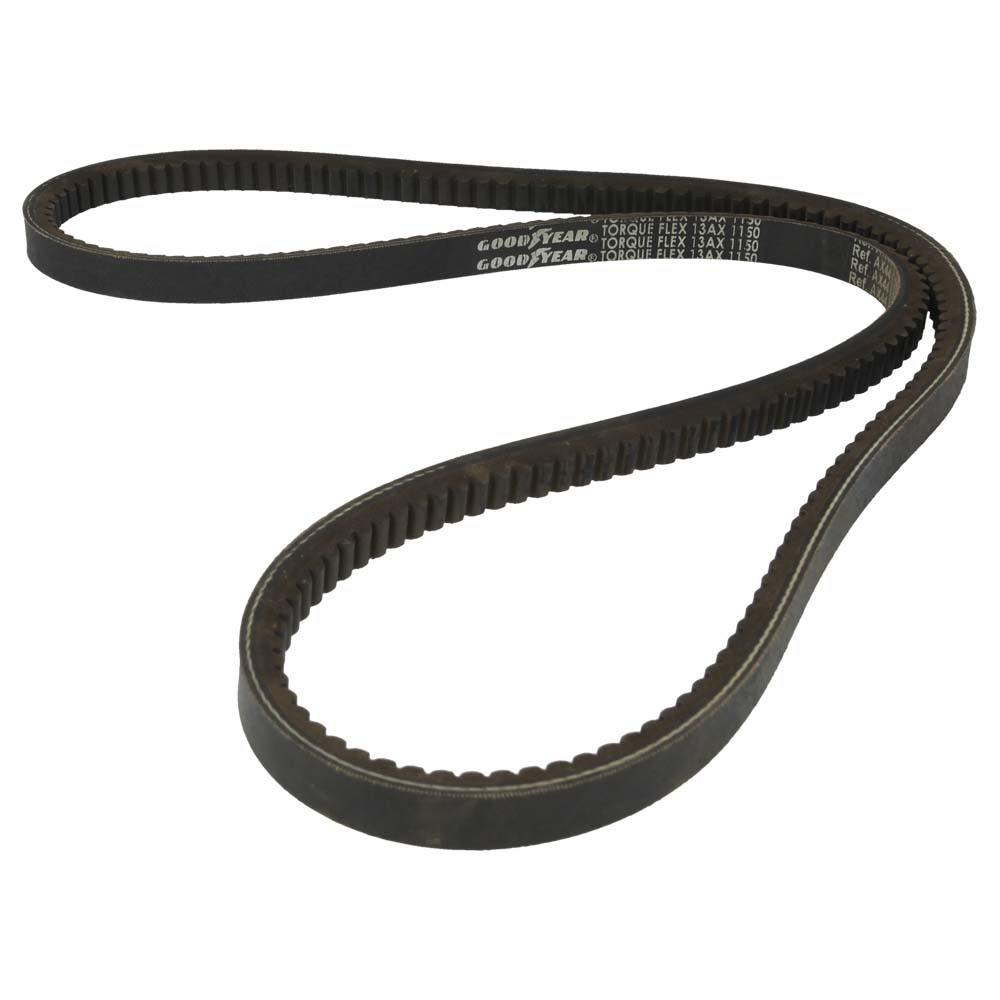

  13 V-belt
V-belt
ST6227 711 5010
Available to backorder
V-belt
£39.02 £32.52

  15 Hexagon head screw M8x25
Hexagon head screw M8x25
ST9008 318 1830
Available to backorder
Hexagon head screw M8x25
£1.26 £1.05

  15 Hexagon head screw M8x25
Hexagon head screw M8x25
ST9008 319 1830
Available to backorder
Hexagon head screw M8x25
£1.26 £1.05

  16 Washer 84
Washer 84
ST9307 021 0180
Available to backorder
Washer 84
£0.35 £0.29

  18 Hexagon head screw M8x16
Hexagon head screw M8x16
ST9008 318 1780
Available to backorder
Hexagon head screw M8x16
£1.03 £0.86

  19 Hexagon nut M8
Hexagon nut M8
ST9212 260 1100
In stock
Hexagon nut M8
£0.72 £0.60

  21 Hexagon nut M8
Hexagon nut M8
ST9210 259 1100
Available to backorder
Hexagon nut M8
£0.68 £0.57

  22 Hexagon head screw M12x30
Hexagon head screw M12x30
ST9008 319 2980
Available to backorder
Hexagon head screw M12x30
£1.68 £1.40

  23 Idler pulley
Idler pulley
ST6227 710 5000
Available to backorder
Idler pulley
£10.14 £8.45

  25 Hexagon nut M12
Hexagon nut M12
ST9208 260 1400
Available to backorder
Hexagon nut M12
£0.91 £0.76

  29 Spring
Spring
ST6226 711 9100
Available to backorder
Spring
£1.94 £1.62

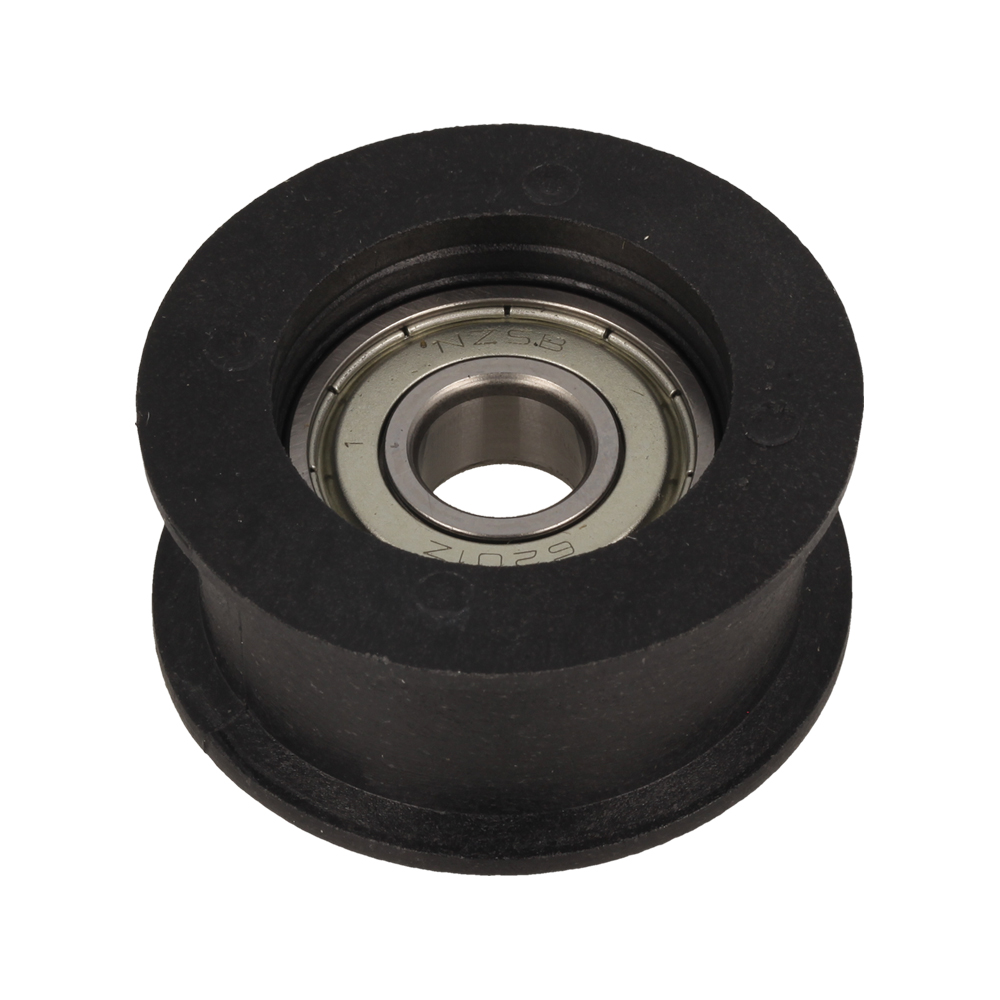

  30 Idler pulley
Idler pulley
ST6226 710 5000
Available to backorder
Idler pulley
£10.46 £8.72

  32 Spring
Spring
ST6227 711 9100
Available to backorder
Spring
£2.03 £1.69

  34 Washer 13
Washer 13
ST9291 020 0220
Available to backorder
Washer 13
£0.46 £0.38

  100 Hexagon nut M12
Hexagon nut M12
ST9210 260 1400
Available to backorder
Hexagon nut M12
£1.26 £1.05


Description

Viking VH500 - Drive - Parts Diagram
