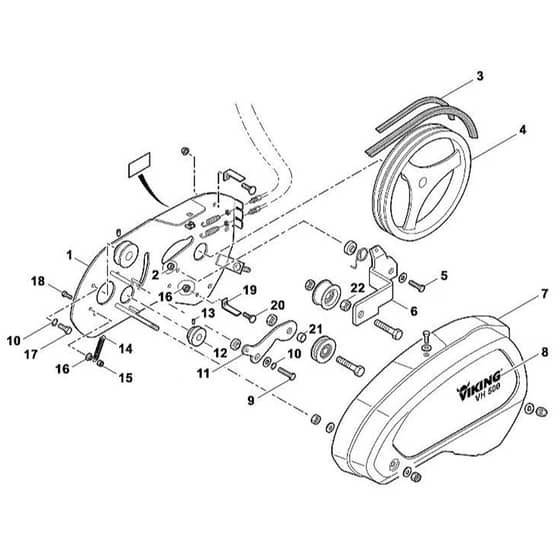

Viking VH500 - Drive 2 - Parts Diagram

Part No. vh500_drive_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking VH500 - Drive 2 - Parts Diagram

Viking VH500 - Drive 2 - Parts Diagram

Description

Viking VH500 - Drive 2 - Parts Diagram

Ref.		Img.	Part No.	Details
	2		ST9214 320 1105 In stock	Lock nut M8		£0.68 £0.57
	5		ST9008 319 1830 Available to backorder	Hexagon head screw M8x25		£1.26 £1.05
	10		ST9330 630 0180 Available to backorder	Shakeproof washer 8.4		£0.35 £0.29
	13		ST9132 216 1250 Available to backorder	Grub screw M6x10		£0.79 £0.66
	14		ST6227 711 6400 Available to backorder	Tension spring		£3.19 £2.66
	15		ST9212 260 0900 In stock	Hexagon nut M6		£0.48 £0.40
	16		ST9220 260 8490 Available to backorder	Hexagon nut M6		£0.46 £0.38
	17		ST9008 319 9035 Available to backorder	Hexagon head screw 5/16"x5/8"		£1.06 £0.88
	18		ST9008 319 1320 Available to backorder	Hexagon head screw M6x20		£0.91 £0.76
	20		ST9027 068 1280 Available to backorder	Flat head screw M6x16		£0.91 £0.76
	22		ST9210 261 1400 In stock	Hexagon nut M12		£1.31 £1.09

Description

Viking VH500 - Drive 2 - Parts Diagram
