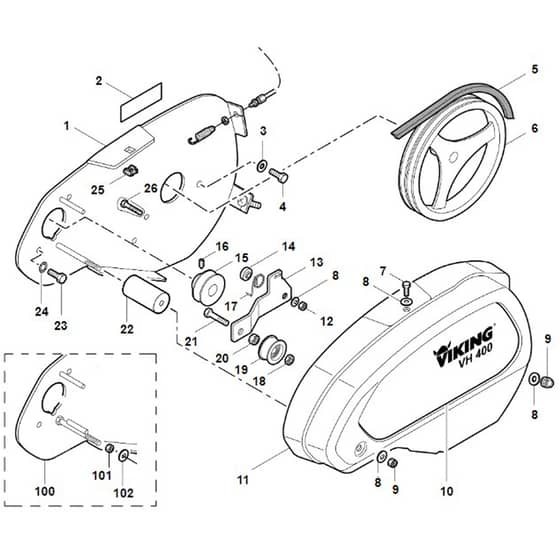

Viking VH400 - Drive 2 - Parts Diagram

Part No. vh400_drive_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking VH400 - Drive 2 - Parts Diagram

Viking VH400 - Drive 2 - Parts Diagram

Description

Viking VH400 - Drive 2 - Parts Diagram

Ref.		Img.	Part No.	Details
	3		ST9291 020 0180 Available to backorder	Washer 84		£0.35 £0.29
	4		ST9008 318 1800 Available to backorder	Hexagon head screw M8x20		£1.03 £0.86
	7		ST9008 318 1780 Available to backorder	Hexagon head screw M8x16		£1.03 £0.86
	9		ST9212 260 1100 In stock	Hexagon nut M8		£0.72 £0.60
	12		ST9214 320 1105 In stock	Lock nut M8		£0.68 £0.57
	17		ST6226 711 9100 Available to backorder	Spring		£1.94 £1.62
	18		ST9208 260 1400 Available to backorder	Hexagon nut M12		£0.91 £0.76
	19		ST6226 710 5000 Available to backorder	Idler pulley		£10.46 £8.72
	20		ST9210 261 1400 In stock	Hexagon nut M12		£1.31 £1.09
	21		ST9008 319 2980 Available to backorder	Hexagon head screw M12x30		£1.68 £1.40
	23		ST9008 319 9035 Available to backorder	Hexagon head screw 5/16"x5/8"		£1.06 £0.88
	24		ST9330 630 0180 Available to backorder	Shakeproof washer 8.4		£0.35 £0.29
	26		ST9008 319 1830 Available to backorder	Hexagon head screw M8x25		£1.26 £1.05
	101		ST9210 259 1100 Available to backorder	Hexagon nut M8		£0.68 £0.57
	102		ST9307 021 0180 Available to backorder	Washer 84		£0.35 £0.29

Description

Viking VH400 - Drive 2 - Parts Diagram
