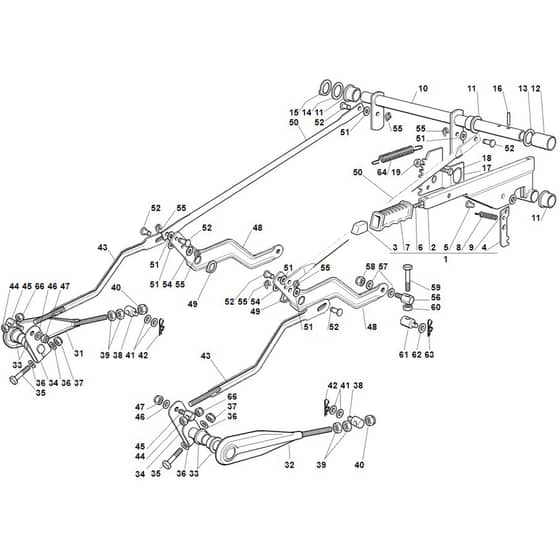

Viking MT785 S - Height Adjustment - Parts Diagram

Viking MT785 S - Height Adjustment - Parts Diagram

Part No. mt785_s_height_adjustment-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT785 S - Height Adjustment - Parts Diagram

Viking MT785 S - Height Adjustment - Parts Diagram

Description

Viking MT785 S - Height Adjustment - Parts Diagram

Ref.		Img.	Part No.	Details
	9		ST9991 003 0548 Available to backorder	Clamping ring 8		£1.72 £1.43
	14		ST9291 021 0330 Available to backorder	Washer 21		£0.91 £0.76
	15		ST9455 621 2150 In stock	Circlip 20x1.2		£0.95 £0.79
	16		ST9386 620 2710 Available to backorder	Roll pin 5x32		£0.79 £0.66
	18		ST9008 318 1780 Available to backorder	Hexagon head screw M8x16		£1.03 £0.86
	35		ST9007 319 1961 Available to backorder	Hexagon head screw M8x55-8.8		£1.94 £1.62
	36		ST9291 020 0180 Available to backorder	Washer 84		£0.35 £0.29
	37		ST9212 260 1100 In stock	Hexagon nut M8		£0.72 £0.60
	39		ST9210 260 1300 Available to backorder	Hexagon nut M10		£0.91 £0.76
	40		ST9212 260 1300 Available to backorder	Hexagon nut M10		£0.91 £0.76
	49		ST9455 621 2060 Available to backorder	Circlip 19x1.2		£0.94 £0.78
	62		ST9307 020 0200 Available to backorder	Washer 105		£0.46 £0.38
	66		ST9210 259 1100 Available to backorder	Hexagon nut M8		£0.68 £0.57

Description

Viking MT785 S - Height Adjustment - Parts Diagram
