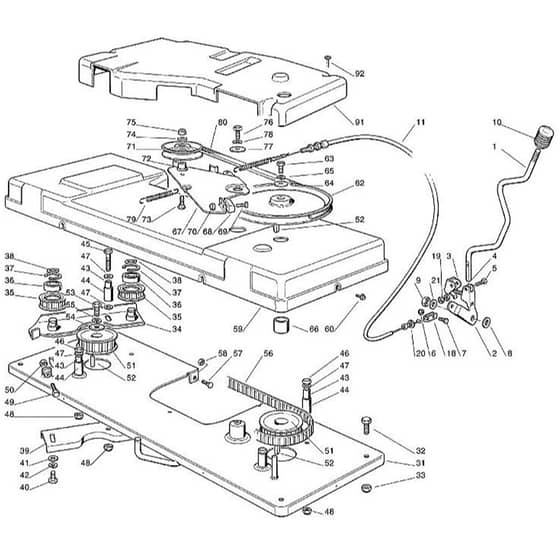

Viking MT780 (1999) - Mowing Deck - Parts Diagram

Name: Viking MT780 (1999) - Mowing Deck - Parts Diagram
SKU: mt780_1999_mowing_deck-group
Price: 0.29 GBP
Availability: InStock

Part No. mt780_1999_mowing_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT780 (1999) - Mowing Deck - Parts Diagram

Description

Viking MT780 (1999) - Mowing Deck - Parts Diagram

	Part No.	Details
5	ST9007 319 1370 Available to backorder	Hexagon head screw M6x30	£1.26 £1.05
6	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
7	ST9008 319 1320 Available to backorder	Hexagon head screw M6x20	£0.91 £0.76
9	ST9214 320 1105 In stock	Lock nut M8	£0.68 £0.57
19	ST9210 260 0900 Available to backorder	Hexagon nut M6	£0.46 £0.38
20	ST9291 021 0140 In stock	Washer 6.4	£0.37 £0.31
21	ST9307 021 0180 Available to backorder	Washer 84	£0.35 £0.29
32	ST9008 319 1780 Available to backorder	Hexagon head screw M8x16	£1.03 £0.86
36	ST9503 003 6527 Available to backorder	Grooved ball bearing 6202-2RS	£9.46 £7.88
37	ST9456 621 3860 Available to backorder	Circlip 35x1.5	£1.37 £1.14
38	ST9455 621 1520 In stock	Circlips DIN471-15x1	£0.95 £0.79
40	ST9008 319 1800 Available to backorder	Hexagon head screw M8x20	£1.03 £0.86
41	ST9291 021 0180 Available to backorder	Washer 8.4	£0.35 £0.29
42	ST9321 630 0180 Available to backorder	Spring washer 8	£1.03 £0.86
45	ST9007 319 1961 Available to backorder	Hexagon head screw M8x55-8.8	£1.94 £1.62
46	ST9007 319 1900 Available to backorder	Hexagon head screw M8x40	£1.46 £1.22
48	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
49	ST9008 319 1970 Available to backorder	Hexagon head screw M8x60	£2.05 £1.71
50	ST9210 260 1100 In stock	Hexagon nut M8	£0.68 £0.57
56	ST6124 764 0900 Available to backorder	Toothed belt	£133.08 £110.90
57	ST9027 068 1400 Available to backorder	Flat head screw M6x40	£1.28 £1.07
60	ST9107 021 5002 Available to backorder	Self-tapping screw 4.8x13	£0.49 £0.41
69	ST9041 116 1020 Available to backorder	Pan head screw M5x20	£0.48 £0.40
70	ST9212 260 0700 Available to backorder	Hexagon nut M5	£0.35 £0.29
73	ST9027 068 1900 Available to backorder	Flat head screw M8x40	£1.63 £1.36
77	ST9289 021 0190 Available to backorder	Washer 9	£0.35 £0.29
80	ST6151 704 2100 Available to backorder	V-belt	£59.52 £49.60
