Viking MT745 - Mowing Deck - Parts Diagram

Description

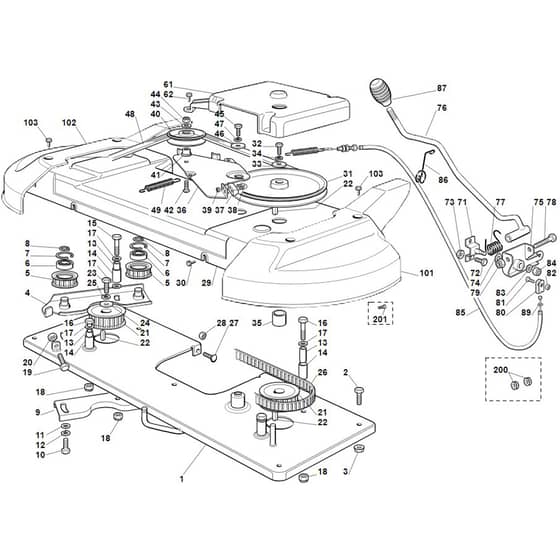

Viking MT745 - Mowing Deck - Parts Diagram

	Part No.	Details
2	ST9008 318 1780 Available to backorder	Hexagon head screw M8x16	£1.03 £0.86
6	ST9503 003 6527 Available to backorder	Grooved ball bearing 6202-2RS	£9.46 £7.88
7	ST9456 621 3860 Available to backorder	Circlip 35x1.5	£1.37 £1.14
8	ST9455 621 1520 In stock	Circlips DIN471-15x1	£0.95 £0.79
10	ST9008 318 1800 Available to backorder	Hexagon head screw M8x20	£1.03 £0.86
11	ST9291 020 0180 Available to backorder	Washer 84	£0.35 £0.29
12	ST9321 630 0180 Available to backorder	Spring washer 8	£1.03 £0.86
15	ST9007 319 1961 Available to backorder	Hexagon head screw M8x55-8.8	£1.94 £1.62
16	ST9007 319 1930 Available to backorder	Hexagon head screw M8x45	£1.37 £1.14
16	ST9007 318 1930 Available to backorder	Hexagon head screw M8x45	£1.60 £1.33
18	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
19	ST9008 319 1970 Available to backorder	Hexagon head screw M8x60	£2.05 £1.71
20	ST9210 260 1100 In stock	Hexagon nut M8	£0.68 £0.57
26	ST6124 764 0900 Available to backorder	Toothed belt	£133.08 £110.90
27	ST9027 068 1280 Available to backorder	Flat head screw M6x16	£0.91 £0.76
30	ST9107 021 5002 Available to backorder	Self-tapping screw 4.8x13	£0.49 £0.41
39	ST9212 260 0700 Available to backorder	Hexagon nut M5	£0.35 £0.29
42	ST9027 068 1880 Available to backorder	Screw M8x35	£1.46 £1.22
43	ST9307 021 0180 Available to backorder	Washer 84	£0.35 £0.29
46	ST9289 021 0190 Available to backorder	Washer 9	£0.35 £0.29
48	ST6151 704 2100 Available to backorder	V-belt	£59.52 £49.60
78	ST9007 319 2010 Available to backorder	Hexagon head screw M8x80	£2.51 £2.09
81	ST9008 319 1320 Available to backorder	Hexagon head screw M6x20	£0.91 £0.76
82	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
84	ST9214 320 1105 In stock	Lock nut M8	£0.68 £0.57
201	ST9041 116 1020 Available to backorder	Pan head screw M5x20	£0.48 £0.40
