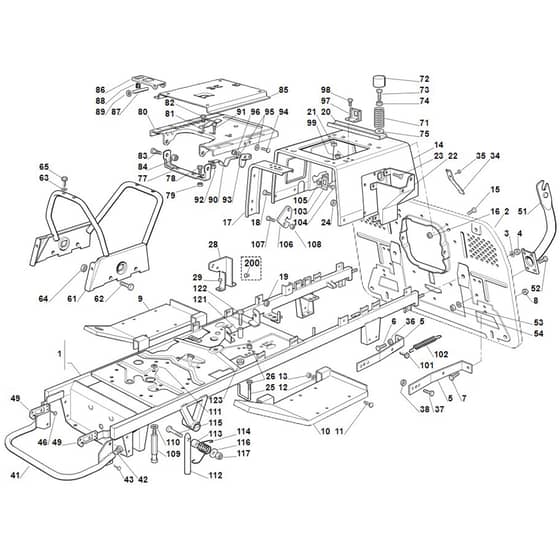

Viking MT745 - Frame - Parts Diagram

Ref. Img. Part No. Details
  3 Spring washer 10 ST9321 630 0200
Spring washer 10
Out of stock
£0.76 £0.63

  4 Hexagon nut M10 ST9210 260 1300
Hexagon nut M10
Out of stock
£1.00 £0.83

  6 Hexagon head screw M8x35 ST9007 319 1880
Hexagon head screw M8x35
Out of stock
£1.55 £1.29

  12 Washer 64 ST9307 021 0140
Washer 64
Out of stock
£0.40 £0.33

  15 Hexagon head screw M6x16 ST9008 319 1280
Hexagon head screw M6x16
In stock
Was £0.48 £0.40 Special Price £0.18 £0.15

  36 Hexagon nut M8 ST9210 259 1100
Hexagon nut M8
Out of stock
£0.76 £0.63

  37 Hexagon head screw M8x20 ST9008 318 1800
Hexagon head screw M8x20
Out of stock
£1.15 £0.96

  52 Hexagon head screw M8x16 ST9008 318 1780
Hexagon head screw M8x16
Out of stock
£1.27 £1.06

  63 Washer 64 ST9291 020 0140
Washer 64
Out of stock
£0.40 £0.33

  75 Washer 9 ST9289 021 0190
Washer 9
Out of stock
£0.40 £0.33

  84 Lock nut M8 ST9214 320 1105
Lock nut M8
Out of stock
£0.72 £0.60

  89 Clamping ring 5 ST9991 003 0545
Clamping ring 5
Out of stock
£1.90 £1.58

  95 Washer 53 ST9291 020 0120
Washer 53
Out of stock
£0.40 £0.33

  96 Wing nut M5 ST9245 691 0700
Wing nut M5
Out of stock
£0.40 £0.33

  98 Self-tapping screw 4.8x13 ST9107 021 5002
Self-tapping screw 4.8x13
Out of stock
£0.50 £0.42

  105 Hexagon nut M5 ST9212 260 0705
Hexagon nut M5
Out of stock
£0.40 £0.33

  107 Hexagon head screw M5x16 ST9008 319 0980
Hexagon head screw M5x16
Out of stock
£1.00 £0.83

  108 Hexagon nut M5 ST9212 260 0700
Hexagon nut M5
Out of stock
£0.40 £0.33

  110 Washer 84 ST9307 021 0180
Washer 84
Out of stock
£0.43 £0.36

  115 Hexagon head screw M6x45 ST9007 319 1420
Hexagon head screw M6x45
Out of stock
£1.50 £1.25

  117 Hexagon nut M6 ST9212 260 0900
Hexagon nut M6
In stock
£0.55 £0.46

  122 Hexagon head screw M8x45 ST9007 319 1930
Hexagon head screw M8x45
Out of stock
£1.43 £1.19

  122 Hexagon head screw M8x45 ST9007 318 1930
Hexagon head screw M8x45
Out of stock
£1.76 £1.47


Description

Viking MT745 - Frame - Parts Diagram
