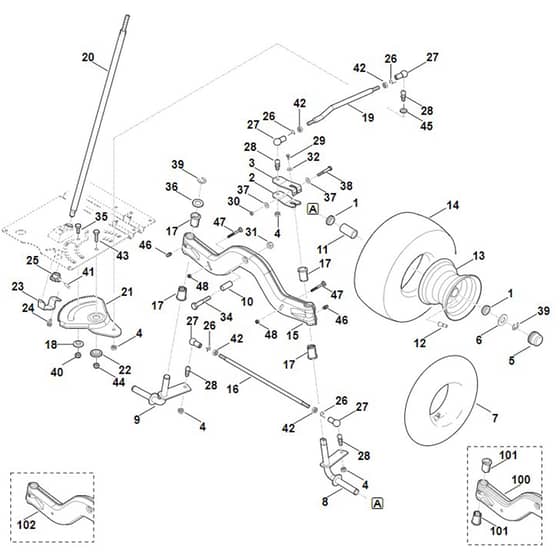

Viking MT6127.1 ZL - Steering, Front Wheel - Parts Diagram

Description

Viking MT6127.1 ZL - Steering, Front Wheel - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6170 764 2700 Available to backorder	Collar bushing	£4.72 £3.93
0	ST6170 700 0420 Available to backorder	Wheel assy. 16" (Contains 1+11-14)	£126.50 £105.42
2	ST6165 703 6735 Available to backorder	Lever down	£12.76 £10.63
3	ST6165 703 6730 Available to backorder	Lever up	£12.88 £10.73
4	ST9212 263 1301 Available to backorder	Hexagon nut M10x1	£0.88 £0.73
5	ST6170 708 7420 Available to backorder	Cap	£4.30 £3.58
6	ST6170 763 0910 Available to backorder	Washer 42	£4.72 £3.93
7	ST0000 704 6700 Available to backorder	Hose 15x60 - 6	£26.74 £22.28
8	ST6170 760 5000 Available to backorder	Axle stub left	£55.54 £46.28
9	ST6170 760 5005 Available to backorder	Axle stub right	£55.54 £46.28
10	ST6170 763 3010 Available to backorder	Bearing bushing	£11.78 £9.82
11	ST9512 003 4660 Available to backorder	Needle roller and cage 20x30x65	£7.73 £6.44
12	ST0000 731 7700 Available to backorder	Valve	£7.70 £6.42
13	ST6170 760 3910 Available to backorder	Rim 75-8	£89.66 £74.72
14	ST6170 704 9510 Available to backorder	Tyre 16x75-8	£107.80 £89.83
15	ST6165 700 2408 Available to backorder	Axle (Contains 17+46)	£114.40 £95.33
16	ST6165 763 5700 Available to backorder	Track rod	£47.08 £39.23
17	ST6165 763 3011 Available to backorder	Bearing bushing	£12.10 £10.08
18	ST6165 763 3000 Available to backorder	Bearing bushing	£3.08 £2.57
19	ST6165 703 1700 Available to backorder	Rod	£48.08 £40.07
20	ST6165 763 3510 Available to backorder	Shaft	£103.40 £86.17
21	ST6165 703 4800 In stock	Toothed disc	£57.76 £48.13
21	ST6165 703 4805 Available to backorder	Toothed disc	£57.76 £48.13
22	ST6165 763 3200 Available to backorder	Flange sleeve	£4.40 £3.67
23	ST6165 703 6900 Available to backorder	Support	£22.22 £18.52
24	ST9039 488 1782 Available to backorder	Self-tapping screw M8x16	£1.00 £0.83
25	ST6170 763 6100 In stock	Pinion	£23.00 £19.17
26	ST9666 003 7016 Available to backorder	Circlip	£1.66 £1.38
27	ST9666 003 7024 Available to backorder	Ball socket B16	£12.32 £10.27
28	ST9666 003 5114 Available to backorder	Ball stud M10x1 C16	£9.14 £7.62
29	ST9039 488 0996 Available to backorder	Self-tapping screw M6x12	£0.76 £0.63
30	ST9214 261 1105 In stock	Lock nut M8	£0.48 £0.40
31	ST9212 263 1400 Available to backorder	Hexagon nut M12	£1.22 £1.02
32	ST9307 021 0140 In stock	Washer 64	£0.34 £0.28
34	ST9007 319 3090 Available to backorder	Hexagon head screw M12x65	£2.86 £2.38
35	ST9008 318 2390 Available to backorder	Hexagon head screw M10x25	£1.32 £1.10
36	ST9294 021 0330 Available to backorder	Washer 21	£0.76 £0.63
37	ST9309 021 0180 Available to backorder	Washer 8.4	£0.48 £0.40
38	ST9007 319 1961 Available to backorder	Hexagon head screw M8x55-8.8	£1.88 £1.57
39	ST9460 624 1500 Available to backorder	E-clip 15	£0.48 £0.40
40	ST9212 263 1300 Available to backorder	Hexagon nut M10	£0.88 £0.73
41	ST9384 620 3120 Available to backorder	Roll pin 6x24	£0.76 £0.63
42	ST9210 261 1300 Available to backorder	Hexagon nut M10	£0.88 £0.73
43	ST9010 345 2431 In stock	Hexagon head screw M10x1x35	£1.54 £1.28
45	ST9309 021 0200 Available to backorder	Washer 10.5	£0.48 £0.40
46	ST9794 003 1851 Available to backorder	Grease Nipple M6	£1.42 £1.18
47	ST9027 318 1450 Available to backorder	Flat head screw M6x60	£1.54 £1.28
48	ST9214 261 0900 Available to backorder	Lock nut M6	£0.48 £0.40
100	ST6165 700 2406 Available to backorder	Axle (Contains 101)	£111.98 £93.32
101	ST6165 763 3010 Available to backorder	Bearing bushing	£2.66 £2.22
102	ST6165 700 2407 Available to backorder	Axle (Contains 17+46)	£114.40 £95.33
