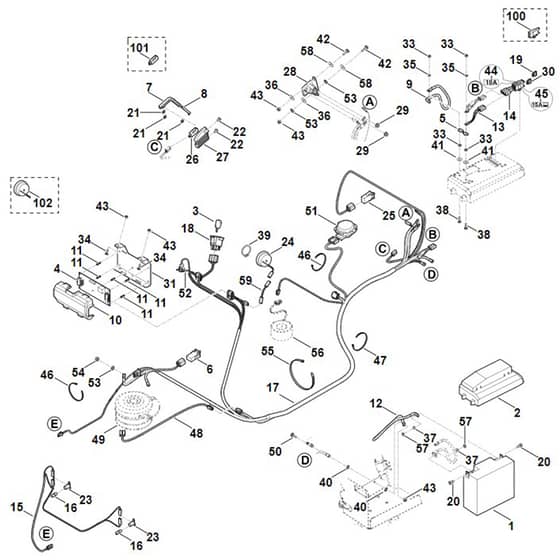

Viking MT6127.0 ZL - Electric Equipment - Parts Diagram

Name: Viking MT6127.0 ZL - Electric Equipment - Parts Diagram
SKU: mt6127_0_zl_electric_equipment-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT6127.0 ZL - Electric Equipment - Parts Diagram

Description

Viking MT6127.0 ZL - Electric Equipment - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6170 400 1115 Available to backorder	Battery 12V-20Ah (Contains 20+37+57)	£157.30 £131.08
2	ST6170 403 0200 Available to backorder	Battery cover	£20.64 £17.20
3	ST0000 430 8101 Available to backorder	Ignition key	£5.50 £4.58
4	ST6170 430 1405 Available to backorder	Electronic modul	£182.60 £152.17
5	ST6170 437 0800 Available to backorder	Retainer ring 150A	£3.86 £3.22
6	ST6170 430 0520 Available to backorder	Switch	£15.28 £12.73
7	ST6170 703 4400 Available to backorder	Feeder element	£3.20 £2.67
8	ST6170 703 7900 Available to backorder	Switch rod	£2.54 £2.12
10	ST6170 403 2210 Available to backorder	Cover	£6.28 £5.23
11	ST6170 405 1910 Available to backorder	Support	£2.42 £2.02
14	ST6170 440 1935 Available to backorder	Fuse holder	£21.56 £17.97
16	ST0000 405 3100 Available to backorder	Lamp 12V/10 W	£24.20 £20.17
17	ST6170 440 3010 Available to backorder	Wiring harness (Contains 13+14+19+30+44+45+52)	£213.24 £177.70
18	ST6170 430 2411 Available to backorder	Ignition lock (Contains 3)	£53.80 £44.83
19	ST0751 031 5002 Available to backorder	Fuse 10A	£3.30 £2.75
20	ST9008 318 0980 Available to backorder	Hexagon head screw M5x10	£0.88 £0.73
21	ST9991 003 0543 Available to backorder	Clamping ring 3	£1.76 £1.47
22	ST9104 007 4260 In stock	Self-tapping screw P5x12	£0.76 £0.63
23	ST6170 440 1800 Available to backorder	Socket	£19.48 £16.23
25	ST6170 430 0530 Available to backorder	Switch	£15.28 £12.73
26	ST6001 430 0210 Available to backorder	Stop switch	£5.72 £4.77
27	ST6170 403 1300 Available to backorder	Housing	£5.18 £4.32
28	ST6170 430 3100 In stock	Relay	£52.80 £44.00
29	ST9991 003 0000 Available to backorder	Hexagon nut 1/4"	£1.10 £0.92
30	ST0751 031 5003 Available to backorder	Fuse 15A	£3.30 £2.75
31	ST6170 763 5495 Available to backorder	Sheet metal holder	£27.28 £22.73
33	ST9210 259 0700 Available to backorder	Hexagon nut M5	£0.48 £0.40
34	ST9008 318 1280 Available to backorder	Hexagon head screw M6x16	£0.88 £0.73
35	ST9321 630 0120 Available to backorder	Spring washer 5	£0.88 £0.73
36	ST9307 021 0140 In stock	Washer 64	£0.34 £0.28
37	ST9291 020 0120 Available to backorder	Washer 53	£0.48 £0.40
39	ST9455 621 2790 Available to backorder	Circlip 25x12	£1.00 £0.83
40	ST9330 630 0140 Available to backorder	Shakeproof washer 6.4	£0.48 £0.40
41	ST9307 020 0120 Available to backorder	Washer 53	£0.48 £0.40
43	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
44	ST6170 967 4480 Available to backorder	Label 10A	£2.08 £1.73
45	ST6170 967 4490 Available to backorder	Label 15A	£2.08 £1.73
46	ST0751 010 7232 Available to backorder	Cable tie	£2.54 £2.12
47	ST0751 010 7054 Available to backorder	Cable tie	£2.42 £2.02
48	ST6170 440 1910 Available to backorder	Electromagnetic clutch	£20.56 £17.13
50	ST9008 318 1320 Available to backorder	Hexagon head screw M6x20	£0.88 £0.73
51	ST6170 430 0550 Available to backorder	Switch	£23.32 £19.43
52	ST6170 435 2600 Available to backorder	Plate (Charging symbol)	£2.54 £2.12
53	ST9330 630 0500 Available to backorder	Shakeproof washer 6.4	£0.48 £0.40
59	ST6170 440 0700 Available to backorder	Adapter cable	£9.02 £7.52
102	ST6170 430 8890 Available to backorder	Buzzer	£18.38 £15.32
