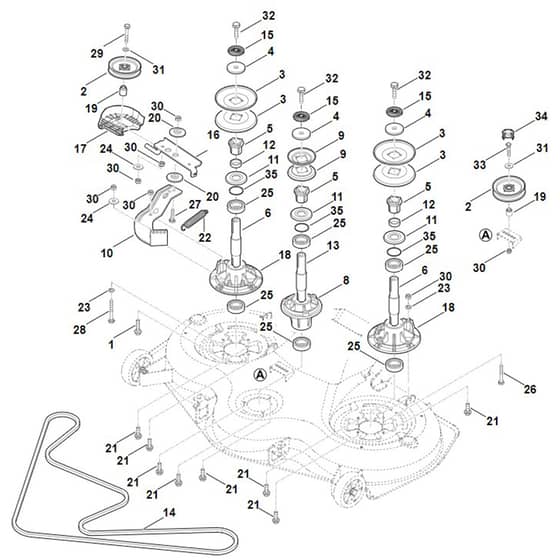

Viking MT6127.0 ZL - Blade Drive - Parts Diagram

Name: Viking MT6127.0 ZL - Blade Drive - Parts Diagram
SKU: mt6127_0_zl_blade_drive-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT6127.0 ZL - Blade Drive - Parts Diagram

Description

Viking MT6127.0 ZL - Blade Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	ST6170 700 3520 Available to backorder	Shaft assy. (Contains 4+5+8+9+11+13+15+25+32+35)	£140.80 £117.33
0	ST6170 700 3510 Available to backorder	Shaft assy. (Contains 3-6+11+12+15+18+25+32+35)	£168.54 £140.45
1	ST9039 488 1846 Available to backorder	Self-tapping screw M8x35	£1.42 £1.18
2	ST6170 760 1290 Available to backorder	Idler pulley	£25.18 £20.98
2	ST6170 760 1291 Available to backorder	Idler pulley	£27.50 £22.92
3	ST6160 764 8400 Available to backorder	V-belt pulley half	£24.32 £20.27
4	ST6170 702 1800 Available to backorder	Washer	£1.88 £1.57
5	ST6170 702 0600 Available to backorder	Carrier	£10.66 £8.88
6	ST6170 702 0700 Available to backorder	Shaft	£71.50 £59.58
8	ST6170 702 6900 Available to backorder	Bearing bracket	£84.70 £70.58
9	ST6170 764 8400 Available to backorder	V-belt pulley half	£14.08 £11.73
10	ST6170 704 1300 Available to backorder	Sheet metal holder	£56.10 £46.75
11	ST6170 702 2210 Available to backorder	Protection disk	£4.96 £4.13
12	ST6170 702 1700 Available to backorder	Spacer ring	£8.92 £7.43
13	ST6170 702 0710 Available to backorder	Shaft	£69.86 £58.22

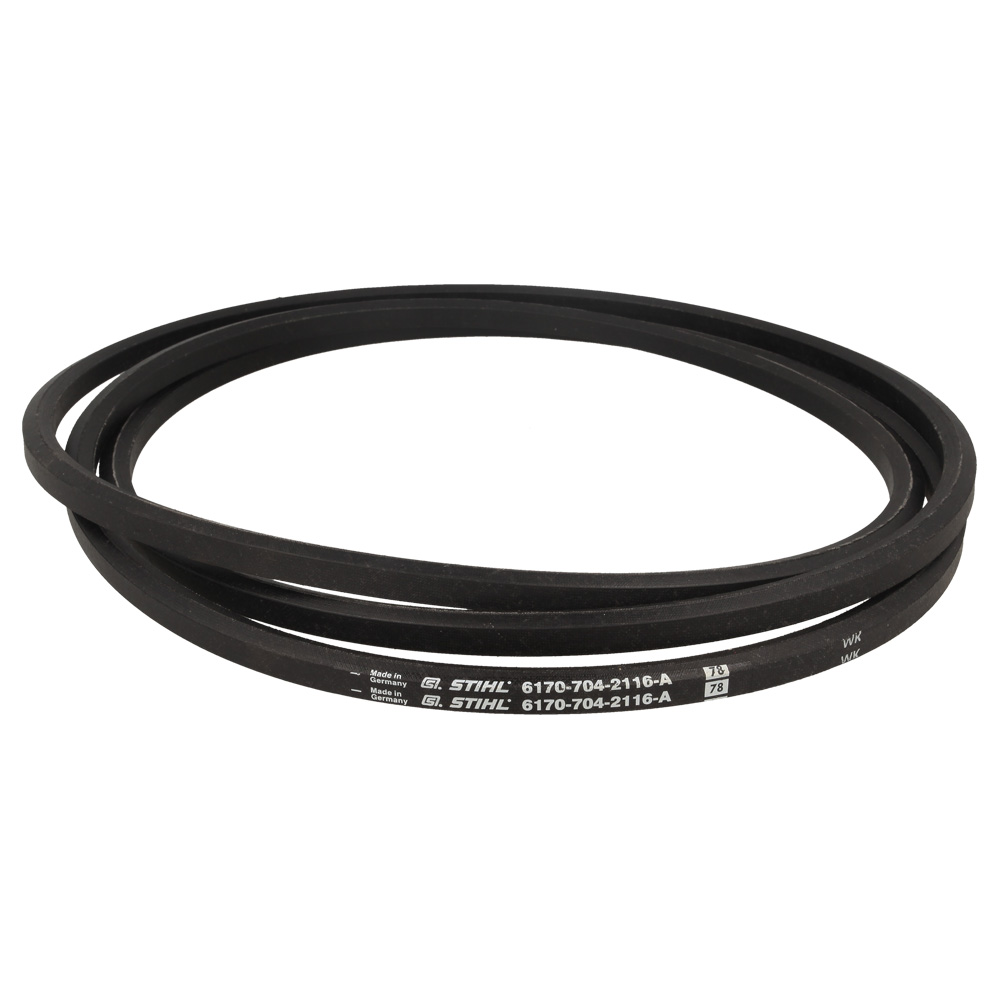

14	ST6170 704 2116 Available to backorder	V-belt	£89.10 £74.25
15	ST0000 702 6600 In stock	Washer	£4.18 £3.48
16	ST6170 760 0810 Available to backorder	Clamping arm	£28.38 £23.65
17	ST6170 704 9410 Available to backorder	Belt guide	£6.94 £5.78
18	ST6170 702 6910 Available to backorder	Bearing bracket	£90.20 £75.17
19	ST6170 764 2801 Available to backorder	Distance sleeve	£5.28 £4.40
20	ST6170 703 1920 Available to backorder	Collar bearing	£3.74 £3.12
21	ST9039 488 1839 Available to backorder	Self-tapping screw M8x25	£1.22 £1.02
22	ST6170 162 7921 Available to backorder	Tension spring	£8.26 £6.88
22	ST6170 162 7920 Available to backorder	Tension spring	£8.68 £7.23
23	ST9321 630 0180 Available to backorder	Spring washer 8	£1.00 £0.83
24	ST9307 021 0180 Available to backorder	Washer 84	£0.48 £0.40
25	ST9503 003 6841 Available to backorder	Grooved ball bearing 6205-2RS	£14.08 £11.73
26	ST9008 319 1950 Available to backorder	Hexagon head screw M8x50	£1.76 £1.47
27	ST9008 318 1860 Available to backorder	Hexagon head screw M8x30	£1.32 £1.10
28	ST9008 319 1960 Available to backorder	Hexagon head screw M8x55	£1.88 £1.57
30	ST9212 260 1100 In stock	Hexagon nut M8	£0.66 £0.55
31	ST9291 020 0180 Available to backorder	Washer 84	£0.48 £0.40
32	ST9010 345 2431 In stock	Hexagon head screw M10x1x35	£1.54 £1.28
33	ST9008 318 1900 Available to backorder	Hexagon head screw M8x40	£1.42 £1.18
34	ST6160 706 0740 Available to backorder	Cover	£2.86 £2.38
35	ST9645 945 7699 Available to backorder	O-ring 23x15	£0.66 £0.55
