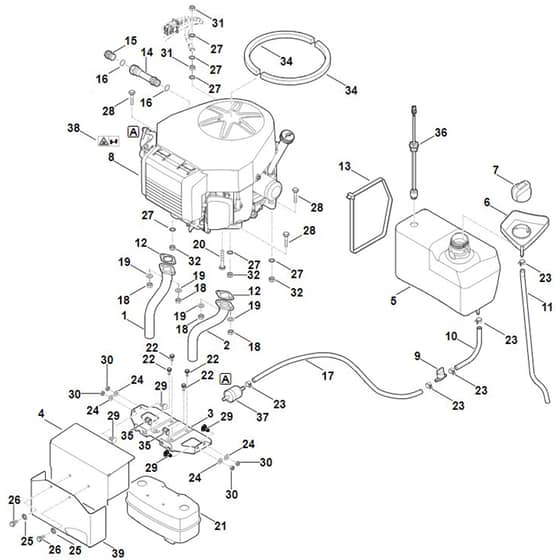

Viking MT6127.0 KL - Engine, Tank - Parts Diagram

Name: Viking MT6127.0 KL - Engine, Tank - Parts Diagram
SKU: mt6127_0_kl_engine_tank-group
Price: 0.28 GBP
Availability: InStock

Part No. mt6127_0_kl_engine_tank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT6127.0 KL - Engine, Tank - Parts Diagram

Description

Viking MT6127.0 KL - Engine, Tank - Parts Diagram

	Part No.	Details
3	ST6170 146 7300 Available to backorder	Cover plate	£47.21 £39.34
4	ST6170 145 3700 Available to backorder	Guard plate	£56.09 £46.74
5	ST6170 351 0405 Available to backorder	Fuel tank	£138.60 £115.50
6	ST6170 352 4010 Available to backorder	Overflow tray	£10.46 £8.72
7	ST6170 350 1501 Available to backorder	Filler cap	£8.77 £7.31
9	ST0000 350 1000 Available to backorder	Fuel cock	£10.24 £8.53
10	ST6170 350 2700 Available to backorder	Fuel hose	£16.84 £14.03
11	ST6170 358 0800 Available to backorder	Hose	£13.76 £11.47
13	ST0751 010 7236 Available to backorder	Cable tie	£7.51 £6.26
14	ST0001 021 8202 Available to backorder	Pipe (oil drain extension)	£30.83 £25.69
15	ST0001 021 4801 Available to backorder	Oil drain screw	£12.86 £10.72
20	ST9018 318 1951 Available to backorder	Hexagon head screw M8x50	£1.82 £1.52
21	ST6170 140 0630 Available to backorder	Muffler	£147.36 £122.80
22	ST9039 488 0996 Available to backorder	Self-tapping screw M6x12	£0.79 £0.66
23	ST0000 988 9100 Available to backorder	Hose clip	£2.28 £1.90
24	ST9307 021 0140 In stock	Washer 64	£0.34 £0.28
25	ST9330 630 0500 Available to backorder	Shakeproof washer 6.4	£0.35 £0.29
26	ST9008 319 1260 Available to backorder	Hexagon head screw M6x12	£0.79 £0.66
26	ST9008 318 1280 Available to backorder	Hexagon head screw M6x16	£0.91 £0.76
27	ST9330 630 0180 Available to backorder	Shakeproof washer 8.4	£0.35 £0.29
28	ST9008 319 1880 Available to backorder	Hexagon head screw M8x35	£1.46 £1.22
29	ST9027 068 1280 Available to backorder	Flat head screw M6x16	£0.91 £0.76
30	ST9214 261 0900 Available to backorder	Lock nut M6	£0.46 £0.38
31	ST9210 259 1100 Available to backorder	Hexagon nut M8	£0.68 £0.57
32	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
34	ST6170 087 1800 Available to backorder	Seal ring half	£3.41 £2.84
35	ST9991 003 1045 Available to backorder	Cage nut M6	£1.37 £1.14
36	ST6170 350 6000 Available to backorder	Sensor	£106.68 £88.90
37	ST0001 350 1800 Available to backorder	Fuel filter	£20.15 £16.79
38	ST6170 967 4415 Available to backorder	Label	£2.15 £1.79
39	ST6165 145 3700 Available to backorder	Guard plate	£47.89 £39.91
