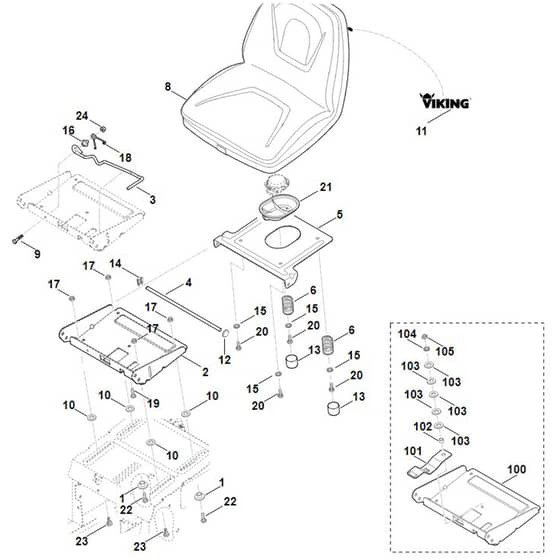

Viking MT6112.1 C - Seat - Parts Diagram

Name: Viking MT6112.1 C - Seat - Parts Diagram
SKU: mt6112_1_c_seat-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT6112.1 C - Seat - Parts Diagram

Description

Viking MT6112.1 C - Seat - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6170 763 3700 Available to backorder	Spacer ring	£4.84 £4.03
2	ST6140 763 4201 Available to backorder	Adjusting device	£107.26 £89.38
3	ST6140 763 2920 Available to backorder	Adjusting lever	£35.64 £29.70
4	ST6170 703 1750 Available to backorder	Rod	£37.30 £31.08
5	ST6170 763 5440 Available to backorder	Sheet metal holder	£53.68 £44.73
6	ST6170 703 6400 Available to backorder	Compression spring	£6.82 £5.68
8	ST6170 760 0301 Available to backorder	Seat (Contains 11)	£259.32 £216.10
9	ST9008 318 1900 Available to backorder	Hexagon head screw M8x40	£1.42 £1.18
10	ST6170 763 0900 Available to backorder	Washer	£1.10 £0.92
11	ST6170 967 4460 Available to backorder	Label	£2.08 £1.73
12	ST9417 021 7530 Available to backorder	Quick-fixing device	£1.32 £1.10
13	ST6170 708 7410 Available to backorder	Cap	£2.74 £2.28
14	ST9460 620 8030 Available to backorder	E-clip SL-10	£0.48 £0.40
16	ST6140 763 3210 Available to backorder	Flange sleeve	£8.68 £7.23
18	ST6140 703 4920 Available to backorder	Torsion spring	£2.54 £2.12
19	ST9008 318 1830 Available to backorder	Hexagon head screw M8x25	£1.22 £1.02
20	ST9008 318 1800 Available to backorder	Hexagon head screw M8x20	£1.00 £0.83
21	ST6170 706 0730 Available to backorder	Cover	£5.50 £4.58
21	ST6170 706 0731 Available to backorder	Cover	£5.62 £4.68
23	ST6170 763 2210 Available to backorder	Guide piece	£7.82 £6.52
24	ST9216 261 1100 Available to backorder	Hexagon nut M8	£0.76 £0.63
101	ST6170 763 6000 Available to backorder	Interlock lever	£16.94 £14.12
102	ST6170 763 0710 Available to backorder	Distance sleeve	£2.54 £2.12
103	ST9485 648 1750 Available to backorder	Cup spring B25	£0.88 £0.73
104	ST9291 020 0180 Available to backorder	Washer 84	£0.48 £0.40
105	ST9212 260 1100 In stock	Hexagon nut M8	£0.66 £0.55
