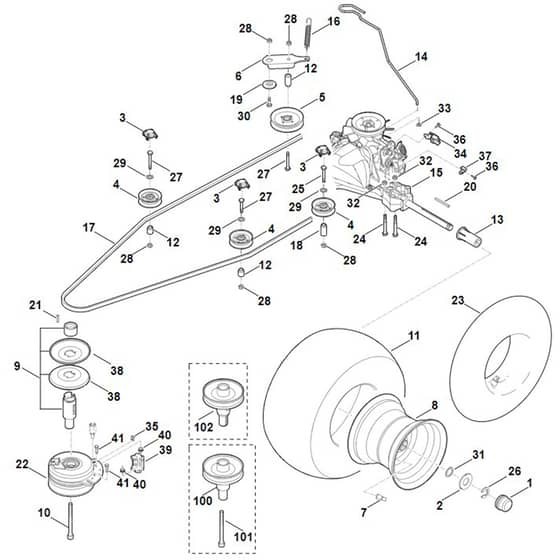

Viking MT6112.1 C - Gearbox, Rear Wheel, Blade Clutch - Parts Diagram

Description

Viking MT6112.1 C - Gearbox, Rear Wheel, Blade Clutch - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6170 708 7420 Available to backorder	Cap	£4.30 £3.58
0	ST6170 700 0435 Available to backorder	Wheel assy. 18" (Contains 7+8+11)	£147.40 £122.83
2	ST6170 763 0910 Available to backorder	Washer 42	£4.72 £3.93
3	ST6160 706 0730 Available to backorder	Cover	£2.86 £2.38
4	ST6170 007 1003 In stock	Conversion kit (idler wheel)	£43.66 £36.38
5	ST6170 760 1290 Available to backorder	Idler pulley	£25.18 £20.98
5	ST6170 760 1291 Available to backorder	Idler pulley	£27.50 £22.92
6	ST6170 704 2200 Available to backorder	Bolt lever	£16.40 £13.67
7	ST0000 731 7700 Available to backorder	Valve	£7.70 £6.42
8	ST6170 760 3920 Available to backorder	Rim 85-8	£103.96 £86.63
9	ST6170 700 2531 Available to backorder	V-belt pulley (Contains 38)	£103.40 £86.17
10	ST9045 348 9051 Available to backorder	Pan head screw 7/16"x5"	£4.18 £3.48
11	ST6170 704 9525 Available to backorder	Tyre 18x85-8	£116.60 £97.17
12	ST6160 764 2801 Available to backorder	Distance sleeve	£10.78 £8.98
13	ST6165 764 2800 Available to backorder	Distance sleeve	£9.80 £8.17
14	ST6170 647 3510 Available to backorder	Lever	£35.56 £29.63
14	ST6170 647 3511 Available to backorder	Lever	£33.88 £28.23
15	ST6170 640 0120 Available to backorder	T3-AHBF-2x3C-1Tx4	£1,143.60 £953.00
16	ST6165 764 1610 Available to backorder	Tension spring	£5.84 £4.87
17	ST6165 704 2120 Available to backorder	V-belt	£57.20 £47.67
18	ST6170 764 2801 Available to backorder	Distance sleeve	£5.28 £4.40
19	ST6170 703 1920 Available to backorder	Collar bearing	£3.74 £3.12
20	ST9471 435 1622 Available to backorder	Key 3/16"SQx21/4"	£2.42 £2.02
21	ST9471 435 1602 Available to backorder	Key B1/4"SQx1"	£2.32 £1.93
22	ST6170 160 2011 Available to backorder	Blade clutch (Contains 39-41)	£256.44 £213.70
22	ST6170 160 2010 Available to backorder	Blade clutch	£256.44 £213.70
23	ST0000 704 6703 Available to backorder	Hose 18x85 - 8	£38.38 £31.98
24	ST9007 318 1980 Available to backorder	Hexagon head screw M8x65	£1.98 £1.65
25	ST9008 318 1900 Available to backorder	Hexagon head screw M8x40	£1.42 £1.18
26	ST9460 624 1500 Available to backorder	E-clip 15	£0.48 £0.40
27	ST9008 319 1960 Available to backorder	Hexagon head screw M8x55	£1.88 £1.57
28	ST9212 260 1100 In stock	Hexagon nut M8	£0.66 £0.55
29	ST9291 020 0180 Available to backorder	Washer 84	£0.48 £0.40
30	ST9008 318 1830 Available to backorder	Hexagon head screw M8x25	£1.22 £1.02
31	ST9296 021 1657 Available to backorder	Washer 19x26x15	£0.66 £0.55
32	ST9216 261 1100 Available to backorder	Hexagon nut M8	£0.76 £0.63
33	ST9991 003 0546 Available to backorder	Clamping ring 6	£1.66 £1.38
34	ST6170 403 2310 Available to backorder	Support	£4.30 £3.58
35	ST6140 162 4500 Available to backorder	Clip	£1.98 £1.65
36	ST9039 488 0958 In stock	Self-tapping screw M5x10	£0.76 £0.63
37	ST6170 647 1100 Available to backorder	Angle piece	£1.66 £1.38
38	ST6170 700 2505 Available to backorder	V-belt pulley	£63.80 £53.17
39	ST6140 007 1800 Available to backorder	Repair kit (brake lining)	£70.40 £58.67
100	ST6170 700 2511 Available to backorder	V-belt pulley	£103.96 £86.63
101	ST9045 348 9050 Available to backorder	Pan head screw 7/16"x45"	£4.06 £3.38
102	ST6170 700 2530 Available to backorder	V-belt pulley	£103.32 £86.10
