Viking MT6112.1 C - Engine, Tank - Parts Diagram

Name: Viking MT6112.1 C - Engine, Tank - Parts Diagram
SKU: mt6112_1_c_engine_tank-group
Price: 0.29 GBP
Availability: InStock

Part No. mt6112_1_c_engine_tank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT6112.1 C - Engine, Tank - Parts Diagram

Description

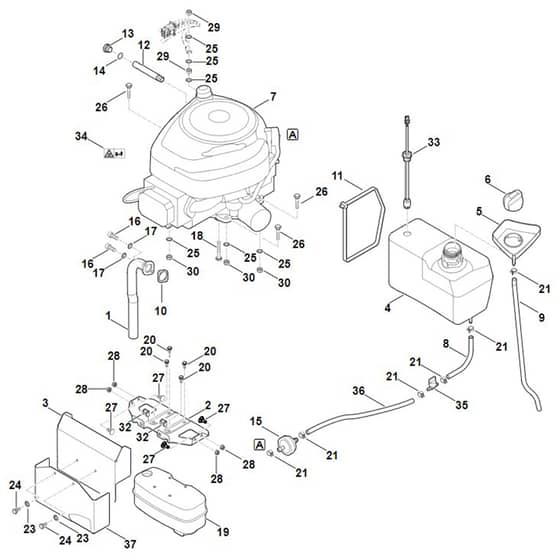

Viking MT6112.1 C - Engine, Tank - Parts Diagram

	Part No.	Details
1	ST6170 140 2535 Available to backorder	Manifold	£68.76 £57.30
2	ST6170 146 7300 Available to backorder	Cover plate	£47.21 £39.34
3	ST6160 145 3700 Available to backorder	Guard plate	£47.89 £39.91
4	ST6170 351 0405 Available to backorder	Fuel tank	£138.60 £115.50
5	ST6170 352 4010 Available to backorder	Overflow tray	£10.46 £8.72
6	ST6170 350 1501 Available to backorder	Filler cap	£8.77 £7.31
8	ST6170 350 2700 Available to backorder	Fuel hose	£16.84 £14.03
9	ST6170 358 0800 Available to backorder	Hose	£13.76 £11.47
10	ST6170 149 0600 Available to backorder	Exhaust gasket	£2.74 £2.28
11	ST0751 010 7236 Available to backorder	Cable tie	£7.51 £6.26
12	ST6170 021 8200 Available to backorder	Tube	£44.60 £37.17
13	ST6170 028 1100 Available to backorder	Plug	£5.00 £4.17
14	ST6170 029 0500 Available to backorder	Gasket	£1.46 £1.22
15	ST0000 358 1808 In stock	Fuel filter	£2.14 £1.78
16	ST9045 319 1795 Available to backorder	Pan head screw 5/16"x3/4"	£1.03 £0.86
17	ST9460 624 4030 Available to backorder	E-clip 8.4	£0.35 £0.29
18	ST9018 318 1951 Available to backorder	Hexagon head screw M8x50	£1.82 £1.52
19	ST6170 140 0600 Available to backorder	Muffler	£109.44 £91.20
20	ST9039 488 0996 Available to backorder	Self-tapping screw M6x12	£0.79 £0.66
21	ST0000 988 9100 Available to backorder	Hose clip	£2.28 £1.90
23	ST9330 630 0500 Available to backorder	Shakeproof washer 6.4	£0.35 £0.29
24	ST9008 318 1280 Available to backorder	Hexagon head screw M6x16	£0.91 £0.76
25	ST9330 630 0180 Available to backorder	Shakeproof washer 8.4	£0.35 £0.29
26	ST9008 319 1880 Available to backorder	Hexagon head screw M8x35	£1.46 £1.22
27	ST9027 068 1280 Available to backorder	Flat head screw M6x16	£0.91 £0.76
28	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.68 £0.57
29	ST9210 259 1100 Available to backorder	Hexagon nut M8	£0.68 £0.57
30	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
32	ST9991 003 1045 Available to backorder	Cage nut M6	£1.37 £1.14
33	ST6170 350 6000 Available to backorder	Sensor	£106.68 £88.90
34	ST6170 967 4415 Available to backorder	Label	£2.15 £1.79
35	ST0000 350 1000 Available to backorder	Fuel cock	£10.24 £8.53
36	ST6170 350 2730 Available to backorder	Fuel hose	£16.84 £14.03
37	ST6165 145 3700 Available to backorder	Guard plate	£47.89 £39.91
