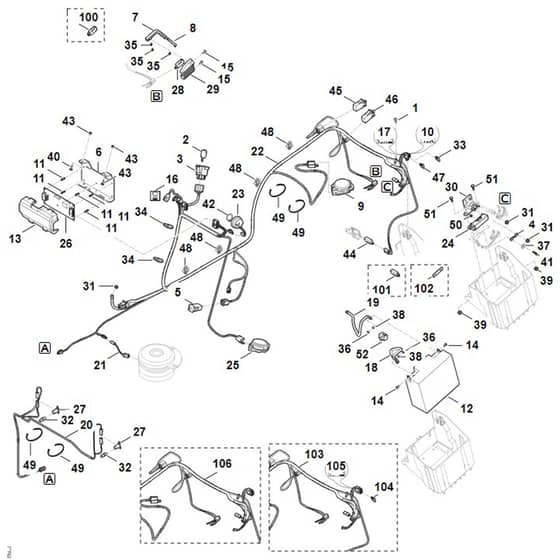

Viking MT6112.1 C - Electric Equipment - Parts Diagram

Name: Viking MT6112.1 C - Electric Equipment - Parts Diagram
SKU: mt6112_1_c_electric_equipment-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT6112.1 C - Electric Equipment - Parts Diagram

Description

Viking MT6112.1 C - Electric Equipment - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST9075 478 4610 Available to backorder	Pan head screw IS D6x16	£0.88 £0.73
2	ST0000 430 8101 Available to backorder	Ignition key	£5.50 £4.58
3	ST6170 430 2411 Available to backorder	Ignition lock (Contains 2)	£53.80 £44.83
4	ST6170 437 0800 Available to backorder	Retainer ring 150A	£3.86 £3.22
6	ST6170 763 5495 Available to backorder	Sheet metal holder	£27.28 £22.73
7	ST6170 703 4400 Available to backorder	Feeder element	£3.20 £2.67
8	ST6170 703 7900 Available to backorder	Switch rod	£2.54 £2.12
9	ST6170 430 0550 Available to backorder	Switch	£23.32 £19.43
10	ST6170 967 4480 Available to backorder	Label 10A	£2.08 £1.73
11	ST6170 405 1910 Available to backorder	Support	£2.42 £2.02
12	ST6170 400 1115 Available to backorder	Battery 12V-20Ah	£157.30 £131.08
13	ST6170 403 2210 Available to backorder	Cover	£6.28 £5.23
14	ST9008 318 0980 Available to backorder	Hexagon head screw M5x10	£0.88 £0.73
15	ST9104 007 4260 In stock	Self-tapping screw P5x12	£0.76 £0.63
16	ST6170 435 2600 Available to backorder	Plate (Charging symbol)	£2.54 £2.12
17	ST6170 967 4490 Available to backorder	Label 15A	£2.08 £1.73
19	ST6160 440 2210 Available to backorder	Ground wire	£32.44 £27.03
20	ST6160 440 1945 Available to backorder	Light cable	£31.36 £26.13
21	ST6170 440 0500 Available to backorder	Adapter cable	£20.90 £17.42
23	ST6140 430 8800 Available to backorder	Buzzer	£18.16 £15.13
24	ST6140 403 2301 Available to backorder	Support	£8.02 £6.68
25	ST6170 430 0541 Available to backorder	Switch	£23.00 £19.17

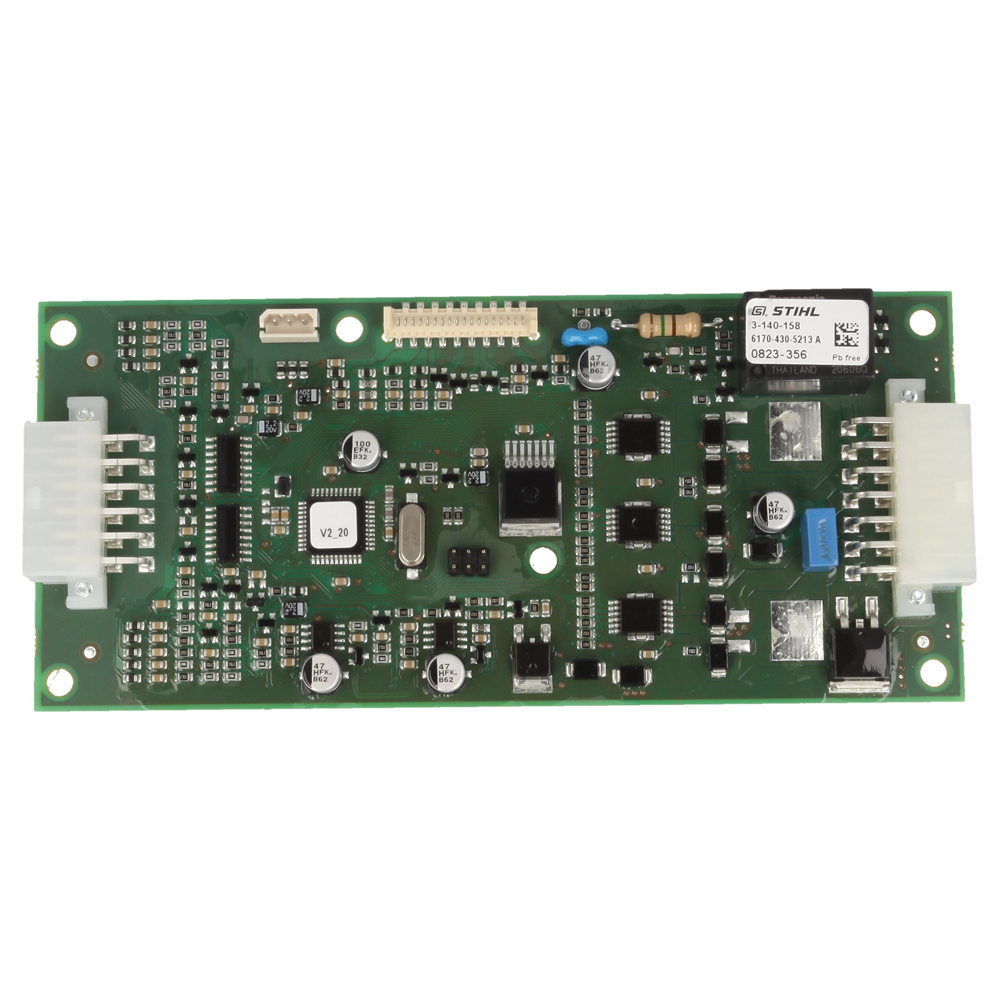

26	ST6170 430 5213 Available to backorder	Printed circuit board	£182.60 £152.17
27	ST6170 440 1800 Available to backorder	Socket	£19.48 £16.23
28	ST6001 430 0210 Available to backorder	Stop switch	£5.72 £4.77
29	ST6170 403 1300 Available to backorder	Housing	£5.18 £4.32
30	ST6170 430 3100 In stock	Relay	£52.80 £44.00
31	ST9991 003 0000 Available to backorder	Hexagon nut 1/4"	£1.10 £0.92
32	ST0000 405 3110 Available to backorder	Lamp 12V/6 W	£25.48 £21.23
34	ST0751 010 7232 Available to backorder	Cable tie	£2.54 £2.12
35	ST9991 003 0543 Available to backorder	Clamping ring 3	£1.76 £1.47
36	ST9210 259 0700 Available to backorder	Hexagon nut M5	£0.48 £0.40
37	ST9307 021 0140 In stock	Washer 64	£0.34 £0.28
38	ST9291 020 0120 Available to backorder	Washer 53	£0.48 £0.40
39	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.66 £0.55
40	ST9008 318 1280 Available to backorder	Hexagon head screw M6x16	£0.88 £0.73
42	ST9455 621 2790 Available to backorder	Circlip 25x12	£1.00 £0.83
43	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
44	ST6005 435 0410 Available to backorder	Stop switch	£7.26 £6.05
45	ST6170 430 0520 Available to backorder	Switch	£15.28 £12.73
47	ST0751 031 5003 Available to backorder	Fuse 15A	£3.30 £2.75
48	ST0751 010 7294 Available to backorder	cable tie	£2.54 £2.12
50	ST9216 261 0710 Available to backorder	Hexagon nut M5	£0.48 £0.40
51	ST9008 318 1320 Available to backorder	Hexagon head screw M6x20	£0.88 £0.73
102	ST6170 435 8500 Available to backorder	Reinforcing plate	£2.54 £2.12
103	ST6170 440 3030 Available to backorder	Wiring harness (Contains 10 + 16 + 33 + 48 + 104 + 105)	£259.20 £216.00
104	ST0751 031 5002 Available to backorder	Fuse 10A	£3.30 £2.75
105	ST6170 967 4495 Available to backorder	Label 10A	£2.08 £1.73
106	ST6170 440 3035 Available to backorder	Wiring harness (Contains 10 + 16 + 17 + 33 + 47 + 48)	£186.84 £155.70
