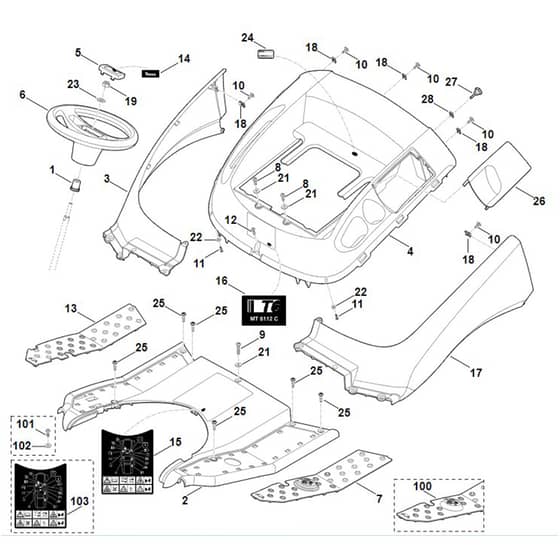

Viking MT6112.1 C - Cover - Parts Diagram

Name: Viking MT6112.1 C - Cover - Parts Diagram
SKU: mt6112_1_c_cover-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT6112.1 C - Cover - Parts Diagram

Description

Viking MT6112.1 C - Cover - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6170 703 5800 Available to backorder	Connecting piece	£13.20 £11.00
2	ST6160 780 2090 Available to backorder	Cover assy. (Contains 103)	£67.92 £56.60
2	ST6160 780 2091 Available to backorder	Cover assy. (Contains 15)	£23.66 £19.72
3	ST6170 706 6015 Available to backorder	Mudguard right	£43.00 £35.83
4	ST6170 780 2000 Available to backorder	Cover assy. (Contains 26-28)	£146.30 £121.92
5	ST6170 760 2600 Available to backorder	Cap (Contains 14)	£22.54 £18.78
6	ST6170 760 0200 Available to backorder	Steering wheel	£45.88 £38.23
7	ST6170 706 5402 Available to backorder	Foot mat left	£30.92 £25.77
8	ST9039 488 1287 Available to backorder	Self-tapping screw M6x22	£1.00 £0.83
9	ST9039 488 1380 Available to backorder	Self-tapping screw M6x35	£1.21 £1.01
10	ST9018 318 1260 Available to backorder	Hexagon head screw M6x12	£0.76 £0.63
11	ST9104 003 3003 Available to backorder	Self-tapping screw 4x12	£0.76 £0.63
12	ST9104 003 4139 Available to backorder	Self-tapping screw P6x25	£1.00 £0.83
13	ST6170 706 5415 Available to backorder	Foot mat right	£29.48 £24.57
14	ST6170 967 4410 Available to backorder	Sticker VIKING	£2.08 £1.73
15	ST6160 967 4421 Available to backorder	Warning note	£8.48 £7.07
17	ST6170 706 6000 Available to backorder	Mudguard left	£42.68 £35.57
18	ST9286 003 1000 Available to backorder	Slip-on nut M6	£1.10 £0.92
19	ST9212 263 1400 Available to backorder	Hexagon nut M12	£1.22 £1.02
22	ST9307 021 0100 Available to backorder	Washer 43	£0.48 £0.40
23	ST9291 020 0220 Available to backorder	Washer 13	£0.48 £0.40
24	ST6170 967 0121 Available to backorder	Model plate MT 6112.1 C	£2.12 £1.77
24	ST0000 967 3453 Available to backorder	Warning sign with machine number	£2.08 £1.73
25	ST9039 488 1289 Available to backorder	Self-tapping screw M6x25	£1.00 £0.83
26	ST6170 706 3410 Available to backorder	Cover	£16.06 £13.38
27	ST0000 760 1802 Available to backorder	Rotary handle	£3.96 £3.30
100	ST6170 706 5401 Available to backorder	Foot mat left	£32.00 £26.67
101	ST9039 499 1285 Available to backorder	Self-tapping screw M6x23	£2.36 £1.97
102	ST9307 010 0140 Available to backorder	Washer 64	£0.48 £0.40
103	ST6160 967 4420 Available to backorder	Warning note	£14.50 £12.08
