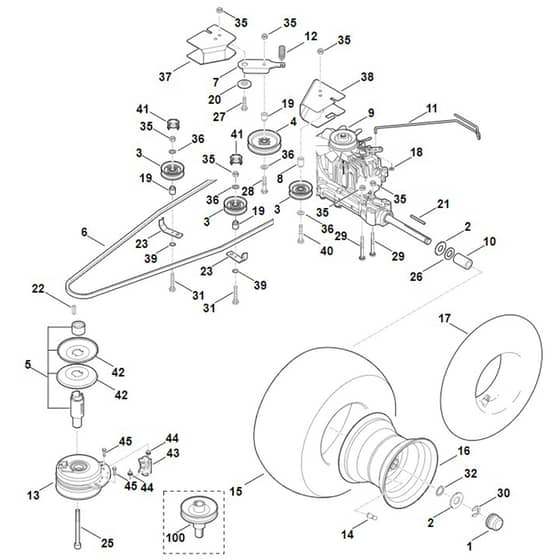

Viking MT6112.0 ZL - Gearbox, Rear Wheel, Blade Clutch - Parts Diagram

Name: Viking MT6112.0 ZL - Gearbox, Rear Wheel, Blade Clutch - Parts Diagram
SKU: mt6112_0_zl_gearbox_rear_wheel_blade_clutch-group
Price: 0.29 GBP
Availability: InStock

Part No. mt6112_0_zl_gearbox_rear_wheel_blade_clutch-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT6112.0 ZL - Gearbox, Rear Wheel, Blade Clutch - Parts Diagram

Description

Viking MT6112.0 ZL - Gearbox, Rear Wheel, Blade Clutch - Parts Diagram

	Part No.	Details
1	ST6170 708 7420 Available to backorder	Cap	£4.45 £3.71
0	ST6170 700 0440 Available to backorder	Wheel assy. 20" (Contains 14 - 16)	£182.64 £152.20
2	ST6170 763 0910 Available to backorder	Washer 42	£4.88 £4.07
3	ST6170 007 1003 In stock	Conversion kit (idler wheel)	£46.79 £38.99
4	ST6170 760 1291 Available to backorder	Idler pulley	£28.45 £23.71
4	ST6170 760 1290 Available to backorder	Idler pulley	£23.98 £19.98
5	ST6170 700 2531 Available to backorder	V-belt pulley (Contains 42)	£103.44 £86.20
6	ST6170 704 2120 In stock	V-belt	£59.52 £49.60
7	ST6170 704 2200 Available to backorder	Bolt lever	£16.97 £14.14
8	ST6160 642 8500 Available to backorder	Distance sleeve	£13.43 £11.19
9	ST6170 640 0100 Available to backorder	K46 BM	£1,361.45 £1,134.54
10	ST6170 764 2800 Available to backorder	Distance sleeve	£19.46 £16.22
11	ST6170 647 3500 Available to backorder	Lever	£32.77 £27.31
13	ST6170 160 2011 Available to backorder	Blade clutch (Contains 43-45)	£273.24 £227.70
13	ST6170 160 2010 Available to backorder	Blade clutch	£273.24 £227.70
14	ST0000 731 7700 Available to backorder	Valve	£7.97 £6.64
15	ST6170 704 9530 Available to backorder	Tyre 20x100-8	£138.60 £115.50
16	ST6170 760 3920 Available to backorder	Rim 85-8	£103.92 £86.60
17	ST0000 704 6703 Available to backorder	Hose 20x100 - 8	£39.71 £33.09
18	ST9991 003 0545 Available to backorder	Clamping ring 5	£1.72 £1.43
19	ST6170 764 2801 Available to backorder	Distance sleeve	£5.46 £4.55
20	ST6170 703 1920 Available to backorder	Collar bearing	£3.86 £3.22
21	ST9471 435 1622 Available to backorder	Key 3/16"SQx21/4"	£2.51 £2.09
22	ST9471 435 1602 Available to backorder	Key B1/4"SQx1"	£2.40 £2.00
25	ST9045 348 9050 Available to backorder	Pan head screw 7/16"x45"	£4.20 £3.50
26	ST9291 021 0330 Available to backorder	Washer 21	£0.91 £0.76
27	ST9008 318 1830 Available to backorder	Hexagon head screw M8x25	£1.26 £1.05
28	ST9008 318 1900 Available to backorder	Hexagon head screw M8x40	£1.46 £1.22
29	ST9008 319 1970 Available to backorder	Hexagon head screw M8x60	£2.05 £1.71
30	ST9460 624 6020 Available to backorder	E-clip 3/4"	£0.46 £0.38
31	ST9008 319 1930 Available to backorder	Hexagon head screw M8x45	£1.60 £1.33
32	ST9296 021 1657 Available to backorder	Washer 19x26x15	£0.68 £0.57
35	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
36	ST9291 020 0180 Available to backorder	Washer 84	£0.35 £0.29
38	ST6170 706 0745 Available to backorder	Cover	£32.32 £26.93
40	ST9008 319 1950 Available to backorder	Hexagon head screw M8x50	£1.82 £1.52
41	ST6160 706 0730 Available to backorder	Cover	£2.96 £2.47
42	ST6170 700 2505 Available to backorder	V-belt pulley	£63.84 £53.20
43	ST6140 007 1800 Available to backorder	Repair kit (brake lining)	£70.44 £58.70
100	ST6170 700 2511 Available to backorder	V-belt pulley	£103.92 £86.60
