Viking MT6112.0 ZL - Blade Drive - Parts Diagram

Name: Viking MT6112.0 ZL - Blade Drive - Parts Diagram
SKU: mt6112_0_zl_blade_drive-group
Price: 0.29 GBP
Availability: InStock

Part No. mt6112_0_zl_blade_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT6112.0 ZL - Blade Drive - Parts Diagram

Description

Viking MT6112.0 ZL - Blade Drive - Parts Diagram

	Part No.	Details
1	ST9039 488 1846 Available to backorder	Self-tapping screw M8x35	£1.46 £1.22
0	ST6170 700 3500 Available to backorder	Shaft assy. (Contains 3-6+11+12+15+18+25+32+35)	£151.80 £126.50
1	ST6170 700 3520 Available to backorder	Shaft assy. (Contains 4+5+8+9+11+13+15+25+32+35)	£140.76 £117.30
2	ST6170 760 1290 Available to backorder	Idler pulley	£23.98 £19.98
2	ST6170 760 1291 Available to backorder	Idler pulley	£28.45 £23.71
3	ST6170 764 8410 Available to backorder	V-belt pulley half	£23.66 £19.72
4	ST6170 702 1800 Available to backorder	Washer	£1.94 £1.62
5	ST6170 702 0600 Available to backorder	Carrier	£11.03 £9.19
6	ST6170 702 0700 Available to backorder	Shaft	£71.52 £59.60
8	ST6170 702 6900 Available to backorder	Bearing bracket	£84.72 £70.60
9	ST6170 764 8400 Available to backorder	V-belt pulley half	£14.57 £12.14
10	ST6170 704 1300 Available to backorder	Sheet metal holder	£58.03 £48.36
11	ST6170 702 2210 Available to backorder	Protection disk	£5.14 £4.28
13	ST6170 702 0710 Available to backorder	Shaft	£69.84 £58.20

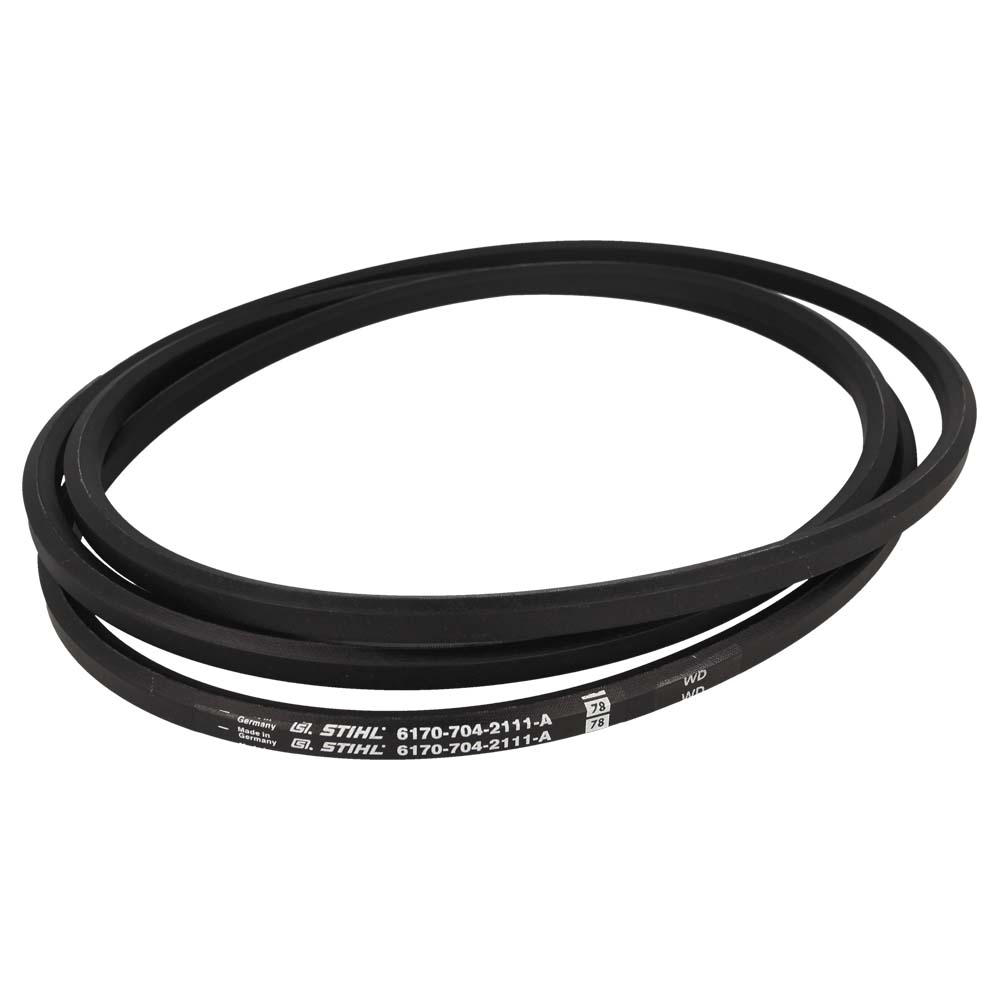

14	ST6170 704 2111 Available to backorder	V-belt	£85.20 £71.00
15	ST0000 702 6600 In stock	Washer	£4.48 £3.73
16	ST6170 760 0800 Available to backorder	Clamping arm	£29.36 £24.47
17	ST6170 704 9410 Available to backorder	Belt guide	£7.18 £5.98
18	ST6170 702 6910 In stock	Bearing bracket	£93.36 £77.80
19	ST6170 764 2801 Available to backorder	Distance sleeve	£5.46 £4.55
20	ST6170 703 1920 Available to backorder	Collar bearing	£3.86 £3.22
21	ST9039 488 1839 Available to backorder	Self-tapping screw M8x25	£1.26 £1.05
22	ST6170 162 7920 Available to backorder	Tension spring	£8.98 £7.48
23	ST9321 630 0180 Available to backorder	Spring washer 8	£1.03 £0.86
24	ST9307 021 0180 Available to backorder	Washer 84	£0.35 £0.29
25	ST9503 003 6841 In stock	Grooved ball bearing 6205-2RS	£15.10 £12.58
26	ST9008 319 1950 Available to backorder	Hexagon head screw M8x50	£1.82 £1.52
27	ST9008 318 1860 Available to backorder	Hexagon head screw M8x30	£1.37 £1.14
28	ST9008 319 1960 Available to backorder	Hexagon head screw M8x55	£1.94 £1.62
30	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
31	ST9291 020 0180 Available to backorder	Washer 84	£0.35 £0.29
32	ST9010 345 2431 In stock	Hexagon head screw M10x1x35	£1.66 £1.38
33	ST9008 318 1900 Available to backorder	Hexagon head screw M8x40	£1.46 £1.22
34	ST6160 706 0740 Available to backorder	Cover	£2.96 £2.47
35	ST9645 945 7699 In stock	O-ring 23x15	£0.68 £0.57
