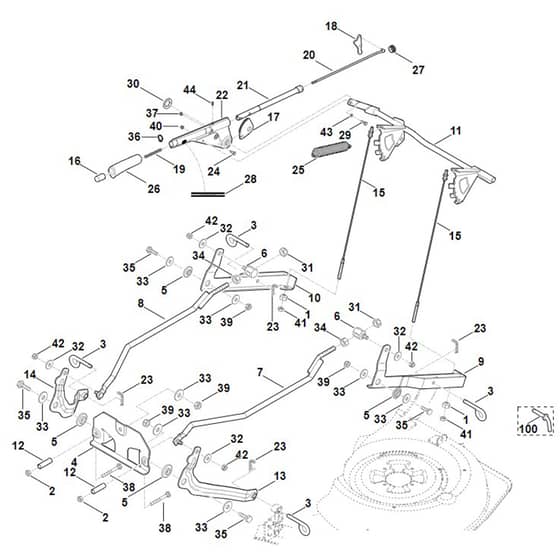

Viking MT6112.0 K - Height Adjustment - Parts Diagram

Name: Viking MT6112.0 K - Height Adjustment - Parts Diagram
SKU: mt6112_0_k_height_adjustment-group
Price: 0.28 GBP
Availability: InStock

Part No. mt6112_0_k_height_adjustment-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT6112.0 K - Height Adjustment - Parts Diagram

Description

Viking MT6112.0 K - Height Adjustment - Parts Diagram

	Part No.	Details
-1	ST6170 700 2900 Available to backorder	Adjusting lever assy. (Contains 16-22+24+26-29+36+37+40+43+44)	£137.52 £114.60
1	ST6170 703 2000 Available to backorder	Nut	£3.19 £2.66
2	ST9214 261 1105 In stock	Lock nut M8	£0.48 £0.40
3	ST6170 763 2330 Available to backorder	Detent bolt	£13.55 £11.29
9	ST6170 780 3700 Available to backorder	Rear left pivot assy	£74.28 £61.90
10	ST6170 780 3705 Available to backorder	Rear right pivot assy	£74.28 £61.90
11	ST6170 760 8410 Available to backorder	Rod	£114.36 £95.30
12	ST6170 763 0700 Available to backorder	Distance sleeve	£7.61 £6.34
13	ST6170 780 3710 Available to backorder	Front left pivot assy	£60.48 £50.40
14	ST6170 780 3715 Available to backorder	Front right pivot assy	£62.03 £51.69
15	ST6170 700 7500 Available to backorder	Cable	£16.61 £13.84
16	ST6170 763 3300 Available to backorder	Button	£3.77 £3.14
18	ST6170 703 7300 Available to backorder	Pawl	£8.42 £7.02
19	ST6170 703 6430 Available to backorder	Compression spring	£1.72 £1.43
20	ST6170 703 1770 Available to backorder	Rod	£23.44 £19.53
21	ST6170 760 8201 Available to backorder	Tube assy.	£61.45 £51.21
21	ST6170 760 8200 Available to backorder	Tube assy.	£33.86 £28.22
22	ST6170 700 2910 Available to backorder	Adjusting lever	£24.12 £20.10
23	ST6170 763 1000 Available to backorder	Spring clip 28	£2.51 £2.09
24	ST6170 703 9040 Available to backorder	Bolt	£1.03 £0.86
25	ST6170 703 5160 Available to backorder	Tension spring	£22.31 £18.59
26	ST6170 703 6631 Available to backorder	Knob	£9.91 £8.26
29	ST9008 319 1020 Available to backorder	Hexagon head screw M5x20	£0.91 £0.76
30	ST9417 021 7570 Available to backorder	Quick-fixing device	£1.72 £1.43
31	ST9212 263 1400 Available to backorder	Hexagon nut M12	£1.26 £1.05
32	ST9307 021 0180 Available to backorder	Washer 84	£0.35 £0.29
33	ST9307 020 0200 Available to backorder	Washer 105	£0.46 £0.38
34	ST9210 261 1400 In stock	Hexagon nut M12	£1.31 £1.09
35	ST9008 318 2410 Available to backorder	Hexagon head screw M10x30	£1.46 £1.22
36	ST9455 621 1380 In stock	Circlip 14x1	£0.83 £0.69
37	ST9212 260 0600 Available to backorder	Hexagon nut M4	£0.35 £0.29
38	ST9008 319 1970 Available to backorder	Hexagon head screw M8x60	£2.05 £1.71
39	ST9212 263 1300 Available to backorder	Hexagon nut M10	£0.91 £0.76
40	ST9212 260 0705 In stock	Hexagon nut M5	£0.34 £0.28
41	ST9210 259 1100 Available to backorder	Hexagon nut M8	£0.68 £0.57
42	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
43	ST9307 020 0120 Available to backorder	Washer 53	£0.35 £0.29
44	ST9566 003 1104 Available to backorder	Grub screw M4x9	£4.43 £3.69
44	ST9134 381 0651 Available to backorder	Grub screw M4x10	£0.79 £0.66
