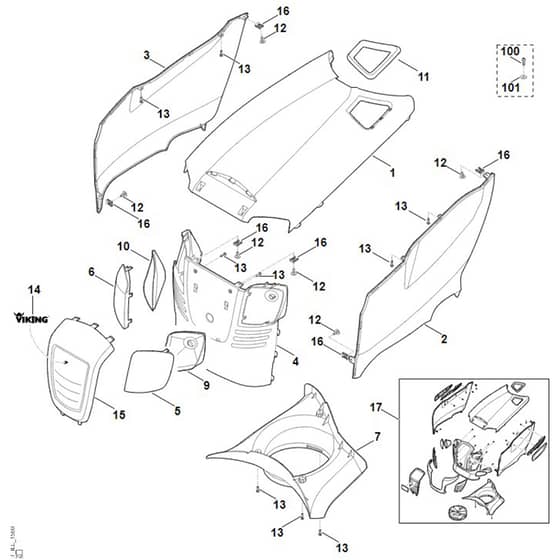

Viking MT6112.0 K - Engine Hood - Parts Diagram

Description

	Part No.	Details
1	ST6170 706 9600 Available to backorder	Engine hood	£66.56 £55.47
2	ST6170 706 9800 Available to backorder	Engine hood side panel left	£47.96 £39.97
3	ST6170 706 9805 Available to backorder	Engine hood side panel right	£46.10 £38.42
4	ST6170 706 9900 Available to backorder	Engine hood front panel	£71.50 £59.58
6	ST6170 405 3205 Available to backorder	Cover right	£24.42 £20.35
7	ST6170 087 3000 Available to backorder	Air guide cowl	£53.90 £44.92
9	ST6170 403 1200 Available to backorder	Reflector left	£22.54 £18.78
10	ST6170 403 1205 Available to backorder	Reflector right	£23.38 £19.48
11	ST6170 352 4000 Available to backorder	Overflow tray	£6.16 £5.13
13	ST9104 003 8734 Available to backorder	Self-tapping screw P4x16	£0.76 £0.63
14	ST6170 967 4420 Available to backorder	Sticker VIKING	£2.08 £1.73
15	ST6170 780 4200 Available to backorder	Panel assy. (Contains 14)	£46.30 £38.58
16	ST9991 003 0712 Available to backorder	Slip-on nut 48	£1.10 £0.92
17	ST6170 007 1060 Available to backorder	Conversion kit (engine hood assembly)	£193.92 £161.60
100	ST9102 090 3781 Available to backorder	Sheet metal screw 4.8 x 16	£0.88 £0.73
101	ST9307 020 0120 Available to backorder	Washer 53	£0.48 £0.40
