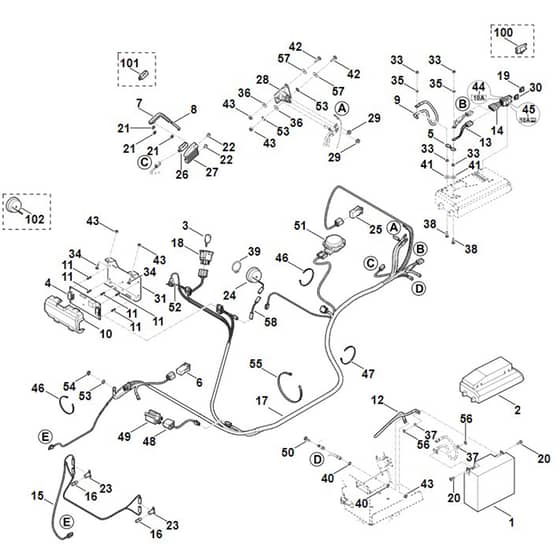

Viking MT6112.0 C - Electric Equipment - Parts Diagram

Description

Viking MT6112.0 C - Electric Equipment - Parts Diagram

	Part No.	Details
1	ST6170 400 1115 Available to backorder	Battery 12V-20Ah (Contains 20+37+56)	£157.32 £131.10
2	ST6170 403 0200 Available to backorder	Battery cover	£19.68 £16.40
3	ST0000 430 8101 In stock	Ignition key	£5.89 £4.91
4	ST6170 430 1405 Available to backorder	Electronic modul	£182.64 £152.20
5	ST6170 437 0800 Available to backorder	Retainer ring 150A	£4.00 £3.33
6	ST6170 430 0520 Available to backorder	Switch	£15.80 £13.17
7	ST6170 703 4400 Available to backorder	Feeder element	£3.31 £2.76
8	ST6170 703 7900 Available to backorder	Switch rod	£2.63 £2.19
10	ST6170 403 2210 Available to backorder	Cover	£6.49 £5.41
11	ST6170 405 1910 Available to backorder	Support	£2.51 £2.09
14	ST6170 440 1935 Available to backorder	Fuse holder	£22.31 £18.59
16	ST0000 405 3100 Available to backorder	Lamp 12V/10 W	£25.03 £20.86
17	ST6170 440 3020 Available to backorder	Wiring harness (Contains 13+14+19+30+44+45+52)	£206.64 £172.20
18	ST6170 430 2411 Available to backorder	Ignition lock (Contains 3)	£55.66 £46.38
19	ST0751 031 5002 Available to backorder	Fuse 10A	£3.41 £2.84
20	ST9008 318 0980 Available to backorder	Hexagon head screw M5x10	£0.91 £0.76
21	ST9991 003 0543 Available to backorder	Clamping ring 3	£1.82 £1.52
22	ST9104 007 4260 In stock	Self-tapping screw P5x12	£0.83 £0.69
23	ST6170 440 1800 Available to backorder	Socket	£20.15 £16.79
25	ST6170 430 0530 Available to backorder	Switch	£15.80 £13.17
26	ST6001 430 0210 In stock	Stop switch	£6.13 £5.11
27	ST6170 403 1300 Available to backorder	Housing	£5.36 £4.47
28	ST6170 430 3100 In stock	Relay	£56.58 £47.15
29	ST9991 003 0000 Available to backorder	Hexagon nut 1/4"	£1.14 £0.95
31	ST6170 763 5495 Available to backorder	Sheet metal holder	£28.22 £23.52
33	ST9210 259 0700 Available to backorder	Hexagon nut M5	£0.35 £0.29
34	ST9008 318 1280 Available to backorder	Hexagon head screw M6x16	£0.91 £0.76
35	ST9321 630 0120 Available to backorder	Spring washer 5	£0.91 £0.76
36	ST9307 021 0140 In stock	Washer 64	£0.34 £0.28
37	ST9291 020 0120 Available to backorder	Washer 53	£0.35 £0.29
39	ST9455 621 2790 Available to backorder	Circlip 25x12	£1.03 £0.86
40	ST9330 630 0140 Available to backorder	Shakeproof washer 6.4	£0.35 £0.29
41	ST9307 020 0120 Available to backorder	Washer 53	£0.35 £0.29
43	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
44	ST6170 967 4480 Available to backorder	Label 10A	£2.15 £1.79
45	ST6170 967 4495 Available to backorder	Label 10A	£2.15 £1.79
46	ST0751 010 7232 Available to backorder	Cable tie	£2.63 £2.19
47	ST0751 010 7054 Available to backorder	Cable tie	£2.51 £2.09
48	ST6170 440 1900 Available to backorder	Mechanical clutch cable	£14.92 £12.43
49	ST6170 435 0200 Available to backorder	Button	£21.17 £17.64
50	ST9008 318 1320 Available to backorder	Hexagon head screw M6x20	£0.91 £0.76
51	ST6170 430 0550 Available to backorder	Switch	£24.12 £20.10
52	ST6170 435 2600 Available to backorder	Plate (Charging symbol)	£2.63 £2.19
53	ST9330 630 0500 Available to backorder	Shakeproof washer 6.4	£0.35 £0.29
58	ST6170 440 0700 Available to backorder	Adapter cable	£9.34 £7.78
102	ST6170 430 8890 Available to backorder	Buzzer	£19.01 £15.84
