Viking MT585 L - Brake And Gearbox Control - Parts Diagram

Description

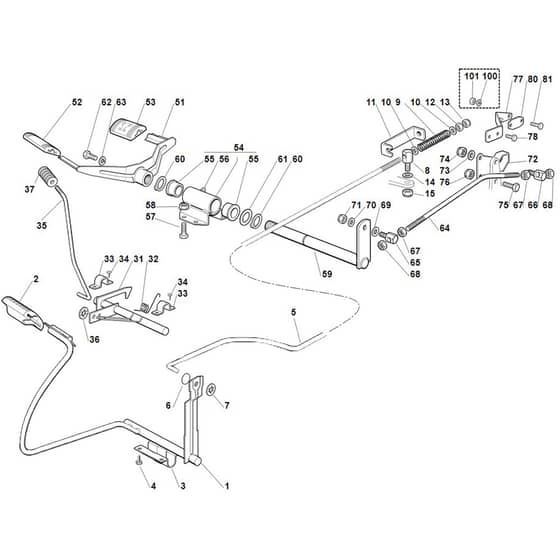

Viking MT585 L - Brake And Gearbox Control - Parts Diagram

	Part No.	Details
7	ST9991 003 0548 Available to backorder	Clamping ring 8	£1.72 £1.43
12	ST9210 260 1300 Available to backorder	Hexagon nut M10	£0.91 £0.76
13	ST9212 260 1300 Available to backorder	Hexagon nut M10	£0.91 £0.76
14	ST9291 020 0180 Available to backorder	Washer 84	£0.35 £0.29
15	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
34	ST9101 021 3780 Available to backorder	Self-tapping screw 4.8x16	£0.91 £0.76
56	ST9794 003 1851 Available to backorder	Grease Nipple M6	£1.46 £1.22
57	ST9008 318 1280 Available to backorder	Hexagon head screw M6x16	£0.91 £0.76
60	ST9455 621 2150 In stock	Circlip 20x1.2	£0.95 £0.79
62	ST9008 318 1780 Available to backorder	Hexagon head screw M8x16	£1.03 £0.86
63	ST9320 630 0180 Available to backorder	Spring washer 8	£0.48 £0.40
67	ST9210 259 1100 Available to backorder	Hexagon nut M8	£0.68 £0.57
70	ST9307 021 0140 In stock	Washer 64	£0.34 £0.28
71	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
75	ST9008 318 1320 Available to backorder	Hexagon head screw M6x20	£0.91 £0.76
78	ST9107 021 5002 Available to backorder	Self-tapping screw 4.8x13	£0.49 £0.41
101	ST9210 260 0400 Available to backorder	Hexagon nut M3	£0.35 £0.29
