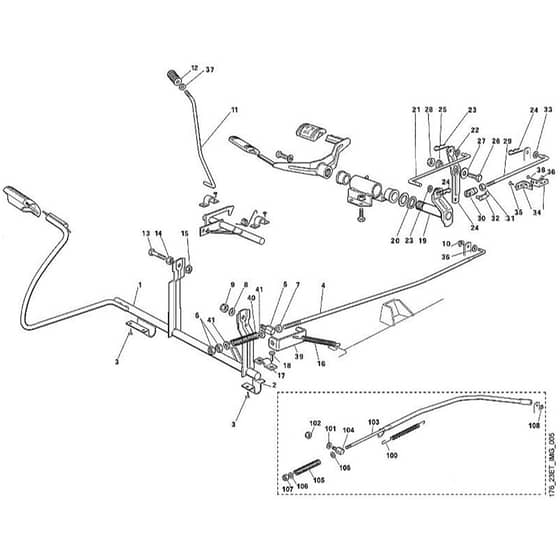

Viking MT580 - Brake And Gearbox Control 2 - Parts Diagram

Name: Viking MT580 - Brake And Gearbox Control 2 - Parts Diagram
SKU: mt580_brake_and_gearbox_control_2-group
Price: 0.29 GBP
Availability: InStock

Part No. mt580_brake_and_gearbox_control_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT580 - Brake And Gearbox Control 2 - Parts Diagram

Description

Viking MT580 - Brake And Gearbox Control 2 - Parts Diagram

	Part No.	Details
3	ST9101 021 3780 Available to backorder	Self-tapping screw 4.8x16	£0.91 £0.76
6	ST9210 260 1300 Available to backorder	Hexagon nut M10	£0.91 £0.76
13	ST9008 319 1860 Available to backorder	Hexagon head screw M8x30	£1.37 £1.14
14	ST9210 260 1100 In stock	Hexagon nut M8	£0.68 £0.57
20	ST9455 621 2150 In stock	Circlip 20x1.2	£0.95 £0.79
22	ST9291 021 0180 Available to backorder	Washer 8.4	£0.35 £0.29
26	ST9008 318 1800 Available to backorder	Hexagon head screw M8x20	£1.03 £0.86
27	ST9307 021 0180 Available to backorder	Washer 84	£0.35 £0.29
30	ST9666 003 0220 Available to backorder	Forkhead 8x16	£8.65 £7.21
32	ST9666 003 9020 Available to backorder	Bolt	£1.60 £1.33
35	ST9107 021 5002 Available to backorder	Self-tapping screw 4.8x13	£0.49 £0.41
38	ST9039 488 1782 Available to backorder	Self-tapping screw M8x16	£1.03 £0.86
102	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
106	ST9291 020 0140 Available to backorder	Washer 64	£0.35 £0.29
107	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
