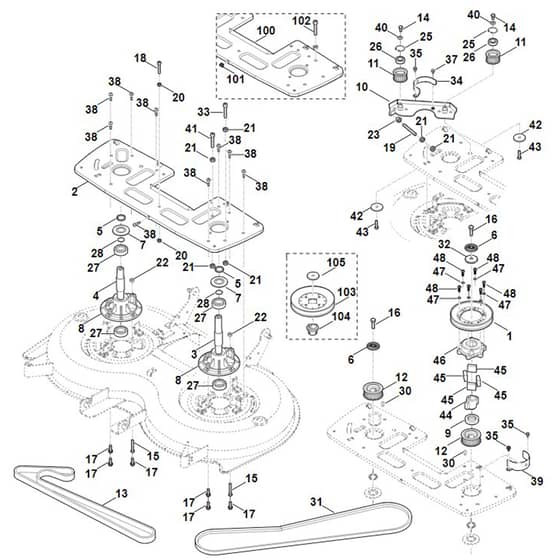

Viking MT5112.1 Z - Blade Drive - Parts Diagram

Description

Viking MT5112.1 Z - Blade Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	ST6170 700 3530 Available to backorder	Shaft left assy. (Contains 1+3+5-9+12+16+27+28+32)	£166.10 £138.42
1	ST6170 700 2540 Available to backorder	V-belt pulley with torsional damper (Contains 44-48)	£94.60 £78.83
1	ST6170 700 3531 Available to backorder	Shaft left assy. (Contains 1+3+5-9+12+16+27+28+32)	£166.10 £138.42
2	ST6170 700 3540 Available to backorder	Shaft right assy. (Contains 4-8+12+16+27+28+32)	£147.40 £122.83
3	ST6170 702 0720 Available to backorder	Shaft left	£73.70 £61.42
3	ST6170 702 0721 Available to backorder	Shaft left	£79.20 £66.00
4	ST6170 702 0730 Available to backorder	Shaft right	£66.56 £55.47
5	ST6170 702 1710 Available to backorder	Spacer ring	£7.16 £5.97
6	ST0000 702 6600 In stock	Washer	£4.18 £3.48
7	ST6170 702 2210 Available to backorder	Protection disk	£4.96 £4.13
8	ST6170 702 6910 Available to backorder	Bearing bracket	£90.20 £75.17
9	ST6170 702 1711 Available to backorder	Spacer ring	£16.94 £14.12
10	ST6170 760 0820 Available to backorder	Clamping arm	£38.94 £32.45
11	ST6170 760 7500 Available to backorder	Toothed-belt pulley 20Z (Contains 25+26)	£38.62 £32.18
12	ST6170 760 7510 Available to backorder	Toothed-belt pulley 28Z	£68.20 £56.83
13	ST6170 764 0900 Available to backorder	Toothed belt double-sided	£136.20 £113.50
14	ST9008 318 1780 Available to backorder	Hexagon head screw M8x16	£1.00 £0.83
15	ST9008 319 1950 Available to backorder	Hexagon head screw M8x50	£1.76 £1.47
16	ST9010 345 2431 In stock	Hexagon head screw M10x1x35	£1.54 £1.28
17	ST9039 488 1839 Available to backorder	Self-tapping screw M8x25	£1.22 £1.02
18	ST9045 318 1950 Available to backorder	Pan head screw M8x50	£1.76 £1.47
19	ST9133 381 2510 Available to backorder	Grub screw M10x80	£2.86 £2.38
20	ST9210 259 1100 Available to backorder	Hexagon nut M8	£0.66 £0.55
21	ST9210 261 1300 Available to backorder	Hexagon nut M10	£0.88 £0.73
22	ST9212 260 1100 In stock	Hexagon nut M8	£0.66 £0.55
23	ST9241 226 1301 Available to backorder	Cap nut M10	£1.22 £1.02
25	ST9456 621 3860 Available to backorder	Circlip 35x1.5	£1.32 £1.10
26	ST9503 003 6527 Available to backorder	Grooved ball bearing 6202-2RS	£9.14 £7.62
27	ST9503 003 6841 Available to backorder	Grooved ball bearing 6205-2RS	£14.08 £11.73
28	ST9645 945 7699 Available to backorder	O-ring 23x15	£0.66 £0.55
30	ST9470 435 3870 In stock	Key 8x7x20	£2.08 £1.73
31	ST6170 704 2150 In stock	V-belt	£58.30 £48.58
32	ST6170 702 1805 Available to backorder	Washer	£7.60 £6.33
34	ST6170 704 9425 Available to backorder	Belt guide right	£17.16 £14.30
35	ST9039 488 0996 Available to backorder	Self-tapping screw M6x12	£0.76 £0.63
37	ST9018 318 1250 Available to backorder	Hexagon head screw M6x10	£0.76 £0.63
38	ST9039 488 1784 Available to backorder	Self-tapping screw M8x16	£1.00 £0.83
39	ST6170 704 9420 Available to backorder	Belt guide left	£21.78 £18.15
40	ST9309 021 0180 Available to backorder	Washer 8.4	£0.48 £0.40
41	ST9045 318 2521 Available to backorder	Socket head screw M10x80	£2.86 £2.38
44	ST6140 704 7000 Available to backorder	Carrier	£32.90 £27.42
45	ST6140 708 2800 Available to backorder	Buffer	£2.08 £1.73
46	ST6170 764 0410 Available to backorder	Hub	£23.86 £19.88
47	ST9330 630 0140 Available to backorder	Shakeproof washer 6.4	£0.48 £0.40
100	ST6170 701 5101 Available to backorder	Bearing plate	£97.90 £81.58
101	ST9991 003 1045 Available to backorder	Cage nut M6	£1.32 £1.10
102	ST9045 318 2500 Available to backorder	Socket head screw M10x70	£2.54 £2.12
103	ST6170 700 2525 Available to backorder	V-belt pulley	£83.06 £69.22
104	ST6170 704 7000 In stock	Carrier	£21.34 £17.78
105	ST6170 702 1800 Available to backorder	Washer	£1.88 £1.57
