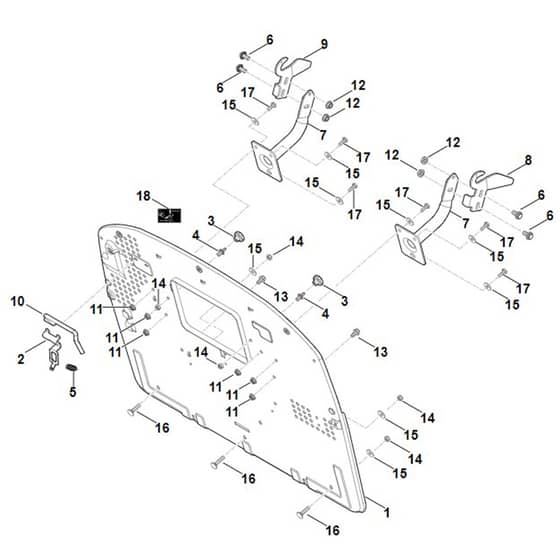

Viking MT5112.1 Z - Back Panel - Parts Diagram

Viking MT5112.1 Z - Back Panel - Parts Diagram

Description

Viking MT5112.1 Z - Back Panel - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		ST6170 763 1130 Available to backorder	Back panel		£223.44 £186.20
	2		ST6170 435 6100 Available to backorder	Sheet metal holder		£15.18 £12.65
	3		ST6170 760 1800 Available to backorder	Rotary handle		£3.64 £3.03
	4		ST6170 763 2310 Available to backorder	Detent bolt		£2.98 £2.48
	5		ST6170 703 5130 Available to backorder	Tension spring		£1.54 £1.28
	6		ST9018 318 2361 Available to backorder	Hexagon head screw M10x20		£1.22 £1.02
	7		ST6170 700 6801 Available to backorder	Support		£44.78 £37.32
	8		ST6170 763 5902 Available to backorder	Guide plate left		£33.10 £27.58
	9		ST6170 763 5907 Available to backorder	Guide plate right		£32.44 £27.03
	10		ST6170 435 1501 Available to backorder	Bow		£23.76 £19.80
	11		ST9220 263 1100 Available to backorder	Hexagon nut M8		£0.76 £0.63
	12		ST9220 260 8506 Available to backorder	Hexagon nut M10		£0.88 £0.73
	13		ST9039 488 1782 Available to backorder	Self-tapping screw M8x16		£1.00 £0.83
	14		ST9212 260 1100 In stock	Hexagon nut M8		£0.66 £0.55
	15		ST9307 021 0180 Available to backorder	Washer 84		£0.48 £0.40
	16		ST9027 068 1880 Available to backorder	Screw M8x35		£1.42 £1.18
	17		ST9008 318 1800 Available to backorder	Hexagon head screw M8x20		£1.00 £0.83
	18		ST6170 967 4405 Available to backorder	Label		£2.08 £1.73
