Viking MT5097.1 - Mowing Deck Housing - Parts Diagram

Description

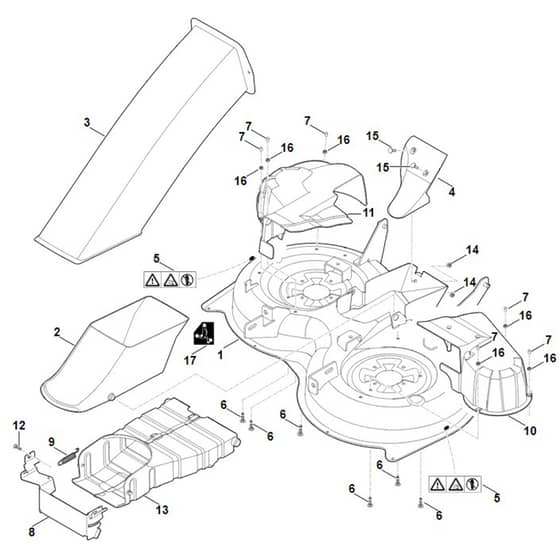

Viking MT5097.1 - Mowing Deck Housing - Parts Diagram

	Part No.	Details
1	ST6160 700 8520 Available to backorder	Housing (Contains 5)	£403.13 £335.94
0	ST6160 760 0910 Available to backorder	mowing unit assy. (Contains L 1+2+4-7+10+11+13-17 + M 1-32)	£814.97 £679.14
2	ST6160 763 1400 Available to backorder	Ejection chute lower part	£81.96 £68.30
3	ST6160 760 5100 Available to backorder	Ejection chute upper part	£77.52 £64.60
4	ST6160 701 1600 Available to backorder	Insert	£42.79 £35.66
5	ST6170 967 4435 Available to backorder	Warning note	£2.15 £1.79
6	ST9027 068 1372 Available to backorder	Flat head screw M6x30	£1.26 £1.05
7	ST9302 929 4505 Available to backorder	Cap	£0.58 £0.48
8	ST6165 706 8200 Available to backorder	Guard plate	£38.14 £31.78
9	ST6165 703 5130 In stock	Tension spring	£3.06 £2.55
10	ST6160 780 2000 Available to backorder	Guard left	£49.39 £41.16
11	ST6160 706 0815 Available to backorder	Guard right	£32.44 £27.03
12	ST6165 706 9500 Available to backorder	Screw M6x20	£8.09 £6.74
13	ST6165 780 2050 Available to backorder	Cover	£67.08 £55.90
14	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.68 £0.57
15	ST9027 068 1350 Available to backorder	Flat head screw M6x25	£1.03 £0.86
16	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
17	ST6165 967 4415 Available to backorder	Label	£2.15 £1.79
