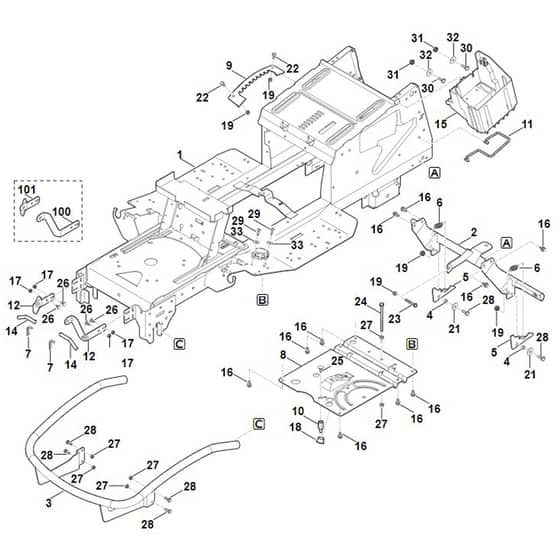

Viking MT5097.1 C - Frame - Parts Diagram

Name: Viking MT5097.1 C - Frame - Parts Diagram
SKU: mt5097_1_c_frame-group
Price: 0.29 GBP
Availability: InStock

Part No. mt5097_1_c_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT5097.1 C - Frame - Parts Diagram

Description

Viking MT5097.1 C - Frame - Parts Diagram

	Part No.	Details
1	ST6170 700 3105 Available to backorder	Frame	£570.24 £475.20
2	ST6170 760 9105 Available to backorder	Support	£97.92 £81.60
3	ST6907 760 7310 Available to backorder	Bumper bar	£157.32 £131.10
4	ST6170 763 0720 Available to backorder	Distance sleeve	£1.46 £1.22
5	ST6170 763 6010 Available to backorder	Interlock lever	£10.01 £8.34
6	ST6170 703 5120 Available to backorder	Tension spring	£1.94 £1.62
7	ST6170 763 1000 Available to backorder	Spring clip 28	£2.51 £2.09
8	ST6165 703 8910 Available to backorder	Plate	£133.08 £110.90
9	ST6165 703 9500 Available to backorder	Notched plate	£33.35 £27.79
10	ST6165 704 1820 Available to backorder	Bolt	£6.04 £5.03
11	ST6170 403 0410 Available to backorder	Battery holder	£26.86 £22.38
14	ST6170 763 6300 Available to backorder	Socket bolt	£5.36 £4.47
15	ST6170 403 0102 Available to backorder	Battery mounting	£33.35 £27.79
16	ST9039 488 1782 Available to backorder	Self-tapping screw M8x16	£1.03 £0.86
17	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.68 £0.57
18	ST9533 003 9246 Available to backorder	Flange sleeve	£7.51 £6.26
19	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
21	ST9307 021 0180 Available to backorder	Washer 84	£0.35 £0.29
22	ST9008 318 1780 Available to backorder	Hexagon head screw M8x16	£1.03 £0.86
23	ST9008 319 1950 Available to backorder	Hexagon head screw M8x50	£1.82 £1.52
24	ST9008 319 2080 Available to backorder	Hexagon head screw M8x130	£3.64 £3.03
25	ST9027 318 1820 Available to backorder	Flat head screw M8x20	£1.03 £0.86
26	ST9027 068 1280 Available to backorder	Flat head screw M6x16	£0.91 £0.76
27	ST9210 259 1100 Available to backorder	Hexagon nut M8	£0.68 £0.57
28	ST9008 318 1800 Available to backorder	Hexagon head screw M8x20	£1.03 £0.86
29	ST9039 488 1287 Available to backorder	Self-tapping screw M6x22	£1.03 £0.86
32	ST9310 021 0180 Available to backorder	Washer 8.4	£0.35 £0.29
33	ST9307 010 0140 Available to backorder	Washer 64	£0.35 £0.29
100	ST6170 007 1002 Available to backorder	Hinge left	£45.74 £38.12
