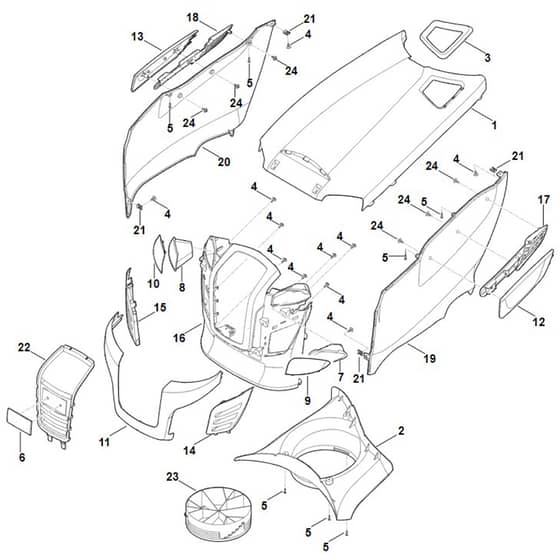

Viking MT5097.1 C - Engine Hood - Parts Diagram

Description

Viking MT5097.1 C - Engine Hood - Parts Diagram

	Part No.	Details
1	ST6170 706 9600 Available to backorder	Engine hood	£66.60 £55.50
2	ST6170 087 3000 Available to backorder	Air guide cowl	£55.76 £46.47
3	ST6170 352 4000 Available to backorder	Overflow tray	£6.37 £5.31
5	ST9104 003 8734 Available to backorder	Self-tapping screw P4x16	£0.79 £0.66
6	ST0000 967 1010 Available to backorder	Plate	£4.68 £3.90
7	ST6170 403 1210 Available to backorder	Reflector left	£19.57 £16.31
8	ST6170 403 1215 Available to backorder	Reflector right	£20.59 £17.16
9	ST6170 405 3210 Available to backorder	Cover left	£13.08 £10.90
10	ST6170 405 3215 Available to backorder	Cover right	£12.86 £10.72
11	ST6170 706 3611 Available to backorder	Bumper	£44.28 £36.90
12	ST6170 706 3620 Available to backorder	Panel left	£10.14 £8.45
13	ST6170 706 3625 Available to backorder	Panel right	£12.64 £10.53
14	ST6170 706 5710 Available to backorder	Grille left	£10.14 £8.45
15	ST6170 706 5715 Available to backorder	Grille right	£10.14 £8.45
16	ST6170 706 9910 Available to backorder	Engine hood front panel	£74.28 £61.90
17	ST6170 766 0800 Available to backorder	Air guide insert left	£10.14 £8.45
18	ST6170 766 0805 Available to backorder	Air guide insert right	£9.23 £7.69
19	ST6170 706 9810 Available to backorder	Engine hood side panel left	£57.91 £48.26
20	ST6170 706 9815 Available to backorder	Engine hood side panel right	£52.68 £43.90
21	ST9991 003 0712 Available to backorder	Slip-on nut 48	£1.14 £0.95
22	ST6170 780 5500 Available to backorder	Grille assy. (Contains 6)	£32.09 £26.74
23	ST6170 084 1900 Available to backorder	Air guide ring	£27.54 £22.95
24	ST9102 090 3781 Available to backorder	Sheet metal screw with washer 4.8 x 16	£0.91 £0.76
