Viking MT5097.0 Z - Height Adjustment - Parts Diagram

Description

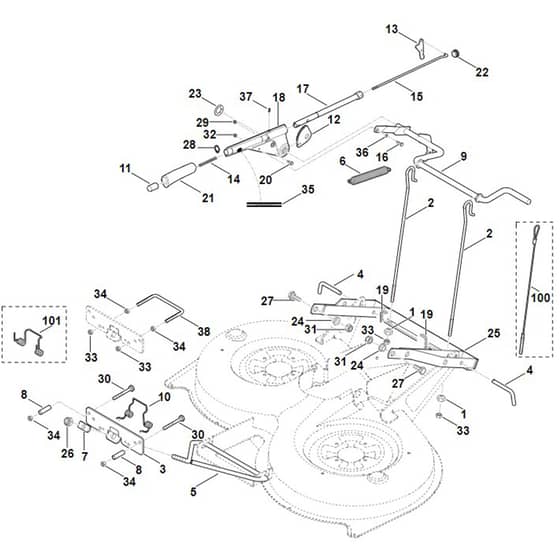

Viking MT5097.0 Z - Height Adjustment - Parts Diagram

	Part No.	Details
1	ST6170 703 2000 Available to backorder	Nut	£3.19 £2.66
0	ST6170 700 2900 Available to backorder	Adjusting lever assy. (Contains 11-18+20-22+28+29+32+35-37)	£137.52 £114.60
3	ST6170 763 5425 Available to backorder	Sheet metal holder	£41.20 £34.33
4	ST6170 763 2300 Available to backorder	Detent bolt	£9.91 £8.26
5	ST6160 763 5600 Available to backorder	Pivot	£70.44 £58.70
7	ST6160 763 4100 Available to backorder	Hinge element	£6.25 £5.21
8	ST6170 763 0700 Available to backorder	Distance sleeve	£7.61 £6.34
10	ST6140 703 4930 Available to backorder	Torsion spring	£4.68 £3.90
11	ST6170 763 3300 Available to backorder	Button	£3.77 £3.14
13	ST6170 703 7300 Available to backorder	Pawl	£8.42 £7.02
14	ST6170 703 6430 Available to backorder	Compression spring	£1.72 £1.43
15	ST6170 703 1770 Available to backorder	Rod	£23.44 £19.53
16	ST9008 319 1020 Available to backorder	Hexagon head screw M5x20	£0.91 £0.76
17	ST6170 760 8200 Available to backorder	Tube assy.	£33.86 £28.22
17	ST6170 760 8201 Available to backorder	Tube assy.	£61.45 £51.21
18	ST6170 700 2910 Available to backorder	Adjusting lever	£24.12 £20.10
19	ST6170 763 1000 Available to backorder	Spring clip 28	£2.51 £2.09
20	ST6170 703 9040 Available to backorder	Bolt	£1.03 £0.86
21	ST6170 703 6631 Available to backorder	Knob	£9.91 £8.26
23	ST9417 021 7570 Available to backorder	Quick-fixing device	£1.72 £1.43
25	ST6160 760 7800 Available to backorder	Suspension	£136.44 £113.70
26	ST9212 263 1400 Available to backorder	Hexagon nut M12	£1.26 £1.05
27	ST9008 318 2390 In stock	Hexagon head screw M10x25	£1.43 £1.19
28	ST9455 621 1380 In stock	Circlip 14x1	£0.83 £0.69
29	ST9212 260 0600 Available to backorder	Hexagon nut M4	£0.35 £0.29
30	ST9008 319 1970 Available to backorder	Hexagon head screw M8x60	£2.05 £1.71
31	ST9212 263 1300 Available to backorder	Hexagon nut M10	£0.91 £0.76
32	ST9212 260 0705 In stock	Hexagon nut M5	£0.34 £0.28
33	ST9210 259 1100 Available to backorder	Hexagon nut M8	£0.68 £0.57
34	ST9214 261 1105 In stock	Lock nut M8	£0.48 £0.40
36	ST9307 020 0120 Available to backorder	Washer 53	£0.35 £0.29
37	ST9134 381 0651 Available to backorder	Grub screw M4x10	£0.79 £0.66
37	ST9566 003 1104 Available to backorder	Grub screw M4x9	£4.43 £3.69
38	ST6170 763 0440 Available to backorder	Bow	£12.40 £10.33
100	ST6160 703 1720 Available to backorder	Cable	£35.96 £29.97
