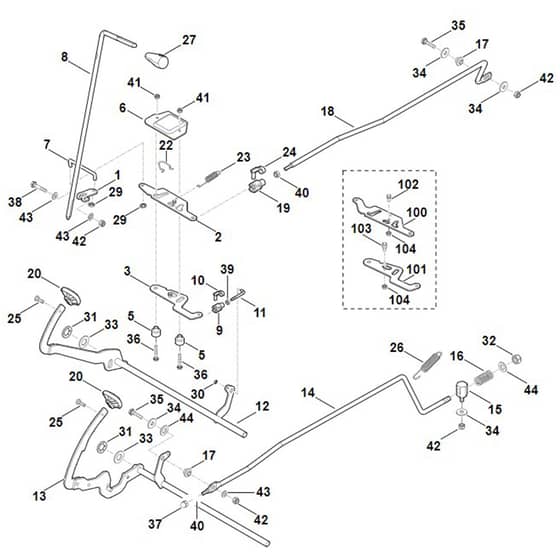

Viking MT5097.0 Z - Brake And Gearbox Control - Parts Diagram

Name: Viking MT5097.0 Z - Brake And Gearbox Control - Parts Diagram
SKU: mt5097_0_z_brake_and_gearbox_control-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT5097.0 Z - Brake And Gearbox Control - Parts Diagram

Description

Viking MT5097.0 Z - Brake And Gearbox Control - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6170 162 5010 Available to backorder	Lever	£3.64 £3.03
2	ST6140 007 1000 Available to backorder	Lever and rocker set (driving direction selector) (Contains 3)	£40.16 £33.47
5	ST6170 764 3600 Available to backorder	Collar bolt	£1.88 £1.57
6	ST6170 704 3600 Available to backorder	Cover	£45.54 £37.95
7	ST6170 704 9810 Available to backorder	Rod	£25.30 £21.08
8	ST6170 764 3400 Available to backorder	Switch rod	£56.66 £47.22
9	ST9666 021 0200 Available to backorder	Forkhead 6x12	£4.06 £3.38
10	ST9666 021 9003 Available to backorder	Bolt 6x12	£1.10 £0.92
11	ST6170 704 9800 Available to backorder	Rod	£9.34 £7.78
16	ST6170 703 6410 Available to backorder	Compression spring	£3.08 £2.57
19	ST9666 003 0220 Available to backorder	Forkhead 8x16	£8.36 £6.97
20	ST6170 704 7100 Available to backorder	Pedal rubber	£4.30 £3.58
22	ST6170 708 0300 Available to backorder	Spring clip	£1.66 £1.38
23	ST6170 703 5110 Available to backorder	Tension spring	£2.98 £2.48
24	ST9666 003 9020 Available to backorder	Bolt	£1.54 £1.28
25	ST9039 488 1287 Available to backorder	Self-tapping screw M6x22	£1.00 £0.83
26	ST6170 703 5150 Available to backorder	Tension spring	£5.84 £4.87
27	ST6170 703 6625 Available to backorder	Knob	£12.98 £10.82
29	ST9991 003 0548 Available to backorder	Clamping ring 8	£1.66 £1.38
30	ST9991 003 0546 Available to backorder	Clamping ring 6	£1.66 £1.38
31	ST9417 021 7570 Available to backorder	Quick-fixing device	£1.66 £1.38
32	ST9212 263 1400 Available to backorder	Hexagon nut M12	£1.22 £1.02
33	ST9291 021 0280 Available to backorder	Washer 17	£0.66 £0.55
34	ST9307 021 0180 Available to backorder	Washer 84	£0.48 £0.40
35	ST9008 318 1860 Available to backorder	Hexagon head screw M8x30	£1.32 £1.10
36	ST9008 319 1380 Available to backorder	Hexagon head screw M6x35	£1.22 £1.02
37	ST9241 226 1100 Available to backorder	Cap nut M8	£0.62 £0.52
38	ST9008 319 1880 Available to backorder	Hexagon head screw M8x35	£1.42 £1.18
39	ST9210 260 0900 Available to backorder	Hexagon nut M6	£0.48 £0.40
40	ST9210 259 1100 Available to backorder	Hexagon nut M8	£0.66 £0.55
41	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
42	ST9212 260 1100 In stock	Hexagon nut M8	£0.66 £0.55
43	ST9291 020 0180 Available to backorder	Washer 84	£0.48 £0.40
44	ST9291 020 0220 Available to backorder	Washer 13	£0.48 £0.40
104	ST9214 261 0900 Available to backorder	Lock nut M6	£0.48 £0.40
