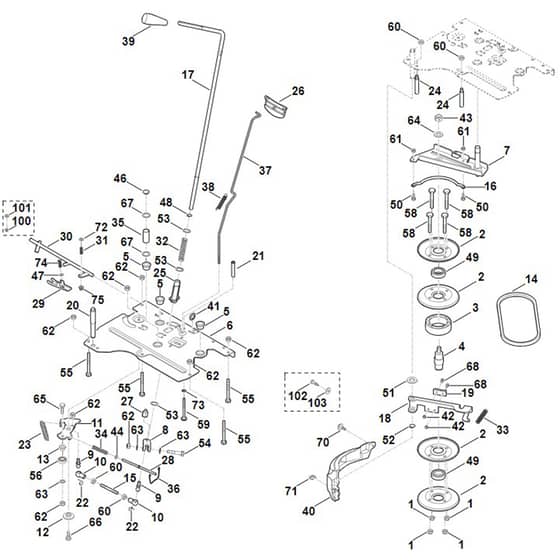

Viking MT5097.0 Z - Blade Brake Clutch, Parking Brake - Parts Diagram

Description

Viking MT5097.0 Z - Blade Brake Clutch, Parking Brake - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST9214 261 1105 In stock	Lock nut M8	£0.48 £0.40
2	ST6170 162 4100 Available to backorder	V-belt pulley	£25.18 £20.98
3	ST6170 162 2600 Available to backorder	Spacer ring	£27.24 £22.70
4	ST6170 162 2200 Available to backorder	Bearing bolt	£14.52 £12.10
5	ST6170 162 3700 Available to backorder	Bearing bushing	£5.84 £4.87
8	ST6170 162 5010 Available to backorder	Lever	£3.64 £3.03
9	ST9666 003 5110 Available to backorder	Ball stud C13	£4.72 £3.93
10	ST9666 003 7023 Available to backorder	Ball socket B13	£6.04 £5.03
11	ST6170 162 5000 Available to backorder	Lever	£9.14 £7.62
12	ST6170 162 8900 Available to backorder	Washer	£3.52 £2.93
13	ST6170 162 6100 Available to backorder	Sleeve	£3.30 £2.75
14	ST6170 704 2130 Available to backorder	V-belt	£31.02 £25.85
15	ST6170 162 9500 Available to backorder	Threaded rod	£3.08 £2.57
16	ST6170 162 3800 Available to backorder	Belt guide	£22.78 £18.98
17	ST6170 162 9600 Available to backorder	Switch lever	£29.92 £24.93
18	ST6170 162 2500 Available to backorder	Brake lever	£36.40 £30.33
19	ST6170 162 6300 Available to backorder	Brake shoe	£30.92 £25.77
22	ST9666 003 7013 Available to backorder	Circlip	£1.66 £1.38
23	ST6170 162 7900 Available to backorder	Tension spring	£2.98 £2.48
25	ST6170 162 6800 Available to backorder	Bushing	£25.84 £21.53
26	ST6170 706 2200 Available to backorder	Knob	£6.82 £5.68
27	ST6170 162 5220 Available to backorder	Bolt	£1.54 £1.28
28	ST6170 432 2600 Available to backorder	Rod	£4.96 £4.13
31	ST6170 703 6420 Available to backorder	Compression spring	£1.10 £0.92
32	ST6170 162 7700 Available to backorder	Compression spring	£1.66 £1.38
33	ST6170 162 7910 Available to backorder	Tension spring	£2.08 £1.73
34	ST6170 435 8700 Available to backorder	Spring	£1.32 £1.10
35	ST6170 162 9100 Available to backorder	Distance sleeve 16x20x43 mm	£16.18 £13.48
36	ST6170 435 1510 Available to backorder	Bow	£2.32 £1.93
37	ST6170 703 1780 Available to backorder	Rod	£31.68 £26.40
38	ST6170 703 5140 Available to backorder	Tension spring	£1.88 £1.57
39	ST6170 703 6620 Available to backorder	Knob	£13.30 £11.08
40	ST6170 706 0821 Available to backorder	Guard	£7.64 £6.37
41	ST9991 003 0550 Available to backorder	Clamping ring 10x2	£1.66 £1.38
43	ST9212 263 1400 Available to backorder	Hexagon nut M12	£1.22 £1.02
44	ST9291 020 0140 Available to backorder	Washer 64	£0.48 £0.40
46	ST9455 621 1670 Available to backorder	Circlip 16x1	£0.88 £0.73
47	ST9307 021 0100 Available to backorder	Washer 43	£0.48 £0.40
48	ST9455 621 1130 In stock	Circlip 12x1	£0.66 £0.55
49	ST9503 003 5551 Available to backorder	Deep-groove ball bearing 6005	£10.34 £8.62
50	ST9008 318 1280 Available to backorder	Hexagon head screw M6x16	£0.88 £0.73
52	ST9455 621 1380 In stock	Circlip 14x1	£0.77 £0.64
53	ST9296 021 1280 Available to backorder	Washer 12x18x1	£0.48 £0.40
54	ST9008 319 1880 Available to backorder	Hexagon head screw M8x35	£1.42 £1.18
55	ST9008 319 1990 Available to backorder	Hexagon head screw M8x70	£0.62 £0.52
58	ST9008 319 1930 Available to backorder	Hexagon head screw M8x45	£1.54 £1.28
59	ST9039 488 1460 Available to backorder	Self-tapping screw M6x65	£1.76 £1.47
60	ST9210 259 1100 Available to backorder	Hexagon nut M8	£0.66 £0.55
61	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
62	ST9212 260 1100 In stock	Hexagon nut M8	£0.66 £0.55
63	ST9291 020 0180 Available to backorder	Washer 84	£0.48 £0.40
64	ST9291 020 0220 Available to backorder	Washer 13	£0.48 £0.40
65	ST9008 318 1830 Available to backorder	Hexagon head screw M8x25	£1.22 £1.02
66	ST9008 318 1800 Available to backorder	Hexagon head screw M8x20	£1.00 £0.83
67	ST9296 021 1642 Available to backorder	Shim ring 16x22x1	£0.66 £0.55
68	ST9020 318 0980 Available to backorder	Pan head screw M5x16	£0.88 £0.73
70	ST9039 488 1289 Available to backorder	Self-tapping screw M6x25	£1.00 £0.83
71	ST9460 624 0900 Available to backorder	E-clip 9	£0.48 £0.40
73	ST9330 630 0500 Available to backorder	Shakeproof washer 6.4	£0.48 £0.40
74	ST6170 703 6421 Available to backorder	Compression spring	£1.10 £0.92
75	ST9216 261 0710 Available to backorder	Hexagon nut M5	£0.48 £0.40
100	ST9212 260 0705 In stock	Hexagon nut M5	£0.34 £0.28
101	ST9291 020 0120 Available to backorder	Washer 53	£0.48 £0.40
102	ST9039 499 1285 Available to backorder	Self-tapping screw M6x23	£2.36 £1.97
103	ST9307 021 0140 In stock	Washer 64	£0.34 £0.28
