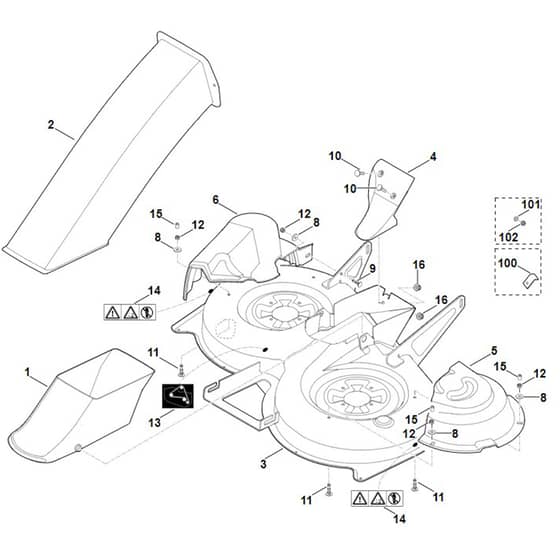

Viking MT5097.0 - Mowing Deck Housing - Parts Diagram

Name: Viking MT5097.0 - Mowing Deck Housing - Parts Diagram
SKU: mt5097_0_mowing_deck_housing-group
Price: 0.28 GBP
Availability: InStock

Part No. mt5097_0_mowing_deck_housing-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT5097.0 - Mowing Deck Housing - Parts Diagram

Description

Viking MT5097.0 - Mowing Deck Housing - Parts Diagram

	Part No.	Details
1	ST6160 763 1400 Available to backorder	Ejection chute lower part	£81.96 £68.30
0	ST6160 760 0901 Available to backorder	Mowing unit assy. (Contains N 3-15 + O 1-35)	£1,074.00 £895.00
2	ST6160 763 1405 Available to backorder	Discharge chute	£78.12 £65.10
4	ST6160 701 1600 Available to backorder	Insert	£42.79 £35.66
5	ST6160 706 0801 Available to backorder	Guard left	£32.32 £26.93
6	ST6160 706 0806 Available to backorder	Guard right	£34.37 £28.64
8	ST9307 021 0140 In stock	Washer 64	£0.34 £0.28
9	ST9008 318 1320 Available to backorder	Hexagon head screw M6x20	£0.91 £0.76
10	ST9027 068 1350 Available to backorder	Flat head screw M6x25	£1.03 £0.86
11	ST9027 068 1280 Available to backorder	Flat head screw M6x16	£0.91 £0.76
11	ST9027 068 1372 Available to backorder	Flat head screw M6x30	£1.26 £1.05
13	ST6160 967 4400 Available to backorder	Label	£12.00 £10.00
14	ST6170 967 4435 Available to backorder	Warning note	£2.15 £1.79
15	ST9302 929 4505 Available to backorder	Cap	£0.58 £0.48
16	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.68 £0.57
101	ST9291 020 0140 Available to backorder	Washer 64	£0.35 £0.29
102	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
