Viking MT5097.0 K - Dashboard - Parts Diagram

Viking MT5097.0 K - Dashboard - Parts Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

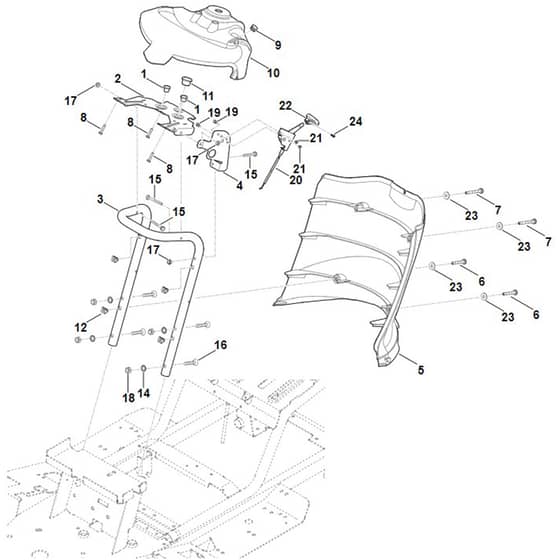

Viking MT5097.0 K - Dashboard - Parts Diagram

Viking MT5097.0 K - Dashboard - Parts Diagram

Description

Viking MT5097.0 K - Dashboard - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		ST9533 003 9223 Available to backorder	Collar bushing		£2.86 £2.38
	2		ST6170 703 6200 Available to backorder	Bracket		£48.18 £40.15
	4		ST6170 763 5450 Available to backorder	Sheet metal holder		£15.18 £12.65
	5		ST6170 706 4700 Available to backorder	Covering		£75.90 £63.25
	6		ST9022 313 1400 Available to backorder	Spline screw IS-M6x40		£1.32 £1.10
	7		ST9022 341 1451 Available to backorder	Spline screw IS-M6x55		£1.54 £1.28
	8		ST9074 478 4131 Available to backorder	Screw IS P5x22		£0.88 £0.73
	9		ST9302 929 0500 Available to backorder	Plug cup		£0.56 £0.47
	10		ST6170 706 6205 Available to backorder	Instrument panel		£58.30 £48.58
	11		ST9533 003 9246 Available to backorder	Flange sleeve		£7.26 £6.05
	14		ST9330 630 0180 Available to backorder	Shakeproof washer 8.4		£0.48 £0.40
	15		ST9008 319 1380 Available to backorder	Hexagon head screw M6x35		£1.22 £1.02
	16		ST9064 345 1900 Available to backorder	Countersunk screw M8x40		£1.42 £1.18
	17		ST9212 260 0900 In stock	Hexagon nut M6		£0.48 £0.40
	18		ST9212 260 1100 In stock	Hexagon nut M8		£0.66 £0.55

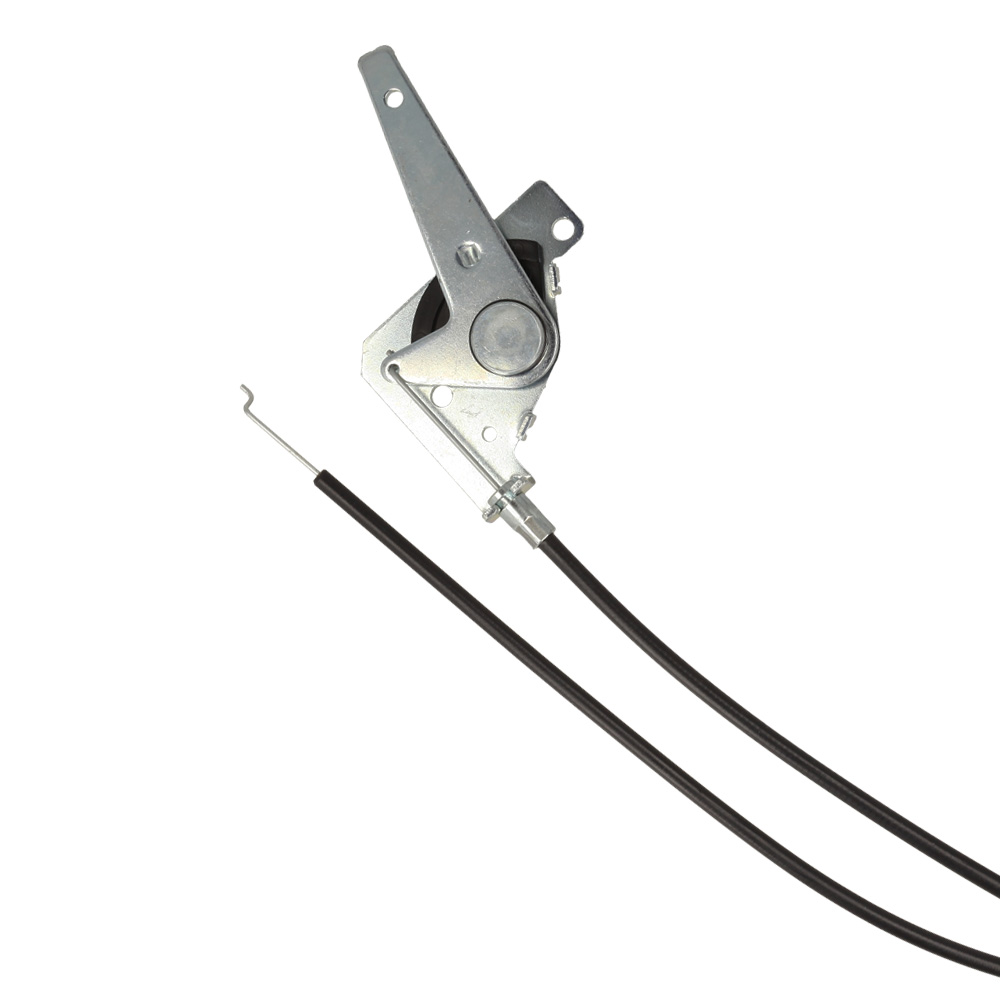

	20		ST6170 180 1140 Available to backorder	Throttle cable		£37.96 £31.63
	21		ST9212 260 0705 In stock	Hexagon nut M5		£0.34 £0.28
	22		ST6170 180 2800 In stock	Handle (Contains 24)		£5.50 £4.58
	23		ST9307 010 0140 Available to backorder	Washer 64		£0.48 £0.40
	24		ST9104 003 3003 Available to backorder	Self-tapping screw 4x12		£0.76 £0.63

Description

Viking MT5097.0 K - Dashboard - Parts Diagram
