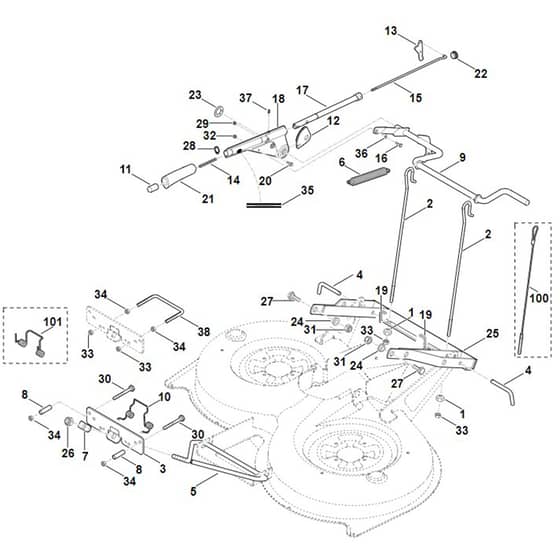

Viking MT5097.0 - Height Adjustment - Parts Diagram

Name: Viking MT5097.0 - Height Adjustment - Parts Diagram
SKU: mt5097_0_height_adjustment-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT5097.0 - Height Adjustment - Parts Diagram

Description

Viking MT5097.0 - Height Adjustment - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6170 703 2000 Available to backorder	Nut	£3.08 £2.57
0	ST6170 700 2900 Available to backorder	Adjusting lever assy. (Contains 11-18+20-22+28+29+32+35-37)	£137.50 £114.58
3	ST6170 763 5425 Available to backorder	Sheet metal holder	£39.82 £33.18
4	ST6170 763 2300 Available to backorder	Detent bolt	£9.58 £7.98
5	ST6160 763 5600 Available to backorder	Pivot	£73.34 £61.12
7	ST6160 763 4100 Available to backorder	Hinge element	£6.04 £5.03
8	ST6170 763 0700 Available to backorder	Distance sleeve	£7.36 £6.13
10	ST6140 703 4930 Available to backorder	Torsion spring	£4.52 £3.77

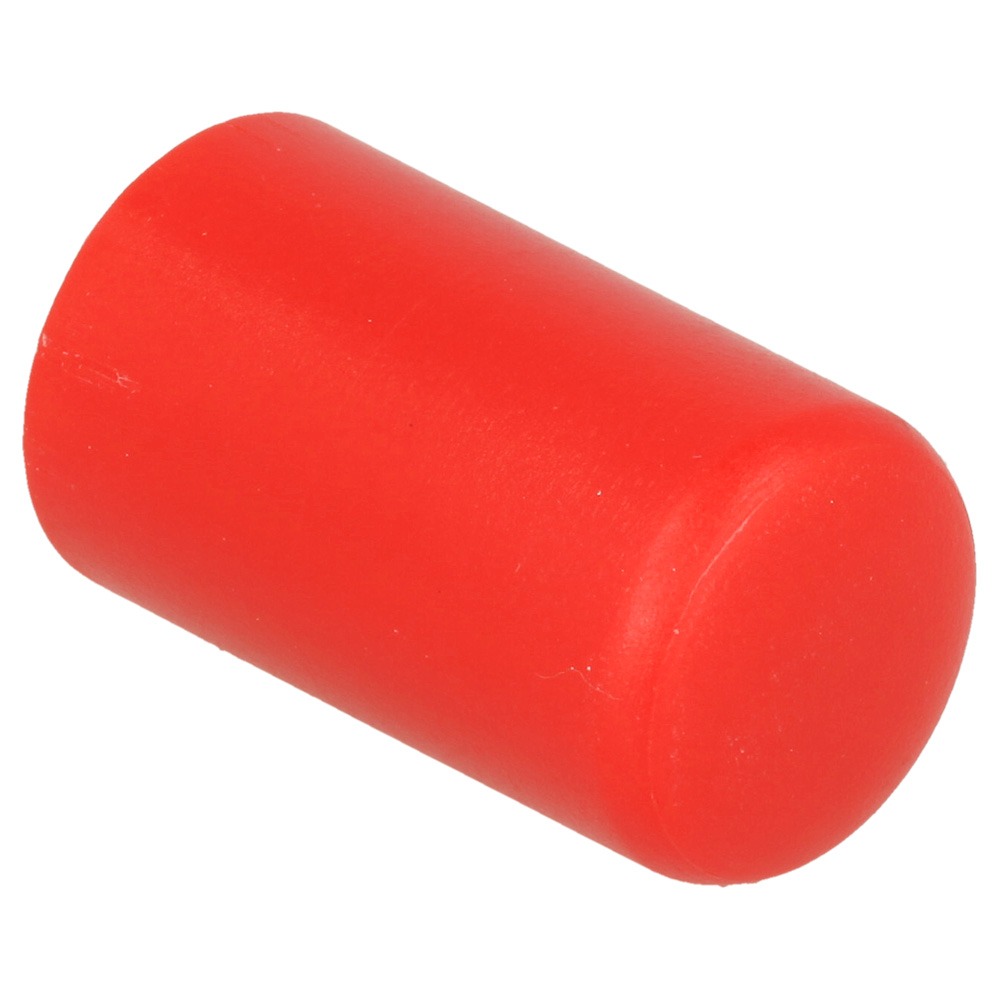

11	ST6170 763 3300 Available to backorder	Button	£3.64 £3.03

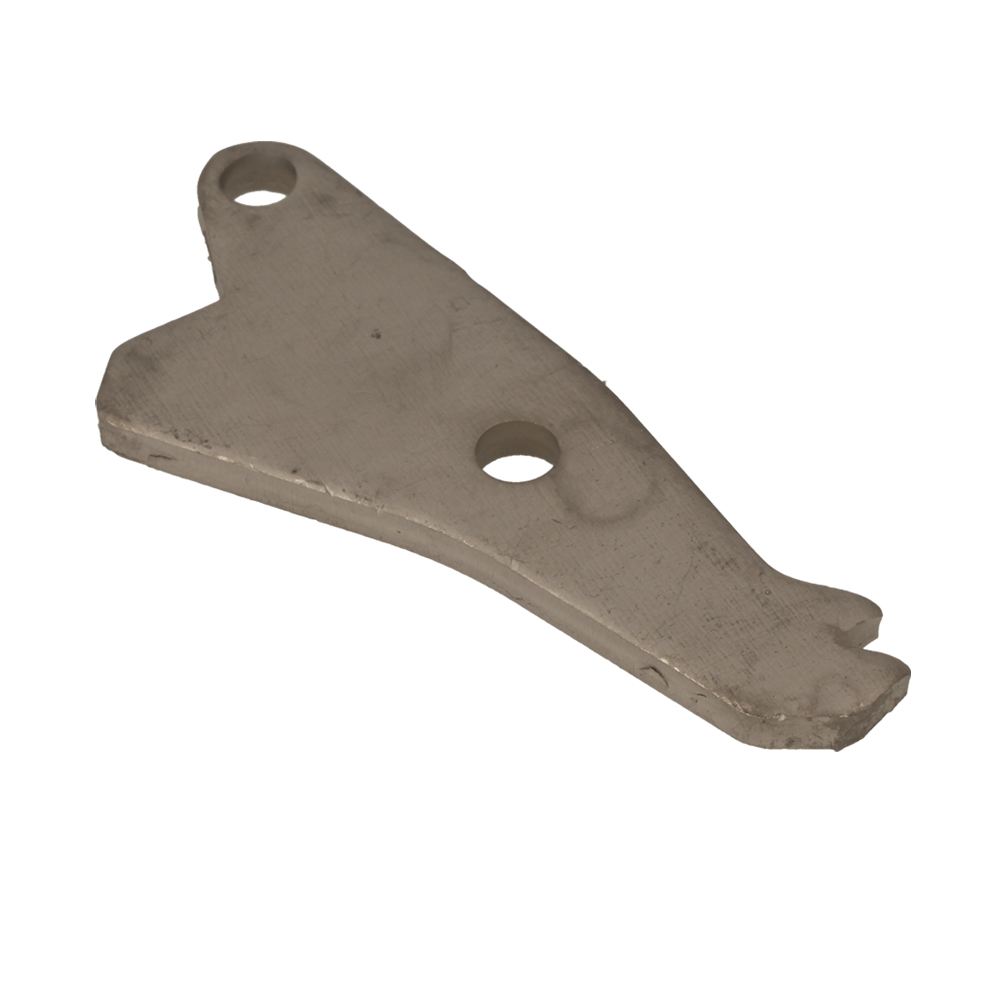

13	ST6170 703 7300 Available to backorder	Pawl	£8.14 £6.78
14	ST6170 703 6430 Available to backorder	Compression spring	£1.66 £1.38
15	ST6170 703 1770 Available to backorder	Rod	£22.66 £18.88
16	ST9008 319 1020 Available to backorder	Hexagon head screw M5x20	£0.88 £0.73
17	ST6170 760 8200 Available to backorder	Tube assy.	£32.74 £27.28
17	ST6170 760 8201 Available to backorder	Tube assy.	£59.40 £49.50
18	ST6170 700 2910 Available to backorder	Adjusting lever	£23.32 £19.43
19	ST6170 763 1000 Available to backorder	Spring clip 28	£2.42 £2.02
20	ST6170 703 9040 Available to backorder	Bolt	£1.00 £0.83
21	ST6170 703 6631 Available to backorder	Knob	£9.58 £7.98
23	ST9417 021 7570 Available to backorder	Quick-fixing device	£1.66 £1.38
25	ST6160 760 7800 Available to backorder	Suspension	£136.40 £113.67
26	ST9212 263 1400 Available to backorder	Hexagon nut M12	£1.22 £1.02
27	ST9008 318 2390 Available to backorder	Hexagon head screw M10x25	£1.32 £1.10
28	ST9455 621 1380 In stock	Circlip 14x1	£0.77 £0.64
29	ST9212 260 0600 Available to backorder	Hexagon nut M4	£0.48 £0.40
30	ST9008 319 1970 Available to backorder	Hexagon head screw M8x60	£1.98 £1.65
31	ST9212 263 1300 Available to backorder	Hexagon nut M10	£0.88 £0.73
32	ST9212 260 0705 In stock	Hexagon nut M5	£0.34 £0.28
33	ST9210 259 1100 Available to backorder	Hexagon nut M8	£0.66 £0.55
34	ST9214 261 1105 In stock	Lock nut M8	£0.48 £0.40
36	ST9307 020 0120 Available to backorder	Washer 53	£0.48 £0.40
37	ST9134 381 0651 Available to backorder	Grub screw M4x10	£0.76 £0.63
37	ST9566 003 1104 Available to backorder	Grub screw M4x9	£4.64 £3.87
38	ST6170 763 0440 Available to backorder	Bow	£11.98 £9.98
100	ST6160 703 1720 Available to backorder	Cable	£34.76 £28.97
