Viking MT5097.0 - Grass Catcher Bag - Parts Diagram

Description

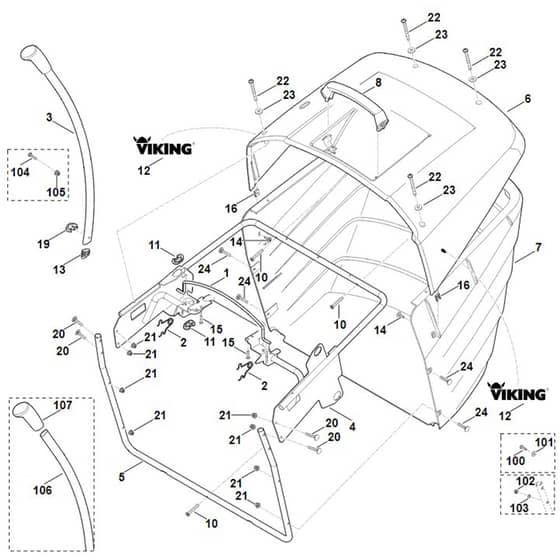

Viking MT5097.0 - Grass Catcher Bag - Parts Diagram

	Part No.	Details
1	ST6170 763 0410 Available to backorder	Bow	£24.00 £20.00
2	ST6170 703 4900 Available to backorder	Torsion spring	£1.72 £1.43
3	ST6140 700 7015 Available to backorder	Lever assy.	£38.59 £32.16
4	ST6160 700 3110 Available to backorder	Frame	£158.40 £132.00
5	ST6160 763 0410 Available to backorder	Bow	£46.78 £38.98
6	ST6160 700 8900 Available to backorder	Cover (Contains 12)	£171.60 £143.00
7	ST6160 703 9601 Available to backorder	Lower part of grass catcher bag	£158.40 £132.00
8	ST6170 791 0200 Available to backorder	Knob	£19.80 £16.50
10	ST9074 477 4704 Available to backorder	Screw IS P6x35	£1.26 £1.05
11	ST6170 763 2200 Available to backorder	Guide piece	£3.86 £3.22
12	ST6170 967 4400 Available to backorder	Sticker VIKING	£2.15 £1.79
13	ST6170 708 5910 Available to backorder	Plug cup	£1.60 £1.33
15	ST9074 478 4131 Available to backorder	Screw IS P5x22	£0.91 £0.76
16	ST9991 003 0712 Available to backorder	Slip-on nut 48	£1.14 £0.95
19	ST6140 703 4000 Available to backorder	Clip	£3.08 £2.57
20	ST9027 068 1380 Available to backorder	Flat head screw M6x35	£1.26 £1.05
22	ST9039 488 1460 Available to backorder	Self-tapping screw M6x65	£1.82 £1.52
23	ST9307 010 0140 Available to backorder	Washer 64	£0.35 £0.29
100	ST9102 090 3781 Available to backorder	Sheet metal screw 4.8 x 16	£0.91 £0.76
101	ST9307 020 0120 Available to backorder	Washer 53	£0.35 £0.29
102	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
103	ST9291 020 0140 Available to backorder	Washer 64	£0.35 £0.29
104	ST9008 318 1350 Available to backorder	Hexagon head screw M6x25	£1.03 £0.86
105	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.68 £0.57
106	ST6170 703 6750 Available to backorder	Lever	£24.91 £20.76
