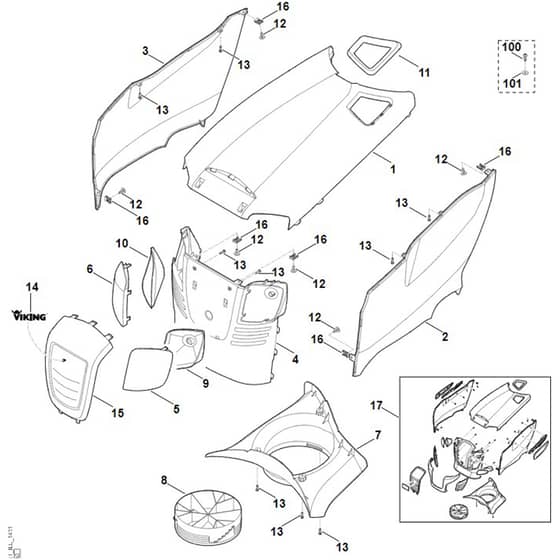

Viking MT5097.0 C - Engine Hood - Parts Diagram

Part No. mt5097_0_c_engine_hood-group

Description

	Part No.	Details
1	ST6170 706 9600 Available to backorder	Engine hood	£66.60 £55.50
2	ST6170 706 9800 Available to backorder	Engine hood side panel left	£49.61 £41.34
3	ST6170 706 9805 Available to backorder	Engine hood side panel right	£47.69 £39.74
4	ST6170 706 9900 Available to backorder	Engine hood front panel	£71.52 £59.60
6	ST6170 405 3205 Available to backorder	Cover right	£25.26 £21.05
7	ST6170 087 3000 Available to backorder	Air guide cowl	£55.76 £46.47
8	ST6170 084 1900 Available to backorder	Air guide ring	£27.54 £22.95
9	ST6170 403 1200 Available to backorder	Reflector left	£23.32 £19.43
10	ST6170 403 1205 Available to backorder	Reflector right	£24.19 £20.16
11	ST6170 352 4000 Available to backorder	Overflow tray	£6.37 £5.31
13	ST9104 003 8734 Available to backorder	Self-tapping screw P4x16	£0.79 £0.66
14	ST6170 967 4420 Available to backorder	Sticker VIKING	£2.15 £1.79
15	ST6170 780 4200 Available to backorder	Panel assy. (Contains 14)	£47.89 £39.91
16	ST9991 003 0712 Available to backorder	Slip-on nut 48	£1.14 £0.95
17	ST6170 007 1060 Available to backorder	Conversion kit (engine hood assembly)	£206.64 £172.20
100	ST9102 090 3781 Available to backorder	Sheet metal screw 4.8 x 16	£0.91 £0.76
101	ST9307 020 0120 Available to backorder	Washer 53	£0.35 £0.29
