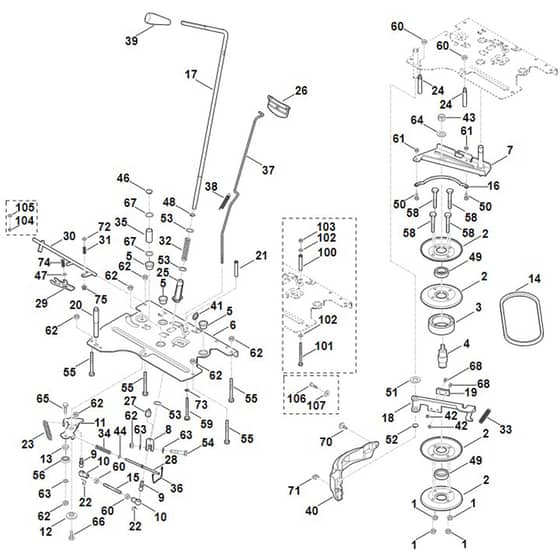

Viking MT5097.0 C - Blade Brake Clutch, Parking Brake - Parts Diagram

Name: Viking MT5097.0 C - Blade Brake Clutch, Parking Brake - Parts Diagram
SKU: mt5097_0_c_blade_brake_clutch_parking_brake-group
Price: 0.28 GBP
Availability: InStock

Part No. mt5097_0_c_blade_brake_clutch_parking_brake-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT5097.0 C - Blade Brake Clutch, Parking Brake - Parts Diagram

Description

Viking MT5097.0 C - Blade Brake Clutch, Parking Brake - Parts Diagram

	Part No.	Details
1	ST9214 261 1105 In stock	Lock nut M8	£0.48 £0.40
2	ST6170 162 4100 Available to backorder	V-belt pulley	£26.05 £21.71
5	ST6170 162 3700 Available to backorder	Bearing bushing	£6.04 £5.03
8	ST6170 162 5010 Available to backorder	Lever	£3.77 £3.14
9	ST9666 003 5110 Available to backorder	Ball stud C13	£4.88 £4.07
10	ST9666 003 7023 Available to backorder	Ball socket B13	£6.25 £5.21
11	ST6170 162 5000 Available to backorder	Lever	£9.46 £7.88
12	ST6170 162 8900 Available to backorder	Washer	£3.64 £3.03
13	ST6170 162 6100 Available to backorder	Sleeve	£3.41 £2.84
14	ST6170 704 2130 Available to backorder	V-belt	£33.24 £27.70
15	ST6170 162 9500 Available to backorder	Threaded rod	£3.19 £2.66
16	ST6170 162 3800 Available to backorder	Belt guide	£23.57 £19.64
17	ST6170 162 9600 Available to backorder	Switch lever	£30.95 £25.79
18	ST6170 162 2500 Available to backorder	Brake lever	£37.66 £31.38
19	ST6170 162 6300 Available to backorder	Brake shoe	£31.99 £26.66
22	ST9666 003 7013 Available to backorder	Circlip	£1.72 £1.43
23	ST6170 162 7900 Available to backorder	Tension spring	£3.08 £2.57
25	ST6170 162 6800 Available to backorder	Bushing	£26.74 £22.28
26	ST6170 706 2200 Available to backorder	Knob	£7.06 £5.88
27	ST6170 162 5220 Available to backorder	Bolt	£1.60 £1.33
28	ST6170 432 2600 Available to backorder	Rod	£5.14 £4.28
31	ST6170 703 6420 Available to backorder	Compression spring	£1.14 £0.95
32	ST6170 162 7700 Available to backorder	Compression spring	£1.72 £1.43
33	ST6170 162 7910 Available to backorder	Tension spring	£2.15 £1.79
34	ST6170 435 8700 Available to backorder	Spring	£1.37 £1.14
35	ST6170 162 9100 Available to backorder	Distance sleeve 16x20x43 mm	£16.74 £13.95
36	ST6170 435 1510 Available to backorder	Bow	£2.40 £2.00
37	ST6170 703 1780 Available to backorder	Rod	£32.77 £27.31
38	ST6170 703 5140 Available to backorder	Tension spring	£1.94 £1.62
39	ST6170 703 6620 Available to backorder	Knob	£13.76 £11.47
40	ST6170 706 0821 Available to backorder	Guard	£7.91 £6.59
41	ST9991 003 0550 Available to backorder	Clamping ring 10x2	£1.72 £1.43
43	ST9212 263 1400 Available to backorder	Hexagon nut M12	£1.26 £1.05
46	ST9455 621 1670 Available to backorder	Circlip 16x1	£0.91 £0.76
47	ST9307 021 0100 Available to backorder	Washer 43	£0.48 £0.40
48	ST9455 621 1130 In stock	Circlip 12x1	£0.68 £0.57
49	ST9503 003 5551 Available to backorder	Deep-groove ball bearing 6005	£10.69 £8.91
50	ST9008 318 1280 Available to backorder	Hexagon head screw M6x16	£0.91 £0.76
52	ST9455 621 1380 In stock	Circlip 14x1	£0.83 £0.69
53	ST9296 021 1280 Available to backorder	Washer 12x18x1	£0.46 £0.38
54	ST9008 318 1900 Available to backorder	Hexagon head screw M8x40	£1.46 £1.22
54	ST9008 319 1880 Available to backorder	Hexagon head screw M8x35	£1.46 £1.22
55	ST9008 319 1990 Available to backorder	Hexagon head screw M8x70	£0.64 £0.53
58	ST9008 319 1930 Available to backorder	Hexagon head screw M8x45	£1.60 £1.33
59	ST9039 488 1460 Available to backorder	Self-tapping screw M6x65	£1.82 £1.52
60	ST9210 259 1100 Available to backorder	Hexagon nut M8	£0.68 £0.57
62	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
63	ST9291 020 0180 Available to backorder	Washer 84	£0.35 £0.29
64	ST9291 020 0220 Available to backorder	Washer 13	£0.46 £0.38
65	ST9008 318 1830 Available to backorder	Hexagon head screw M8x25	£1.26 £1.05
66	ST9008 318 1800 Available to backorder	Hexagon head screw M8x20	£1.03 £0.86
67	ST9296 021 1642 Available to backorder	Shim ring 16x22x1	£0.68 £0.57
68	ST9020 318 0980 Available to backorder	Pan head screw M5x16	£0.91 £0.76
70	ST9039 488 1289 Available to backorder	Self-tapping screw M6x25	£1.03 £0.86
71	ST9460 624 0900 Available to backorder	E-clip 9	£0.35 £0.29
73	ST9330 630 0500 Available to backorder	Shakeproof washer 6.4	£0.35 £0.29
74	ST6170 703 6421 Available to backorder	Compression spring	£1.14 £0.95
75	ST9216 261 0710 Available to backorder	Hexagon nut M5	£0.35 £0.29
102	ST9291 020 0140 Available to backorder	Washer 64	£0.35 £0.29
103	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
104	ST9212 260 0705 In stock	Hexagon nut M5	£0.34 £0.28
105	ST9291 020 0120 Available to backorder	Washer 53	£0.35 £0.29
106	ST9039 499 1285 Available to backorder	Self-tapping screw M6x23	£2.44 £2.03
106	ST9039 488 0996 Available to backorder	Self-tapping screw M6x12	£0.79 £0.66
107	ST9307 021 0140 In stock	Washer 64	£0.34 £0.28
