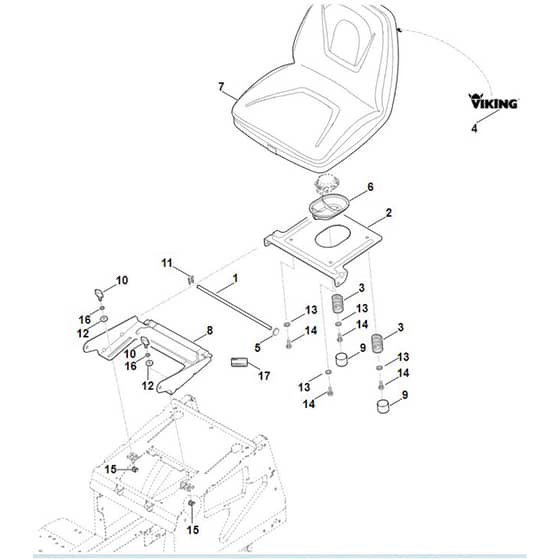

Viking MT4112.1 S - Seat - Parts Diagram

Part No. mt4112_1_s_seat-group

Description

	Part No.	Details
1	ST6170 703 1750 Available to backorder	Rod	£38.59 £32.16
2	ST6170 763 5440 Available to backorder	Sheet metal holder	£55.54 £46.28
3	ST6170 703 6400 Available to backorder	Compression spring	£7.06 £5.88
4	ST6170 967 4460 Available to backorder	Label	£2.15 £1.79
5	ST9417 021 7530 Available to backorder	Quick-fixing device	£1.37 £1.14
6	ST6170 706 0730 Available to backorder	Cover	£5.23 £4.36
6	ST6170 706 0731 Available to backorder	Cover	£5.81 £4.84
7	ST6170 760 0301 Available to backorder	Seat (Contains 4)	£290.40 £242.00
8	ST6165 763 5410 Available to backorder	Sheet metal holder	£53.71 £44.76
9	ST6170 708 7410 Available to backorder	Cap	£2.83 £2.36
10	ST6165 950 5100 Available to backorder	Wing screw M8x20	£4.88 £4.07
11	ST9460 620 8030 Available to backorder	E-clip SL-10	£0.35 £0.29
12	ST9307 021 0180 Available to backorder	Washer 84	£0.35 £0.29
13	ST9291 020 0180 Available to backorder	Washer 84	£0.35 £0.29
14	ST9008 318 1800 Available to backorder	Hexagon head screw M8x20	£1.03 £0.86
15	ST9991 003 1048 Available to backorder	Cage nut M8	£1.94 £1.62
17	ST6165 967 0121 Available to backorder	Model plate MT 4112.1 S	£2.14 £1.78
17	ST0000 967 3453 Available to backorder	Warning sign with machine number	£2.15 £1.79
