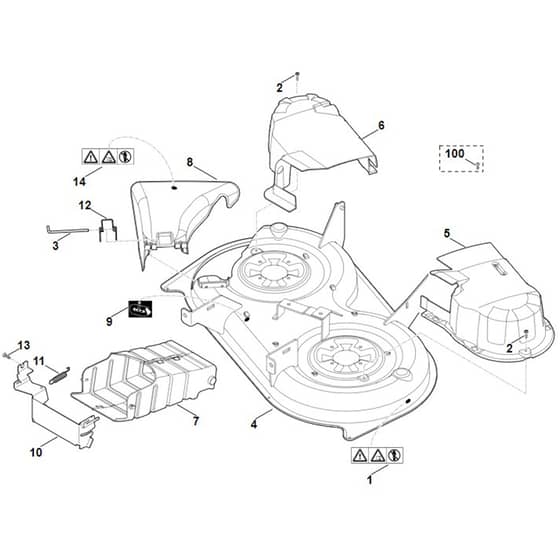

Viking MT4112.1 S - Mowing Deck Housing - Parts Diagram

Description

Viking MT4112.1 S - Mowing Deck Housing - Parts Diagram

	Part No.	Details
-1	ST6165 760 0910 Available to backorder	mowing unit assy. (Contains K 1-9+12+14 + L 1-32)	£854.57 £712.14
1	ST6170 967 4435 Available to backorder	Warning note	£2.15 £1.79
2	ST9039 488 1289 Available to backorder	Self-tapping screw M6x25	£1.03 £0.86
3	ST6165 703 0900 Available to backorder	Axle	£10.01 £8.34
4	ST6165 700 8515 Available to backorder	Housing (Contains 1+9)	£470.45 £392.04
5	ST6165 780 2035 Available to backorder	Cover left	£65.40 £54.50
6	ST6165 780 2040 Available to backorder	Cover right	£66.00 £55.00
7	ST6165 780 2020 Available to backorder	Cover	£63.84 £53.20
8	ST6165 700 2701 In stock	Flap (Contains 14)	£41.72 £34.77
9	ST6165 967 4410 Available to backorder	Label	£2.15 £1.79
10	ST6165 706 8200 Available to backorder	Guard plate	£38.14 £31.78
11	ST6165 703 5130 In stock	Tension spring	£3.06 £2.55
12	ST6165 703 4900 In stock	Torsion spring	£2.15 £1.79
13	ST6165 706 9500 Available to backorder	Screw M6x20	£8.09 £6.74
14	ST6170 967 4436 Available to backorder	Warning note	£2.15 £1.79
100	ST9039 499 1285 Available to backorder	Self-tapping screw M6x23	£2.44 £2.03
