Viking MT4112.1 S - Height Adjustment - Parts Diagram

Description

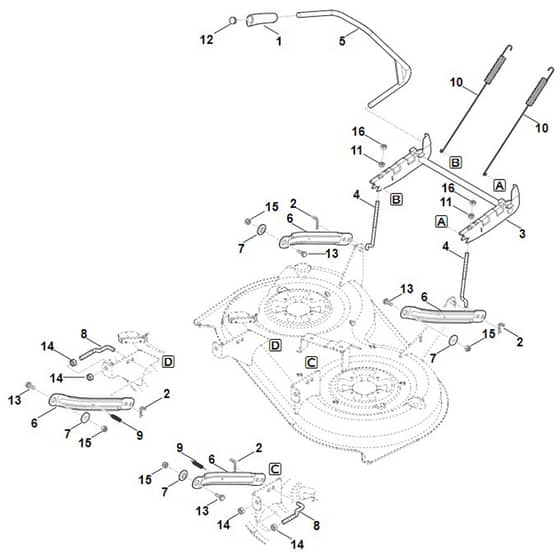

Viking MT4112.1 S - Height Adjustment - Parts Diagram

	Part No.	Details
1	ST6165 703 4100 Available to backorder	Handle	£15.48 £12.90
2	ST6170 763 1000 Available to backorder	Spring clip 28	£2.51 £2.09
3	ST6165 760 7800 Available to backorder	Suspension	£129.84 £108.20
4	ST6165 703 4610 Available to backorder	Threaded rod	£33.00 £27.50
5	ST6165 700 2900 Available to backorder	Adjusting lever	£42.43 £35.36
6	ST6165 763 5600 Available to backorder	Pivot	£41.75 £34.79
7	ST6165 763 3000 Available to backorder	Bearing bushing	£3.19 £2.66
8	ST6165 703 4600 Available to backorder	Threaded rod	£33.00 £27.50
9	ST6165 703 5120 Available to backorder	Tension spring	£2.40 £2.00
10	ST6165 703 5100 Available to backorder	Tension spring	£11.71 £9.76
11	ST6165 703 2000 Available to backorder	Nut	£2.63 £2.19
12	ST6101 703 2800 Available to backorder	Plug	£0.68 £0.57
13	ST9008 318 2390 In stock	Hexagon head screw M10x25	£1.43 £1.19
14	ST9210 261 1400 In stock	Hexagon nut M12	£1.31 £1.09
15	ST9212 263 1300 Available to backorder	Hexagon nut M10	£0.91 £0.76
16	ST9210 261 1300 Available to backorder	Hexagon nut M10	£0.91 £0.76
