Viking MT4112.1 S - Blade Drive - Parts Diagram

Description

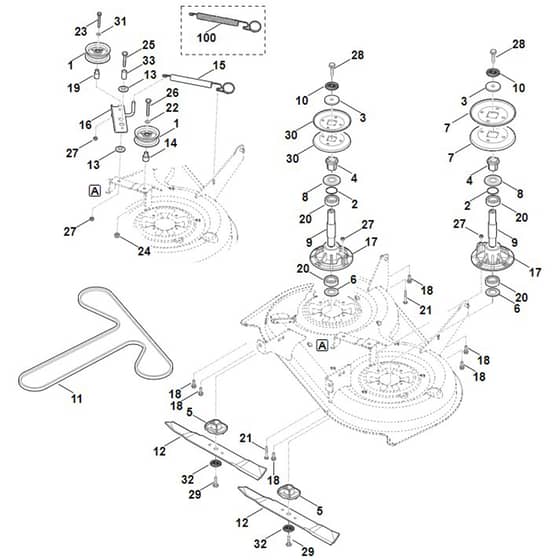

Viking MT4112.1 S - Blade Drive - Parts Diagram

	Part No.	Details
-1	ST6165 700 3510 Available to backorder	Shaft assy. (Contains 2-4+7-10+17+20+28)	£153.96 £128.30
1	ST6165 760 1200 In stock	Pulley	£26.28 £21.90
1	ST6165 700 3500 Available to backorder	Shaft assy. (Contains 2-4+8-10+17+20+28+30)	£152.88 £127.40
2	ST9645 945 7699 In stock	O-ring 23x15	£0.68 £0.57
3	ST6170 702 1800 Available to backorder	Washer	£1.94 £1.62
4	ST6170 702 0600 Available to backorder	Carrier	£11.03 £9.19
5	ST6170 702 3800 In stock	Knife clip	£14.63 £12.19
6	ST6170 702 2200 In stock	Protection disk	£3.20 £2.67
7	ST6165 764 8400 Available to backorder	V-belt pulley half	£27.41 £22.84
8	ST6170 702 2210 Available to backorder	Protection disk	£5.14 £4.28
9	ST6170 702 0710 Available to backorder	Shaft	£69.84 £58.20
10	ST0000 702 6600 In stock	Washer	£4.48 £3.73
11	ST6165 704 2110 Available to backorder	V-belt	£49.87 £41.56
12	ST6165 702 0110 In stock	Blade	£56.44 £47.03
13	ST6165 763 3000 Available to backorder	Bearing bushing	£3.19 £2.66
14	ST6165 764 2840 Available to backorder	Distance sleeve	£12.97 £10.81
16	ST6165 760 0800 Available to backorder	Clamping arm	£27.08 £22.57
17	ST6170 702 6910 In stock	Bearing bracket	£93.36 £77.80
18	ST9039 488 1839 Available to backorder	Self-tapping screw M8x25	£1.26 £1.05
19	ST6165 764 2830 Available to backorder	Distance sleeve	£13.66 £11.38
20	ST9503 003 6841 In stock	Grooved ball bearing 6205-2RS	£15.10 £12.58
21	ST9008 319 1950 Available to backorder	Hexagon head screw M8x50	£1.82 £1.52
22	ST6165 958 0200 Available to backorder	Washer 105x30x5	£4.68 £3.90
23	ST9008 319 1960 Available to backorder	Hexagon head screw M8x55	£1.94 £1.62
24	ST9212 263 1300 Available to backorder	Hexagon nut M10	£0.91 £0.76
25	ST9007 318 2500 Available to backorder	Hexagon head screw M10x70	£2.63 £2.19
26	ST9008 319 2480 Available to backorder	Hexagon head screw M10x60	£2.40 £2.00
27	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
28	ST9010 345 2431 In stock	Hexagon head screw M10x1x35	£1.66 £1.38
30	ST6160 764 8400 Available to backorder	V-belt pulley half	£25.16 £20.97
31	ST9289 003 0190 In stock	Washer 9	£0.35 £0.29
33	ST6165 702 4400 Available to backorder	Distance sleeve	£12.74 £10.62
100	ST6165 780 1200 Available to backorder	Tension spring	£33.12 £27.60
