Viking MT4112.0 S - Mowing Deck Housing - Parts Diagram

Name: Viking MT4112.0 S - Mowing Deck Housing - Parts Diagram
SKU: mt4112_0_s_mowing_deck_housing-group
Price: 0.83 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT4112.0 S - Mowing Deck Housing - Parts Diagram

Description

Viking MT4112.0 S - Mowing Deck Housing - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	ST6165 760 0910 Available to backorder	mowing unit assy. (Contains K 1-9+12+14 + L 1-32)	£949.20 £791.00
1	ST6170 967 4435 Available to backorder	Warning note	£2.08 £1.73
2	ST9039 488 1289 Available to backorder	Self-tapping screw M6x25	£1.00 £0.83
3	ST6165 703 0900 Available to backorder	Axle	£9.68 £8.07
4	ST6165 700 8515 Available to backorder	Housing (Contains 1+9)	£523.20 £436.00
5	ST6165 780 2035 Available to backorder	Cover left	£65.44 £54.53
6	ST6165 780 2040 Available to backorder	Cover right	£66.00 £55.00
7	ST6165 780 2020 Available to backorder	Cover	£63.80 £53.17

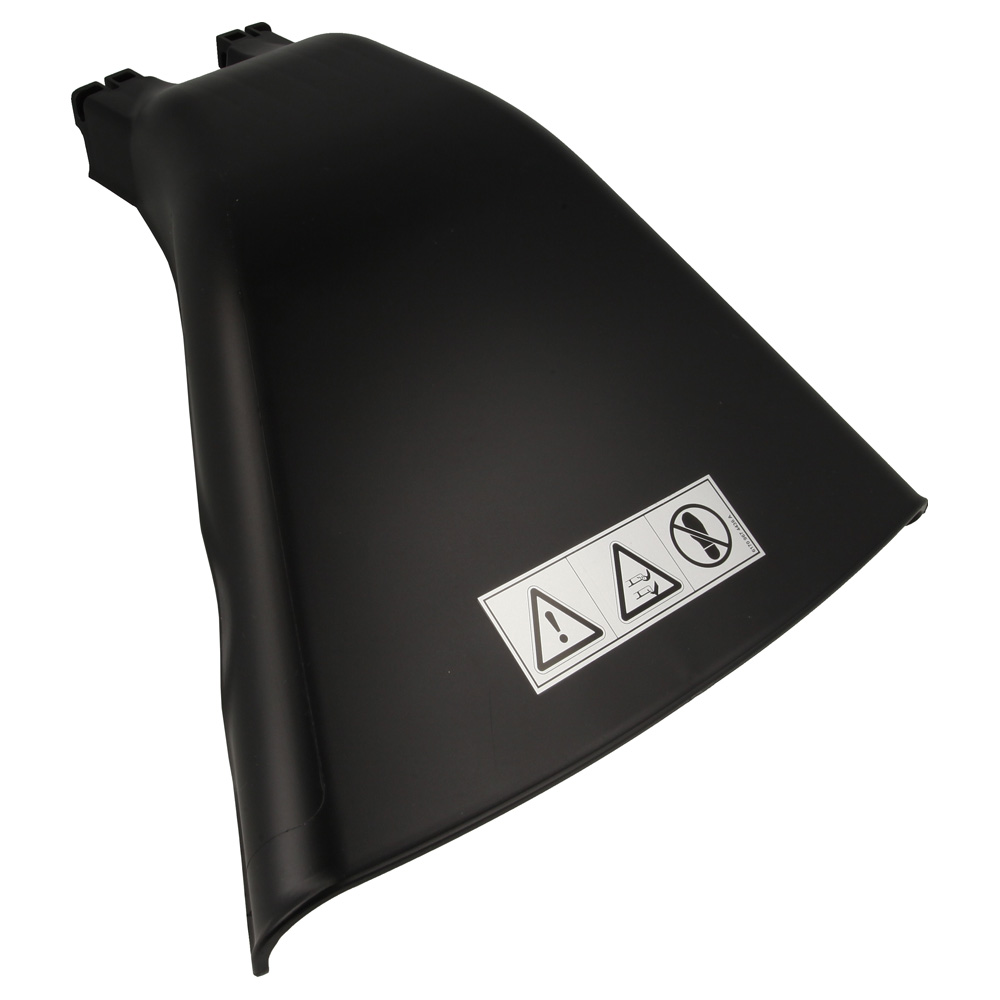

8	ST6165 700 2701 Available to backorder	Flap (Contains 14)	£38.94 £32.45
9	ST6165 967 4410 Available to backorder	Label	£2.08 £1.73
10	ST6165 706 8200 Available to backorder	Guard plate	£36.86 £30.72
11	ST6165 703 5130 Available to backorder	Tension spring	£2.78 £2.32
12	ST6165 703 4900 Available to backorder	Torsion spring	£2.08 £1.73
13	ST6165 706 9500 Available to backorder	Screw M6x20	£7.82 £6.52
14	ST6170 967 4436 Available to backorder	Warning note	£2.08 £1.73
100	ST9039 499 1285 Available to backorder	Self-tapping screw M6x23	£2.36 £1.97
