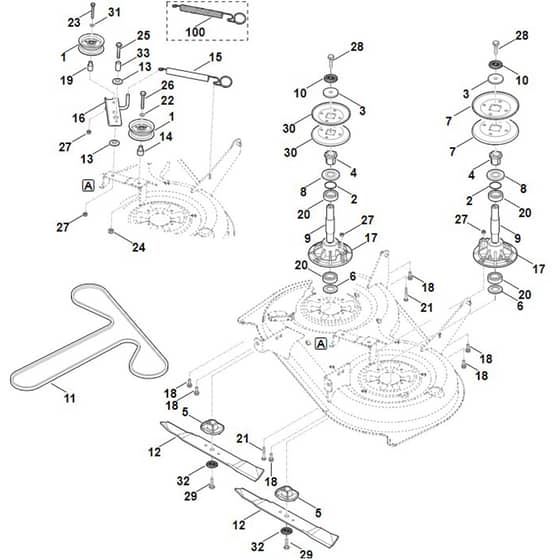

Viking MT4097.0 SX - Blade Drive - Parts Diagram

Name: Viking MT4097.0 SX - Blade Drive - Parts Diagram
SKU: mt4097_0_sx_blade_drive-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MT4097.0 SX - Blade Drive - Parts Diagram

Description

Viking MT4097.0 SX - Blade Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6165 760 1200 Available to backorder	Pulley	£24.52 £20.43
0	ST6165 700 3510 Available to backorder	Shaft assy. (Contains 2-4+7-10+17+20+28)	£154.00 £128.33
1	ST6165 700 3500 Available to backorder	Shaft assy. (Contains 2-4+8-10+17+20+28+30)	£152.90 £127.42
2	ST9645 945 7699 Available to backorder	O-ring 23x15	£0.66 £0.55
3	ST6170 702 1800 Available to backorder	Washer	£1.88 £1.57
4	ST6170 702 0600 Available to backorder	Carrier	£10.66 £8.88
5	ST6170 702 3800 In stock	Knife clip	£13.64 £11.37
6	ST6170 702 2200 In stock	Protection disk	£2.98 £2.48
7	ST6165 764 8400 In stock	V-belt pulley half	£26.50 £22.08
8	ST6170 702 2210 Available to backorder	Protection disk	£4.96 £4.13
9	ST6170 702 0710 Available to backorder	Shaft	£69.86 £58.22
10	ST0000 702 6600 In stock	Washer	£4.18 £3.48
11	ST6165 704 2100 Available to backorder	V-belt	£44.56 £37.13
12	ST6165 702 0100 In stock	Blade	£47.74 £39.78
13	ST6165 763 3000 Available to backorder	Bearing bushing	£3.08 £2.57
14	ST6165 764 2840 Available to backorder	Distance sleeve	£12.54 £10.45
16	ST6165 760 0800 Available to backorder	Clamping arm	£29.08 £24.23
17	ST6170 702 6910 Available to backorder	Bearing bracket	£90.20 £75.17
18	ST9039 488 1839 Available to backorder	Self-tapping screw M8x25	£1.22 £1.02
19	ST6165 764 2830 Available to backorder	Distance sleeve	£13.20 £11.00
20	ST9503 003 6841 Available to backorder	Grooved ball bearing 6205-2RS	£14.08 £11.73
21	ST9008 319 1950 Available to backorder	Hexagon head screw M8x50	£1.76 £1.47
22	ST6165 958 0200 Available to backorder	Washer 105x30x5	£4.52 £3.77
23	ST9008 319 1960 Available to backorder	Hexagon head screw M8x55	£1.88 £1.57
24	ST9212 263 1300 Available to backorder	Hexagon nut M10	£0.88 £0.73
25	ST9007 318 2500 Available to backorder	Hexagon head screw M10x70	£2.54 £2.12
26	ST9008 319 2480 Available to backorder	Hexagon head screw M10x60	£2.32 £1.93
27	ST9212 260 1100 In stock	Hexagon nut M8	£0.66 £0.55
28	ST9010 345 2431 In stock	Hexagon head screw M10x1x35	£1.54 £1.28
30	ST6160 764 8400 Available to backorder	V-belt pulley half	£24.32 £20.27
31	ST9289 003 0190 Available to backorder	Washer 9	£0.48 £0.40
33	ST6165 702 4400 Available to backorder	Distance sleeve	£12.32 £10.27
100	ST6165 780 1200 Available to backorder	Tension spring	£32.02 £26.68
100	ST6165 764 1600 Available to backorder	Tension spring	£20.56 £17.13
