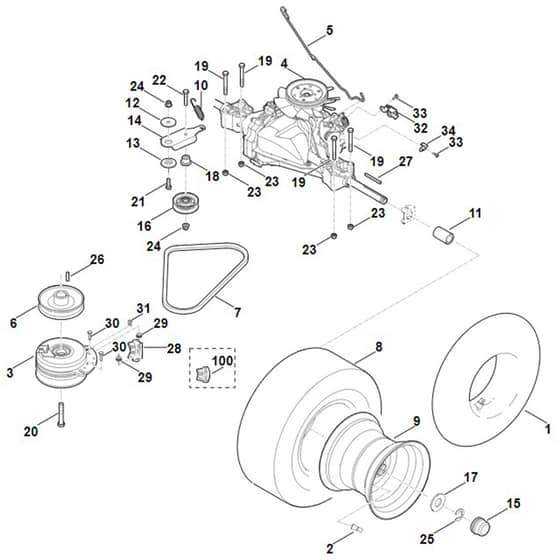

Viking MR4082.2 - Gearbox, Rear Wheel - Parts Diagram

Name: Viking MR4082.2 - Gearbox, Rear Wheel - Parts Diagram
SKU: mr4082_2_gearbox_rear_wheel-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MR4082.2 - Gearbox, Rear Wheel - Parts Diagram

Description

Viking MR4082.2 - Gearbox, Rear Wheel - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	ST6140 700 0410 Available to backorder	Wheel assy. 16" (Contains 2+8+9)	£118.80 £99.00
1	ST6152 704 6700 Available to backorder	Hose 16x65	£29.60 £24.67
2	ST0000 731 7700 Available to backorder	Valve	£7.70 £6.42

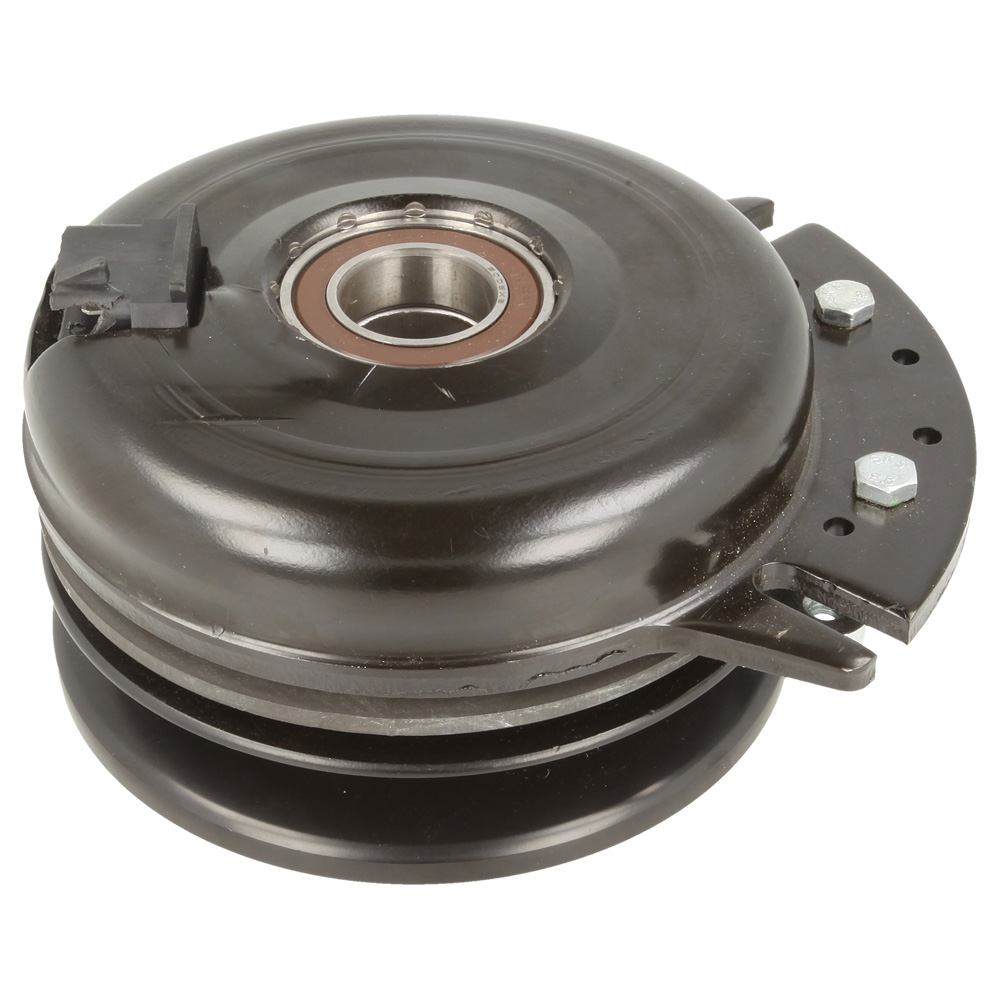

3	ST6140 160 2002 Available to backorder	Blade clutch (Contains 28+29+30)	£248.77 £207.31
4	ST6140 640 0100 Available to backorder	T2-BDBF-2x3C-1Nx1	£888.00 £740.00
5	ST6140 647 3501 Available to backorder	Lever	£22.44 £18.70
6	ST6140 700 2530 Available to backorder	V-belt pulley	£85.80 £71.50
7	ST6140 704 2101 Available to backorder	V-belt	£24.64 £20.53
8	ST6140 704 9500 Available to backorder	Tyre 16x6.5-8	£99.00 £82.50
9	ST6140 760 3900 Available to backorder	Rim	£89.10 £74.25
10	ST6140 764 1601 Available to backorder	Tension spring	£3.08 £2.57
11	ST6140 764 2800 Available to backorder	Distance sleeve	£5.94 £4.95
12	ST6140 958 0200 Available to backorder	Washer	£3.52 £2.93
13	ST6170 703 1920 Available to backorder	Collar bearing	£3.74 £3.12
14	ST6170 704 2200 Available to backorder	Bolt lever	£16.40 £13.67
15	ST6170 708 7420 Available to backorder	Cap	£4.30 £3.58
16	ST6170 007 1003 In stock	Conversion kit (idler wheel)	£43.66 £36.38
17	ST6170 763 0910 Available to backorder	Washer 42	£4.72 £3.93
18	ST6170 764 2801 Available to backorder	Distance sleeve	£5.28 £4.40
19	ST9007 318 1980 Available to backorder	Hexagon head screw M8x65	£1.98 £1.65
20	ST9007 345 9236 Available to backorder	Hexagon head screw 7/16"x21/2"	£8.80 £7.33
21	ST9008 318 1830 Available to backorder	Hexagon head screw M8x25	£1.22 £1.02
22	ST9008 318 1900 Available to backorder	Hexagon head screw M8x40	£1.42 £1.18
23	ST9212 260 1100 In stock	Hexagon nut M8	£0.66 £0.55
24	ST9216 261 1100 Available to backorder	Hexagon nut M8	£0.76 £0.63
25	ST9460 624 1500 Available to backorder	E-clip 15	£0.48 £0.40
26	ST9471 435 1602 Available to backorder	Key B1/4"SQx1"	£2.32 £1.93
27	ST9471 435 1622 Available to backorder	Key 3/16"SQx21/4"	£2.42 £2.02
31	ST6140 162 4500 Available to backorder	Clip	£1.98 £1.65
32	ST6170 403 2310 Available to backorder	Support	£4.30 £3.58
33	ST9039 488 0958 In stock	Self-tapping screw M5x10	£0.76 £0.63
34	ST6170 647 1100 Available to backorder	Angle piece	£1.66 £1.38
100	ST6140 007 1800 Available to backorder	Repair kit (brake lining) (Contains 29+30)	£70.40 £58.67
