Viking MR4082.2 - Engine, Tank - Parts Diagram

Description

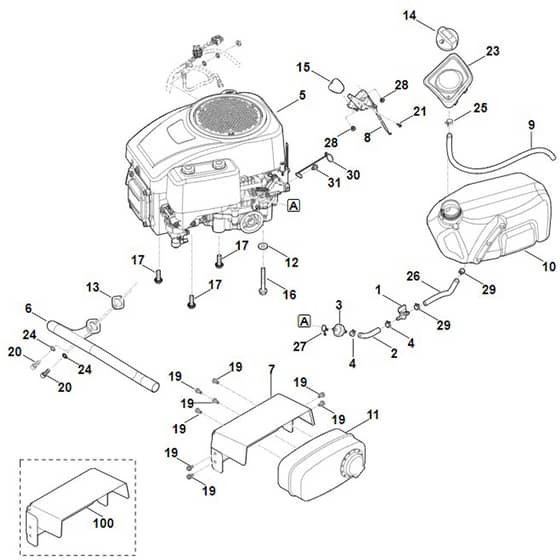

Viking MR4082.2 - Engine, Tank - Parts Diagram

	Part No.	Details
1	ST0000 350 1000 Available to backorder	Fuel cock	£10.24 £8.53
2	ST0000 358 0808 Available to backorder	Fuel hose	£13.76 £11.47
3	ST0004 350 1800 In stock	Fuel filter	£2.94 £2.45
6	ST6140 140 2520 Available to backorder	Manifold	£71.52 £59.60
7	ST6140 145 3711 Available to backorder	Guard plate	£55.99 £46.66
8	ST6140 180 1101 Available to backorder	Throttle cable	£39.95 £33.29
9	ST6140 350 2720 Available to backorder	Fuel hose	£19.34 £16.12
10	ST6140 350 0400 Available to backorder	Fuel tank (Contains 26+29)	£144.12 £120.10
11	ST6140 140 0600 Available to backorder	Muffler	£107.76 £89.80
11	ST6140 007 1005 Available to backorder	Muffler set	£107.76 £89.80
12	ST9309 021 0200 Available to backorder	Washer 10.5	£0.46 £0.38

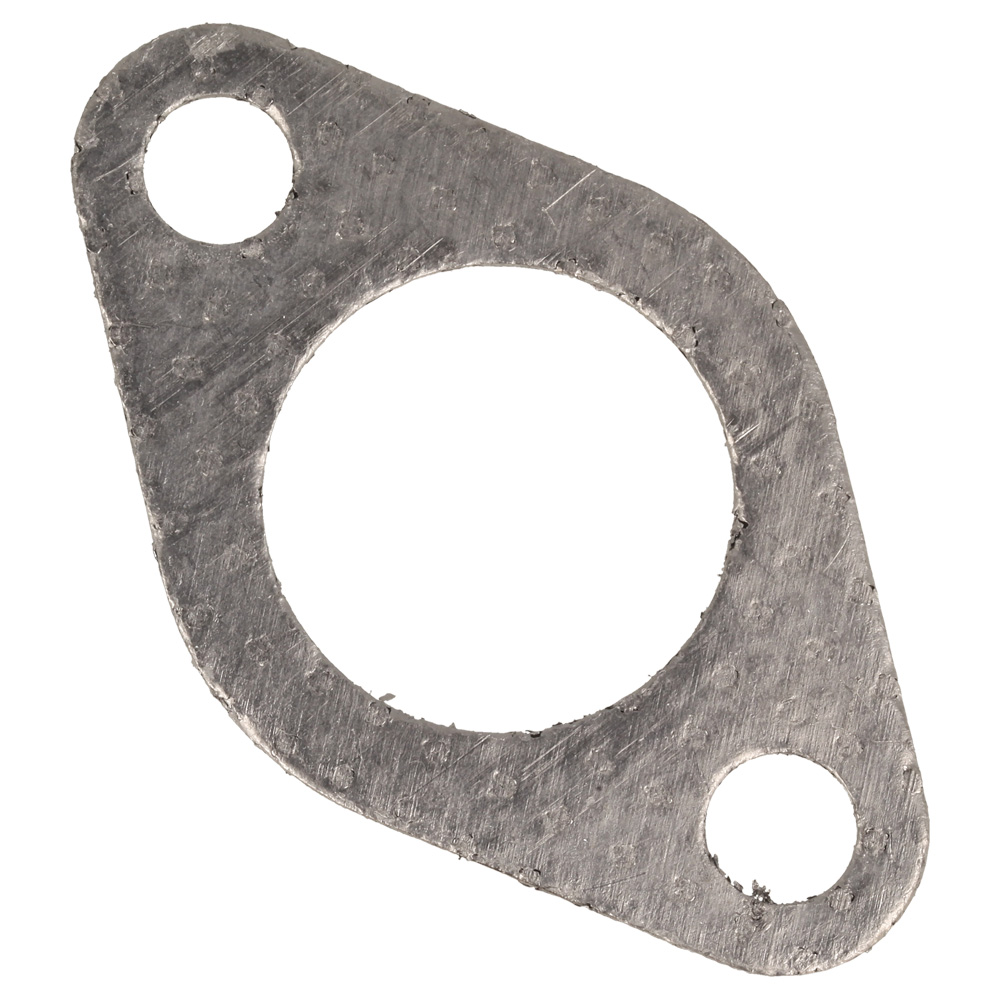

13	ST6140 149 0600 Available to backorder	Muffler gasket	£2.96 £2.47
14	ST6140 350 1501 Available to backorder	Filler cap	£8.77 £7.31
15	ST6170 180 2800 In stock	Handle (Contains 21)	£5.89 £4.91
16	ST9018 318 2511 Available to backorder	Hexagon head screw M10x75	£2.74 £2.28
17	ST9018 318 2410 Available to backorder	Hexagon head screw M10x30	£1.46 £1.22
19	ST9039 488 0996 Available to backorder	Self-tapping screw M6x12	£0.79 £0.66
20	ST9045 319 1795 Available to backorder	Pan head screw 5/16"x3/4"	£1.03 £0.86
21	ST9104 003 3003 Available to backorder	Self-tapping screw 4x12	£0.79 £0.66
23	ST6140 760 7400 Available to backorder	Insert (Contains 9+25)	£8.09 £6.74
24	ST9460 624 4030 Available to backorder	E-clip 8.4	£0.35 £0.29
25	ST0000 988 9100 Available to backorder	Hose clip	£2.28 £1.90
27	ST0004 358 7901 Available to backorder	Hose clip	£2.28 £1.90
28	ST9039 488 0950 Available to backorder	Self-tapping screw M5x8	£0.79 £0.66
30	ST6140 182 4010 Available to backorder	Throttle cable bracket	£3.08 £2.57
31	ST9018 318 1250 Available to backorder	Hexagon head screw M6x10	£0.79 £0.66
100	ST6140 145 3710 Available to backorder	Guard plate	£50.26 £41.88
